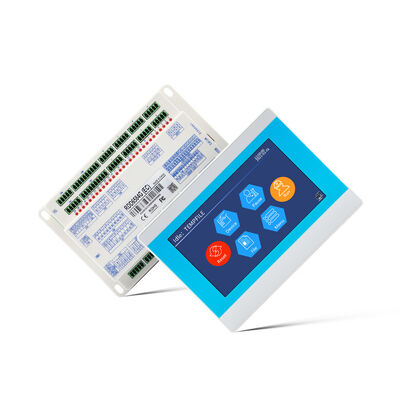

Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller

Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller
Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller

Large Image :  Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE, RoHS, FCC
Model Number: RDD6584G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller

Description
Model: Ordinary Single Beam Track Model Axes: 8
Input And Output: 32/28 Communication Interface: Ethernet, USB And WIFI (optional)
Panel: 7''touch Screen, Support Parameter Modification, Static Preview And Dynamic Display Of Graphics Tool: Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning
Feeding: Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously Encryption: Support
Onboard Clock: Support Software: VCutWorks
Highlight:

Single Track Oscillating Knife Cutting Controller

,

Oscillating Knife Cutting Controller RDD6584G

,

8 Axis Cutting Controller

Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller

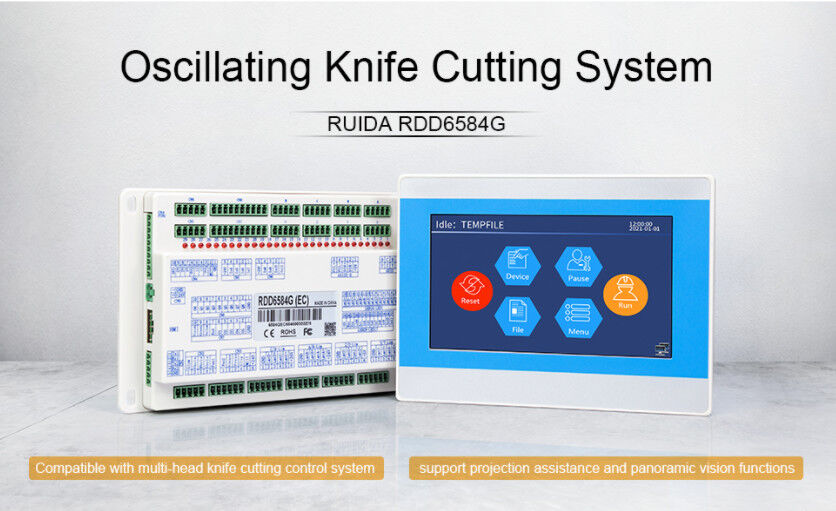

Description Of Ruida Controller RDD6584G
The RDD6584G is an advanced cutting tool controller designed for enhanced versatility and precision in various processing applications. Cutting edge following control ensures that the cutting tool accurately follows the designated path, improving precision in cutting operations. Integrated tool processing supports a variety of tools, including vibrating cutters, circular cutters, milling cutters, and rollers. Feeding mechanisms efficiently handle material feeding during operations.
Parameter RDD6584G
Model Ordinary single track model
Axes Eight
Input and output 32/28
Communication Ethernet, USB and WIFI
Panel 7'' touch screen, support parameter modification, static preview and dynamic display of graphics
Tool Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera None
Light source system None
Cutting Ordinary cutting
Encryption Support
Onboard clock Support
Firmware Remote upgrade of panel and mainboard program
Software VCutWorks
Operating system Win7, Win8, Win10, 32-bit or 64-bit
Language 15 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian and Polish
Size Panel: L203.5mm*W149.5mm*H39mm Mainboard: L212mm*W136mm*H33mm
Accessories Wireless handheld box, RD-APP and RD-WIFI
Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 0

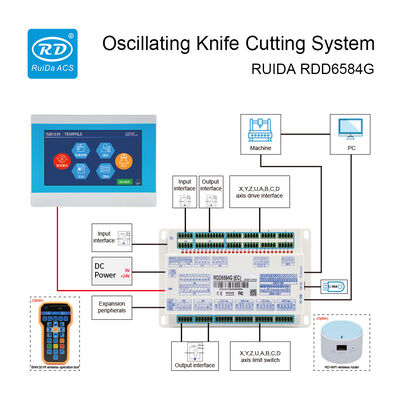

Key Functions
  • High Response Tool Direction Control: Provides swift and accurate following of the tool direction, enabling multiple processing methods for diverse applications.
  • Integrated Processing Methods: Supports various tools and techniques, including vibration knife, round knife, milling cutter, press wheel, round punching, V-Shaped punching, brush processing, red light positioning for accurate setup and alignment.
  • Flexible Processing Support: Single XY axis processing allows for straightforward operations. Double XY axes asynchronous processing enhances productivity by enabling independent movement of axes. Double tool heads synchronous processing facilitates simultaneous operations for increased efficiency.
  • Advanced Cutting Techniques: Supports Mark point positioning cutting, large-format panoramic visual cutting and projection cutting.
Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 1
Application Fields
Focus on soft material cutting industry, it is suitable for fabric, advertising, 3C and other processing fields.
Software VCutWorks (Free)
Support PLT, DXF, AI, DST and other file formats import, display and edit functions, support image file import and processing.
Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 2 Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 3 Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 4 Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 5
Product Certification
All products are certified with CE, RoHS, and FCC standards, ensuring compliance with safety production regulations. These certifications indicate that the products meet stringent safety, health, and environmental protection requirements, making them suitable for use in various applications while prioritizing user safety and environmental responsibility.
Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 6
Package List
Panel, Mainboard, Adapter & Screws, USB cable, Network cable, USB adapter cable, Five-core cable
Ruida Single Track Oscillating Knife Cutting Controller RDD6584G 8 Axis Cutting Controller 7
