Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G

Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G
Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G

Large Image :  Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE, RoHS, FCC
Model Number: RDD6584G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G

Description
Model: Ordinary Single Track Axes: 8
Input And Output: 32/28 Firmware: Remote Upgrade Of Panel And Mainboard Program
Panel: 7''touch Screen, Support Parameter Modification, Static Preview And Dynamic Display Of Graphics Tool: Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning
Feeding: Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously Encryption: Support
Software: VCutWorks Size: Panel: L203.5mm*W149.5mm*H39mm Mainboard: L212mm*W136mm*H33mm
Accessories: Wireless Handheld Box, RD-APP And RD-WIFI
Highlight:

Ruida RDD6584G

,

Single Track Knife Cutting Controller

,

Ruida Knife Cutting Controller

Ruida Controller RDD6584G Single Track Oscillating Knife Cutting Controller

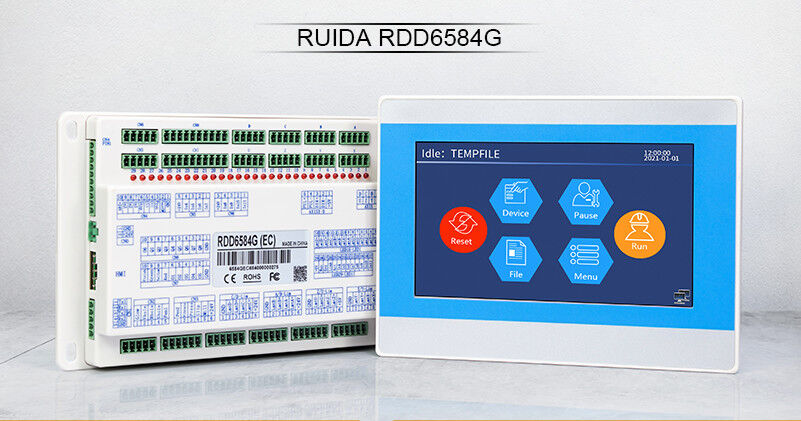

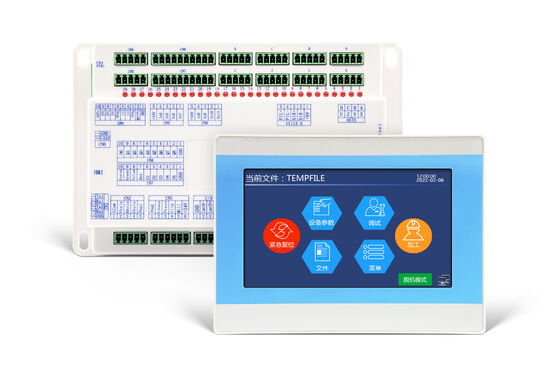

RDD6584G is a knife cutting controller independently developed by Ruida Technology with the function of tool direction following control. It integrates the processing of vibrating knives, circular knives, milling cutters, pressure wheels and other tools, as well as a series of functions such as feeding, circular punching, V-shaped special punching, brush processing, and red light positioning.
Parameter RDD6584G
Model Ordinary single track
Axes Eight

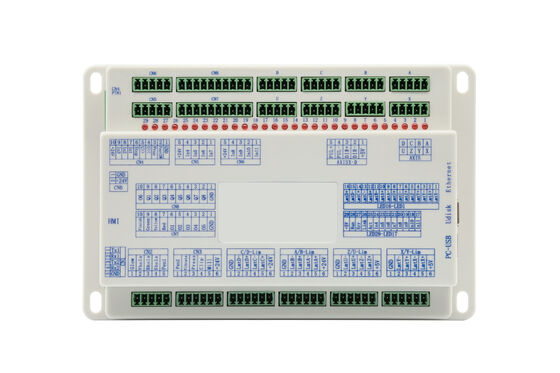

Input and output 32/28
Communication Ethernet, USB and WIFI

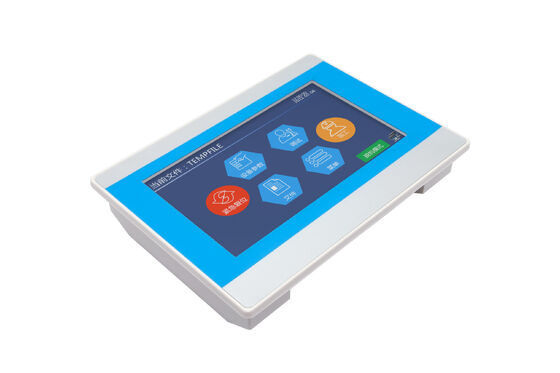

Panel Seven-inch touch screen, support parameter modification, static preview and dynamic display of graphics
Tool Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera None
Light source system None
Cutting Ordinary cutting
Installation Encryption Support
Onboard clock Support
Firmware upgrade Remote upgrade of panel and mainboard program
Software VCutWorks
Operating system Win7, Win8, Win10, 32-bit or 64-bit
Language 15 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian and Polish
Size Panel: L203.5mm*W149.5mm*H39mm Mainboard: L212mm*W136mm*H33mm
Accessory Wireless handheld box, RD-APP and RD-WIFI
Key Functions
  • Standalone operation, 256M memory onboard
  • Support USB/Ethernet communication and U disk
  • High-response of the tool direction following control
  • Support 8 axes, 16 dedicated/general inputs and 28 general outputs
  • 7" industrial touch screen, support parameter modification, graphic static preview and dynamic display
  • Integrate multiple processing methods such as vibrating knife, round knife, milling cutter, pressing wheel, circular punching, V-shaped special punching, brush processing, and red-light positioning
  • Support single XY axis processing, double XY asynchronous processing, and double head shifting processing. Support MARK point visual positioning cutting, large-format panoramic visual cutting, projection cutting, etc.
Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 0
Application Fields
The RDD6584G cutting tool controller is specifically designed for the soft material cutting industry, making it ideal for various applications, including:
  • Fabric Cutting: Efficiently processes textiles for fashion, upholstery, and other fabric-related industries
  • Advertising Materials: Perfect for cutting vinyl, banners, and other promotional materials, ensuring precise designs and shapes
  • 3C Processing: Suitable for cutting materials used in the consumer electronics sector, such as foams and soft plastics
Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 1
Software VCutWorks (Free)
Support PLT, DXF, AI, DST and other file formats import, display and edit functions, support image file import and processing
Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 2 Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 3 Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 4 Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 5
Product Certification
All products are certified with CE, RoHS, and FCC standards, ensuring compliance with safety production regulations. These certifications indicate that the products meet stringent safety, health, and environmental protection requirements, making them suitable for use in various applications while prioritizing user safety and environmental responsibility.
Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 6
Package List
Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 7
Shipping and Payment
Ordinary Single Track Oscillating Knife Cutter Controller Ruida Controller RDD6584G 8
