Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET

Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET

Large Image :  Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE, FCC, RoHS
Model Number: RDD6584V-NET
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET

Description
Model: Mark Point Vision Positioning Cutting Model Axes: Eight
Input And Output: 32/28 Installment Encryption: Support
Onboard Clock: Support Firmware Upgrade: Remote Upgrade Of Panel And Mainboard Program
Feeding: Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously Camera: Network Interface Camera, 1.3 And 5 Megapixels Are Available
Light Source System: Red And White Light Source Are Available Cutting Function: Mark Point Vision Positioning Cutting
Highlight:

Oscillating Knife Cutting Controller Ruida

,

Vision Oscillating Knife Cutting Controller

,

Ruida RDD6584V-NET

Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET
Product Description

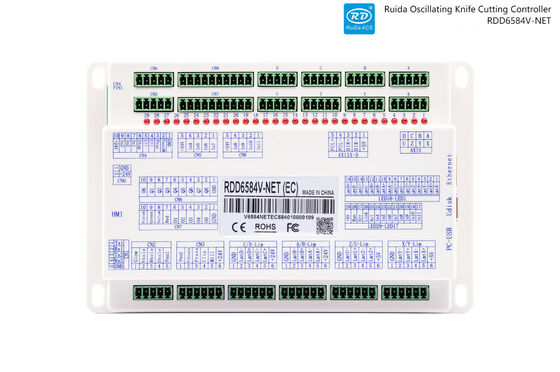

The RDD6584V-NET is a knife cutting controller with tool direction following control, developed by Ruida Technology. It integrates processing for vibrating knives, circular knives, milling cutters, pressure wheels and other tools, along with feeding, circular punching, V-shaped special punching, brush processing, and red light positioning functions.

Product Specifications
Attribute Value
Model Mark point vision positioning cutting model
Axes Eight
Input and output 32/28
Installment encryption Support
Onboard clock Support
Firmware upgrade Remote upgrade of panel and mainboard program
Feeding Support X/Y/U axis feeding independently or Y and U axes feeding synchronously

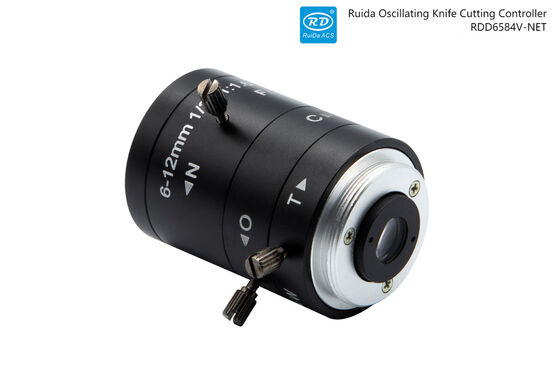

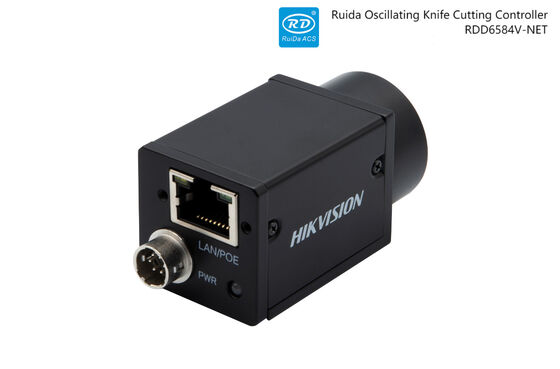

Camera Network interface camera, 1.3 and 5 megapixels are available
Light source system Red and white light source are available
Cutting function Mark point vision positioning cutting
Key Features
  • Cutting Edge Following Control: Adapts to various cutting tools for optimal performance
  • Tool Compatibility: Supports vibrating cutters, circular cutters, milling cutters, and rollers
  • Integrated Functions: Combines multiple processing capabilities including:
    • Automated feeding mechanisms
    • Precision circular punching
    • V-Shaped special punching
    • Surface brush processing

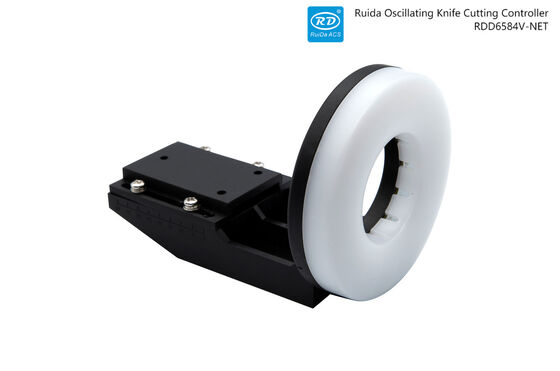

    • Red light positioning system

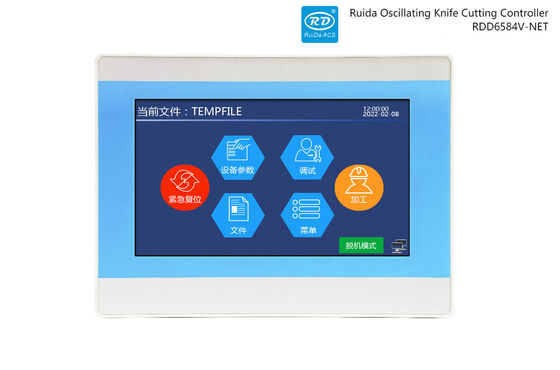

  • 7" touch screen panel with parameter modification and graphic display
  • Supports 15 languages including English, Chinese, Spanish, and more
  • Includes wireless handheld box, RD-APP and RD-WIFI accessories
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET 0
Application Fields

Primarily used in non-metal cutting applications including:

  • Clothing and textiles
  • Furniture and upholstery
  • Digital printing
  • Advertising materials
  • Curtains and drapes
  • Bags and luggage
  • Footwear manufacturing
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET 1
Software

VCutWorks - Free cutting software included with controller

Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET 2
Product Certification
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET 3
Shipping and Payment
Vision Oscillating Knife Cutting Controller Ruida RDD6584V-NET 4
