2 Channel RDC6563FG-LITE Fiber Laser Controller For Cutting And Engraving Machines

Large Image : 2 Channel RDC6563FG-LITE Fiber Laser Controller For Cutting And Engraving Machines

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6563FG-LITE

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

2 Channel RDC6563FG-LITE Fiber Laser Controller For Cutting And Engraving Machines

Description

Axis:	6	Laser Source:	Fiber And CO2 Laser
Laser Channel:	2	Motion Control:	Stepping And Servo Motor
Panel:	5.7'' Color Screen+keys	Communication:	Ethernet, USB, Wireless Handle And WIFI (optional)
Encryption:	Support	Feeding:	Support Automatic Feeding
Onboard Clock:	Support	Auxiliary Gas:	Support Multi-channel Auxiliary Gas Control
Highlight:	Fiber Laser Controller RDC6563FG-LITE , Fiber Laser Engraving Machine Controller , 2 Channel Fiber Laser Controller

2 Channel RDC6563FG-LITE Fiber Laser Controller For Cutting And Engraving Machines

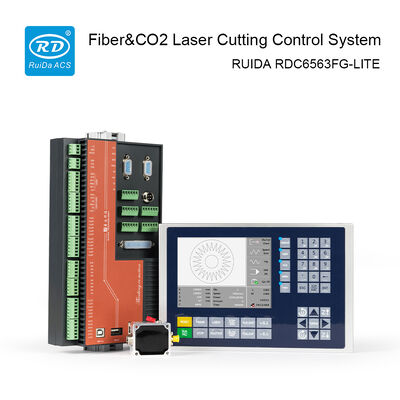

The RUIDA RDC6563FG-LITE is a standalone fiber laser control system designed for cutting and engraving applications. Developed by Shenzhen Ruida Technology, this controller features enhanced hardware stability with superior anti-high voltage and anti-static interference capabilities.

Key Features

Standalone operation capability
Supports USB, Ethernet communication and U flash disk
Compatible with RDCutist software for metal and non-metal processing
6-axis motion control with integrated digital height control system
Advanced functions including leapfrog, flight cutting, and short-distance operation without lifting
Ideal for fiber and high-power CO2 laser cutting in sheet metal, auto parts, and handicraft industries

RDCutist Software (Included)

Supports PLT, DXF, AI and other file formats with import, display and edit functions. Includes image file processing capabilities.

Technical Specifications

Parameter	RDC6563FG-LITE
Laser source	Fiber and CO2 laser
Axis	6
Laser channel	2
Motion control	Stepping and servo motor
Communication	Ethernet, USB, wireless handle (WIFI optional)
Panel	5.7" color screen with keys
Feeding	Support automatic feeding
Encryption	Supported
Height control	Loop-locked control with high-speed response and precision capacitance sensor
Cutting capability	Metal and non-metal mixed cutting
Software features	RDCutist with punching, lead, bridge and micro functions

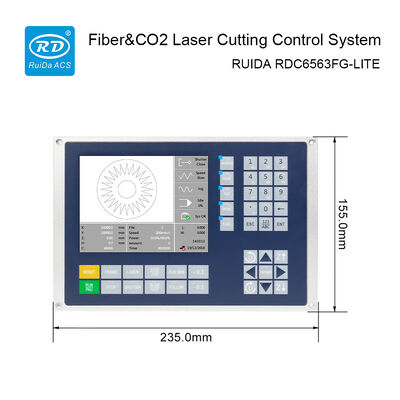

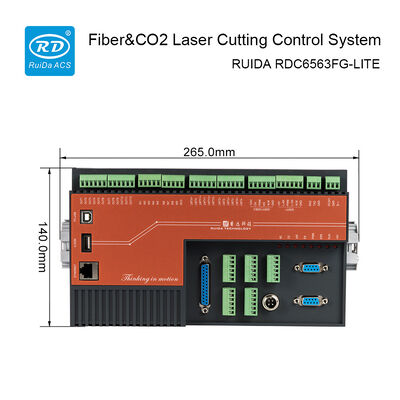

Dimensions	Panel: 235×155×33.5mm Mainboard: 245×140×49.5mm
