Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning

Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning
Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning

Large Image :  Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDV6563FG-NET
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning

Description
Brand: RUIDA Axis: 6
Laser Source: Fiber Laser/CO2 Laser/RF Laser Laser Channel: 1
Height Control: Loop-locked Height Control Panel: 5.7'' Color Screen+keys
Encryption: Support Cutting Function: Mark Point Vision Positioning Metal And Non-metal Mixed Cutting
Onboard Clock: Support Software: RDCutist, Support Punching, Lead, Bridge And Micro Connection
Highlight:

RDV6563FG-NET Controller

,

ROHS Fiber Laser Cutting Controller

,

Fiber Laser Cutting Controller 6 Axis

Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning
Product Description
RDV6563FG-NET Controller For Fiber Laser Mark Point Vision Cutting And Engraving Machines
Product Specifications
Attribute Value
Brand RUIDA
Axis 6
Laser source Fiber laser/CO2 laser/RF laser
Laser channel 1
Height control loop-locked height control
Panel 5.7'' color screen+keys
Encryption Support
Cutting function Mark point vision positioning metal and non-metal mixed cutting
Onboard clock Support
Software RDCutist, support punching, lead, bridge and micro connection
The RDV6563FG-NET by Ruida is a Mark point vision-guided, standalone fiber cutting control system. It employs capacitive sensing technology for the Z-axis height control, which includes a high-performance amplifier and is designed to counteract interference, significantly improving the motion and response speed of the height control.
Key Features
  • Support multistage pierce, step pierce and pulse pierce
  • Support frog, fly cutting and no rise functions
  • Support manual and continuous switch and speed key switch
  • Support metal processing technic, such as die-cutting and pre-piercing
  • Support Mark point vision positioning and cutting
  • Support the metal and non-metal mixed cutting for fiber and CO2 laser
Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning 0
Software RDCutist (Free)
Support PLT, DXF, AI and other file formats import, display and edit functions, support image file import and processing.
Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning 1
Technical Parameters
Parameters RDV6563FG-LITE
Laser source Fiber laser/CO2 laser/RF laser
Height control loop-locked height control
Axis 6
Laser channel 1
Communication Ethernet, USB and WIFI (optional)
Panel 5.7" color screen+keys
Feeding Support automatic feeding
Encryption Support
Onboard clock Support
Firmware Remote upgrade of panel and mainboard program
Cutting function Mark point vision positioning metal and non-metal mixed cutting
Engraving Plane engraving
Camera Cameras of 1.3 and 5 megapixels are available. Lens of 8~12mm are available
Software RDCutist, support punching, lead, bridge and micro connection
Language Simplified Chinese, traditional Chinese and English

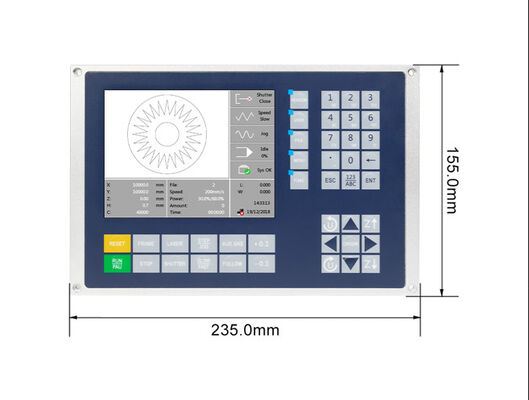

Size Panel: L235*W155*H33.5mm

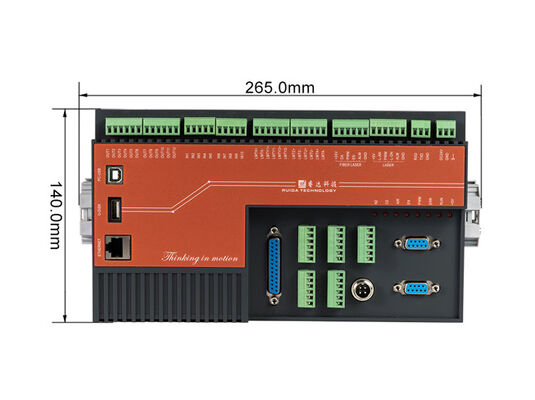

Mainboard:L308*W150*H78mm
Accessories RD-APP, RD-WIFI, Automatic Typesetting Nesting Software
Why Choose the RDV6563FG-NET
  • Standalone Mark Point Vision
  • Enhanced Height Control
  • Advanced Cutting Functions
  • Reliable Performance
Applications
Suitable for metal and non-metal cutting in sheet metal, auto parts, handicrafts and utensils industries.
Ruida RDV6563FG-NET Fiber Laser Cutting Controller 6 Axis With Vision Positioning 2
