Precision Non Metal Fiber Laser Cutting Controller With Mark Point Vision Positioning

Large Image : Precision Non Metal Fiber Laser Cutting Controller With Mark Point Vision Positioning

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDV3040G-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Precision Non Metal Fiber Laser Cutting Controller With Mark Point Vision Positioning

Description

Brand:	RUIDA	Model:	RDV3040G-PCI
Laser:	Fiber Laser	Height Control:	Loop-locked Height Control
Axis:	4	Laser Channel:	1
Communication Interface:	PCI	Panel:	5.7” Color Screen + Keys
Operating System:	OWin7, Win8, Win10	Language:	Simplified Chinese,English
Highlight:	Non Metal Fiber Laser Controller , Non Metal Fiber Laser Cutting Controller , Precision Fiber Laser Cutting Controller

Precision Non Metal Fiber Laser Cutting Controller With Mark Point Vision Positioning

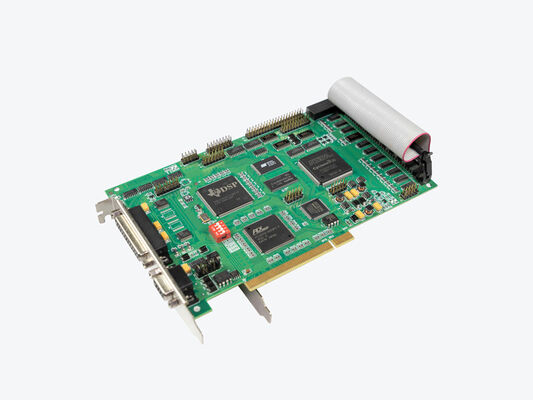

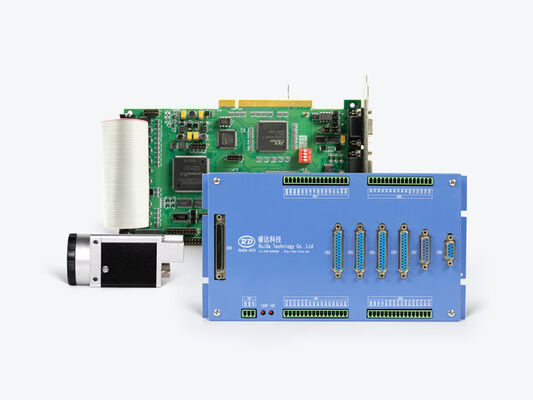

High-performance fiber laser cutting controller with Mark Point Vision Positioning for non-metal cutting applications. The RDV3040G-PCI motion control system with machine vision supports advanced positioning functionality for precise operations.

Key Features

Supports up to 4 axes (stepper or servo motor configurable)
Open loop pulse servo control
Linear interpolation and 4-axis continuous trajectory motion
2-channel galvanometer control with synchronized shape direction
Tangent control of multi-axis trajectory
On-board hardware parameter saving and encryption
28 IO outputs and 16 IO inputs
Multiple welding ripple options and custom ripple support
Advanced laser control with pulse power editing
PC-based motion controller

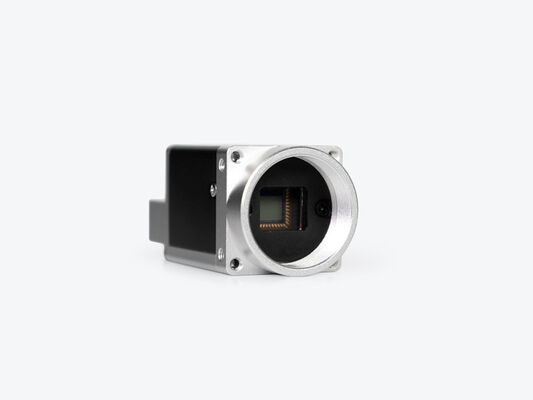

Mark point vision positioning functionality

Technical Specifications

Brand	RUIDA
Model	RDV3040G-PCI
Laser Type	Fiber
Height Control	Loop-locked height control
Axis	4
Laser Channel	1
Communication Interface	PCI
Panel	5.7" color screen + keys
Feeding	Support automatic feeding
Cutting Function	Plane metal cutting
Software	LaserCutist (supports punching, lead, bridge and micro connection)
Operating System	Win7, Win8, Win10

System Advantages

Onboard encryption protects valuable parameters
Mark point vision positioning streamlines operations
Robust hardware parameter storage ensures data security
PC-based control for user-friendly operation
Industrial-grade precision for advanced manufacturing
Customizable control parameters for optimal performance

Key Applications

Laser Processing and Welding
Precision Manufacturing
Automated Production Lines
CNC Machinery
Industrial Robotics
Custom Automation Solutions

Product Gallery
