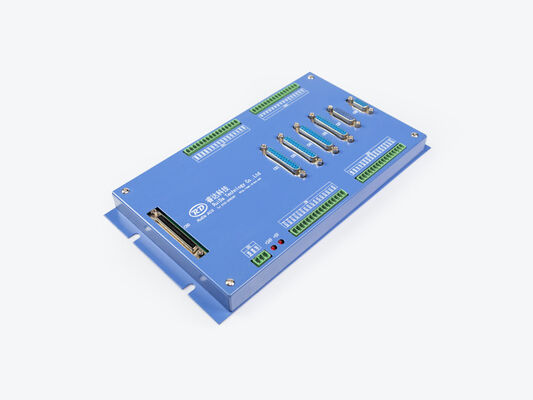

Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI

Large Image : Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDV3040G-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI

Description

Brand:	RUIDA	Model:	RDV3040G-PCI
Laser:	Fiber Laser	Height Control:	Loop-locked Height Control
Axis:	4	Laser Channel:	1
Communication Interface:	PCI	Panel:	5.7” Color Screen + Keys
Operating System:	OWin7, Win8, Win10	Language:	Simplified Chinese,English
Highlight:	Vision Cutting Control System Rudia , Vision Fiber Laser Controller , Fiber Laser Controller RDV3040G-PCI

Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI

The RDV3040G-PCI motion control system with machine vision supports Mark point vision positioning function, specifically designed for non-metal cutting applications.

Key Features

Supports up to 4 axes (configurable as stepper or servo motor control)
Open loop pulse servo control capability
Linear interpolation and 4-axis continuous trajectory motion
2-channel galvanometer control with synchronized shape direction
Tangent control for multi-axis trajectories
On-board hardware parameter saving and encryption
Built-in time control system
28 IO outputs and 16 IO inputs
Multiple welding ripple options with custom ripple capability
Advanced laser control with pulse power editing
PC-based motion controller with Mark point vision positioning

Technical Specifications

Brand	RUIDA
Model	RDV3040G-PCI
Laser Type	Fiber
Height Control	Loop-locked height control
Axis	4
Laser Channel	1

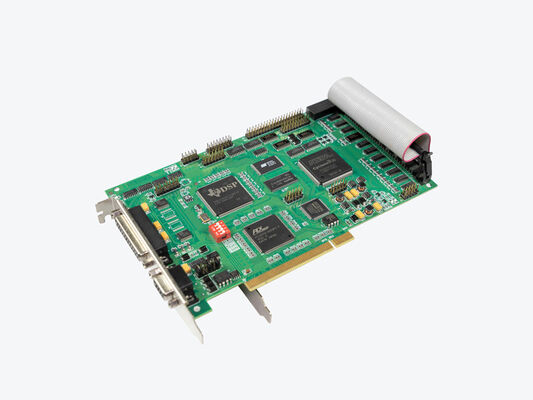

Communication Interface	PCI
Panel	5.7" color screen + keys
Feeding	Support automatic feeding
Cutting Function	Plane metal cutting
Software	LaserCutist (supports punching, lead, bridge and micro connection)
Operating System	Win7, Win8, Win10

System Advantages

Execute complex operations with precision using linear interpolation technology
Achieve professional-grade results with tangent control for multi-axis trajectories
Maintain consistent quality through built-in time control systems
Connect and control multiple devices with 28 output and 16 input channels
Implement sophisticated automation sequences with extensive I/O capabilities
Enable seamless integration with existing manufacturing systems

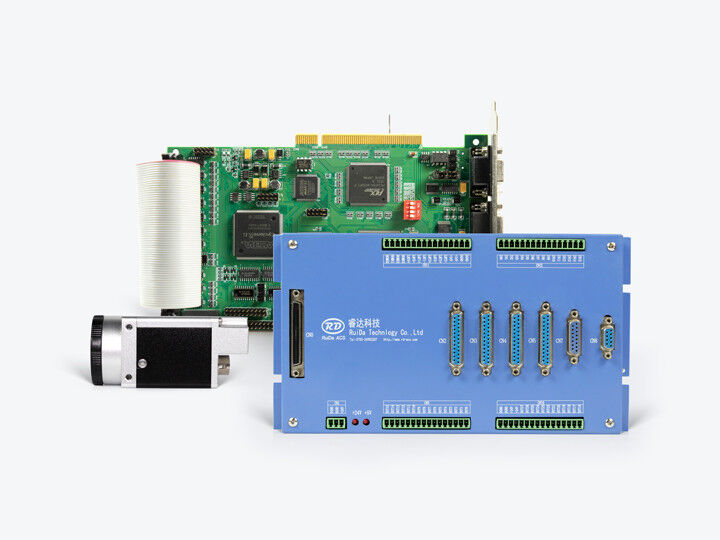

Product Images
