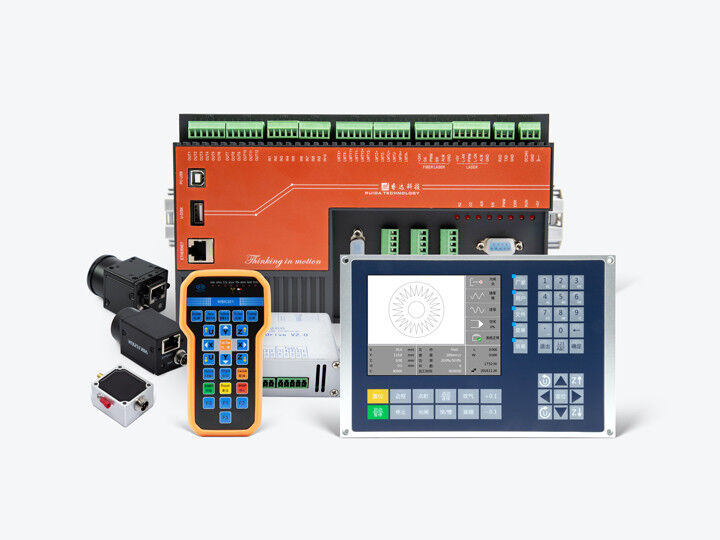

RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller

RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller
RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller

Large Image :  RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDV6563FG-NET
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller

Description
Brand: RUIDA Laser Source: Fiber Laser/CO2 Laser/RF Laser
Axis: 6 Height Control: Loop-locked Height Control
Laser Channel: 1 Panel: 5.7'' Color Screen+keys
Encryption: Support Cutting Function: Mark Point Vision Positioning Metal And Non-metal Mixed Cutting
Onboard Clock: Support Software: RDCutist, Support Punching, Lead, Bridge And Micro Connection
Highlight:

RDV6563FG-NET Fiber Laser Controller

,

Automatic Fiber Laser Controller

,

Automatic Height Control Laser Controller

RUIDA RDV6563FG-NET Fiber Laser Controller With Automatic Height Control
The RDV6563FG-NET is a standalone fiber cutting control system featuring Mark point vision technology for high-speed cutting applications.
Product Specifications
Attribute Value
Brand RUIDA
Laser source Fiber laser/CO2 laser/RF laser
Axis 6
Height control loop-locked height control
Laser channel 1
Panel 5.7'' color screen+keys
Encryption Support
Cutting function Mark point vision positioning metal and non-metal mixed cutting
Onboard clock Support
Software RDCutist, support punching, lead, bridge and micro connection
Product Overview
The RDV6563FG-NET from Ruida Tech utilizes capacitive sensing for its Z-axis automatic height control, equipped with a high-performance amplifier and advanced anti-interference design to enhance motion speed and responsiveness. Integrated with RDCutist software, it enables advanced cutting functions such as Frog, Flight cutting, and No rise.

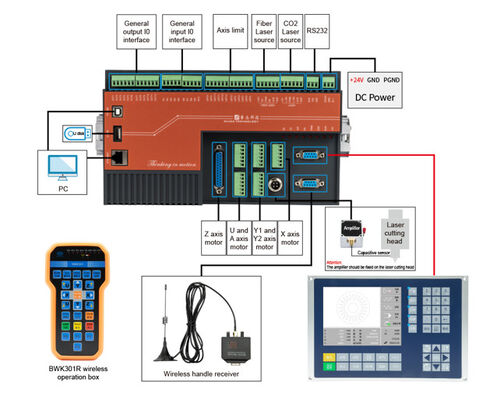

RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller 0
Key Features
  • Support standalone operation and modification of offline manufacturer parameters
  • 6-axis control with integrated full digital height control system
  • High precision capacitance sensor with dynamic servo accuracy less than 0.1mm
  • Automatic calibration function of capacitance parameters
  • Support manual and continuous switch and speed key switch
  • Mark point vision positioning and cutting capability
  • Metal and non-metal mixed cutting for fiber and CO2 laser
Software Features
RDCutist software (included) supports PLT, DXF, AI and other file formats import, display and edit functions. Also supports image file import and processing.
RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller 1
Technical Parameters
Parameters RDV6563FG-LITE
Laser source Fiber laser/CO2 laser/RF laser
Height control loop-locked height control
Axis 6
Laser channel 1
Communication Ethernet, USB and WIFI (optional)
Panel 5.7" color screen+keys
Feeding Support automatic feeding
Encryption Support
Onboard clock Support
Firmware Remote upgrade of panel and mainboard program
Camera Cameras of 1.3 and 5 megapixels available
Cutting function Mark point vision positioning metal and non-metal mixed cutting
Engraving Plane engraving
Software RDCutist, support punching, lead, bridge and micro connection
Language Simplified Chinese, traditional Chinese and English

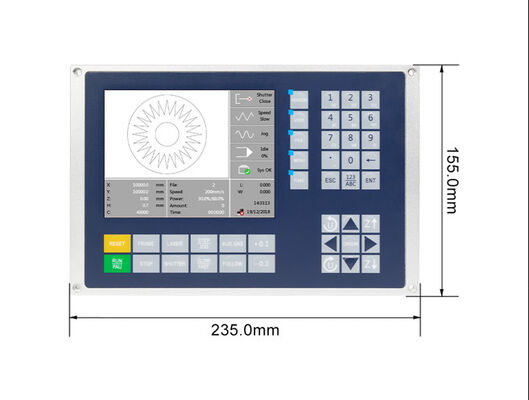

Size Panel: L235*W155*H33.5mm

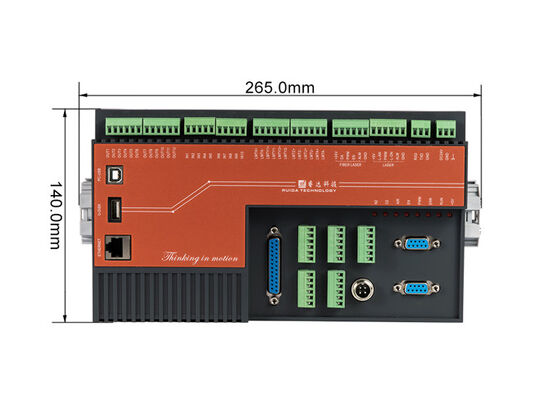

Mainboard: L308*W150*H78mm
Accessories RD-APP, RD-WIFI, Automatic Typesetting Nesting Software
Applications
  • Metal and non-metal cutting in sheet metal, auto parts, handicrafts and utensils industries
  • Large-format fiber laser processing machines
  • Small and medium power laser cutting and CO2 non-metal cutting applications
RUIDA RDV6563FG-NET Fiber Laser Controller Automatic Height Control Laser Controller 2
