Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control

Large Image : Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDS3040F-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control

Description

Brand:	RUIDA	Model:	RDS3040F-PCI
Laser:	Fiber Laser	Height Control:	Loop-locked Height Control
Axis:	4	Laser Channel:	1
Communication Interface:	PCI	Panel:	5.7” Color Screen + Keys
Cutting Function:	Plane Metal Cutting	Size:	Panel: L235mmW155mmH33.5mm Mainboard: L308mmW150mmH78mm
Highlight:	Fiber Laser Metal Cutting Controller , Metal Cutting Controller Loop Locked , Ruida RDS3040F-PCI

Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control

The RDS3040F-PCI fiber laser metal cutting controller supports multi-brand fiber laser sources and wireless handle operation. Designed to work with external closed loop adjustment controllers, it typically operates with LaserCutist2.0 software.

Key Features

Supports up to 4 axes with configurable stepper or servo motor control
Open loop servo control capability
Linear interpolation and 4-axis continuous trajectory motion
Tangent control of multi-axis trajectory
On-board hardware parameter saving and encryption
Integrated time control system
28 IO outputs and 16 IO inputs
Multiple welding ripple patterns with custom options
Supports various laser control methods
PC-based motion controller

Technical Specifications

Brand	RUIDA
Model	RDS3040F-PCI
Laser Type	Fiber
Height Control	Loop-locked height control
Axis	4
Laser Channel	1
Communication Interface	PCI
Panel	5.7" color screen + keys
Feeding	Support automatic feeding
Cutting Function	Plane metal cutting
Software	LaserCutist (supports punching, lead, bridge and micro connection)
Operating System	Win7, Win8, Win10

Technical Advantages

Comprehensive I/O Integration

Connect and control multiple devices with 28 output and 16 input channels
Implement sophisticated automation sequences with extensive I/O capabilities
Enable seamless integration with existing manufacturing systems

Enhanced Security and Vision Systems

Protect valuable parameters with onboard encryption technology
Streamline operations using Mark point vision positioning functionality
Ensure data security with robust hardware parameter storage

Professional-Grade Manufacturing Solution

Benefit from PC-based control for user-friendly operation
Implement advanced manufacturing processes with industrial-grade precision
Customize control parameters for optimal performance in various applications

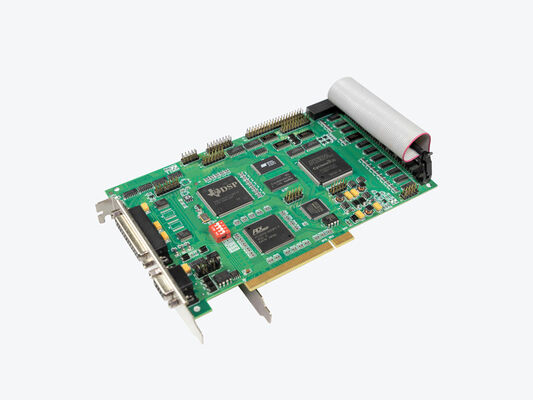

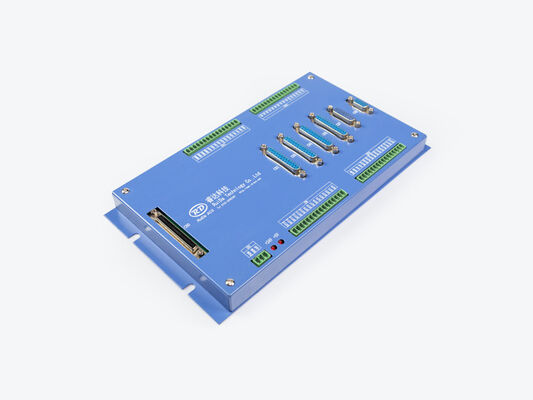

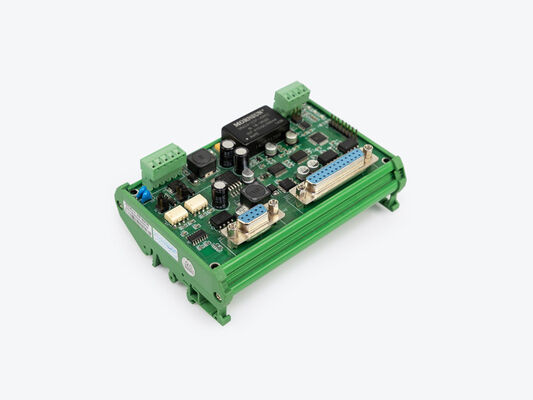

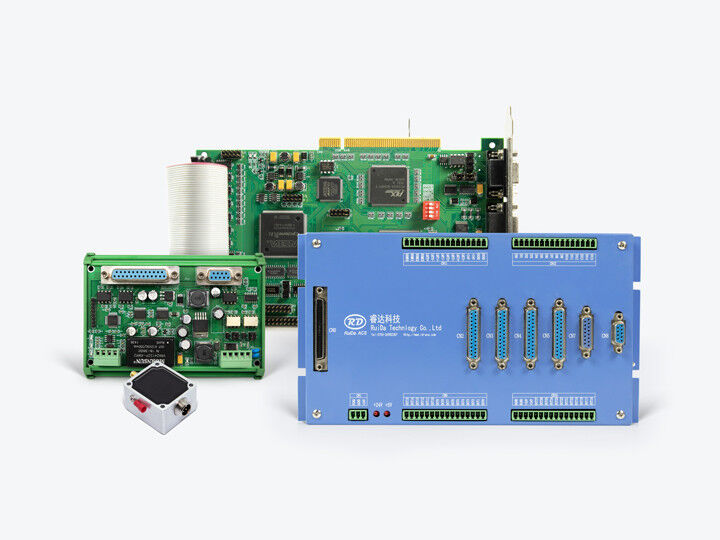

Product Images
