RUIDA RDC6563FP 6 Axis Fiber CO2 Laser Controller For Engraving Cutting

Large Image : RUIDA RDC6563FP 6 Axis Fiber CO2 Laser Controller For Engraving Cutting

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6563FP

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDC6563FP 6 Axis Fiber CO2 Laser Controller For Engraving Cutting

Description

Brand:	RUIDA	Axis:	6
Auxiliary Air:	2 Roads	Pecision:	1 Pluse
Pulse Frequency:	500KHZ	Application:	For Fiber And CO2 Laser Engraving And Cutting Machine
Feeding:	Support	Auto-focus:	Z Axis Height Control And Auto-focus Control In Laser Head
Software:	RDCutist	Return Position:	Return Position Setting When Job Finished
Highlight:	Fiber CO2 Laser Controller , 6 Axis CO2 Laser Controller , RDC6563FP Laser Controller

RUIDA RDC6563FP 6 Axis Fiber CO2 Laser Controller For Engraving Cutting

Professional Control System for Laser Engraving and Cutting Machines

Key Features

Standalone operation with 256MB onboard memory
Supports both fiber and CO2 laser cutting applications
6-axis motion control with digital height control system
DLR+Pulse control mode for stepper and servo motors
Integrated auto-focus control in laser head
Supports USB, Ethernet, and U flash disk communication
Advanced cutting functions including leapfrog and flight cutting

Technical Specifications

Brand	RUIDA
Control Axes	6
Precision	1 Pulse
Pulse Frequency	500KHZ

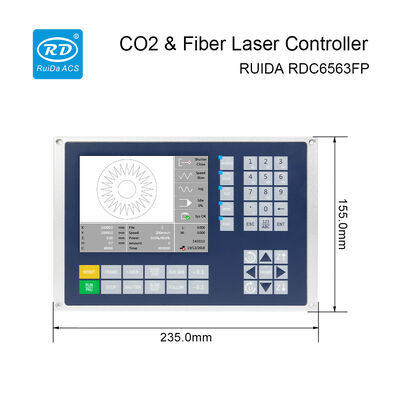

Display	5.7" TFT with control and number keys
Height Control	0.1mm precision with high-precision sensor
Auxiliary Air	3 channels for various processing techniques
Software	RDCutist (included)

System Capabilities

Supports metal and non-metal processing
Compatible with various laser sources including fiber, CO2 glass tube, and RF tube
Advanced height sensor calibration
Multiple piercing modes: stage, continuous, and pulse
Comprehensive system protection: collision, limit, and servo alarm
Online update capability for both panel and controller
Multi-language support (English, Simplified/Traditional Chinese)

RDCutist Software Features

Free included software package
Supports PLT, DXF, AI and other vector file formats
Image file import and processing capabilities
Vector layer parameter control for height and speed settings
Job position return setting upon completion

Applications

Ideal for sheet metal processing, automotive parts manufacturing, handicrafts production, and utensil fabrication. Suitable for medium and small power laser cutting applications.
