6 Axis Fiber Laser Cutting Controller RDC6563F Control Panel Laser Engraver Controller

Large Image : 6 Axis Fiber Laser Cutting Controller RDC6563F Control Panel Laser Engraver Controller

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6563F

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

6 Axis Fiber Laser Cutting Controller RDC6563F Control Panel Laser Engraver Controller

Description

Is Smart Device:	YES	Software:	RDCutist
Axis:	6	Pulse Frequency:	500KHZ
Pecision:	1 Pluse	Auxiliary Air:	2 Roads
Feeding:	Support	RTC:	Suppot Encryption For Installment
Auto-focus:	Support	Application:	For Fiber And CO2 Laser Engraving And Cutting Machine
Highlight:	6 Axis Fiber Laser Cutting Controller , Fiber Laser Cutting Controller RDC6563F , Fiber Laser Engraver Controller

6 Axis Fiber Laser Cutting Controller RDC6563F Control Panel Laser Engraver Controller

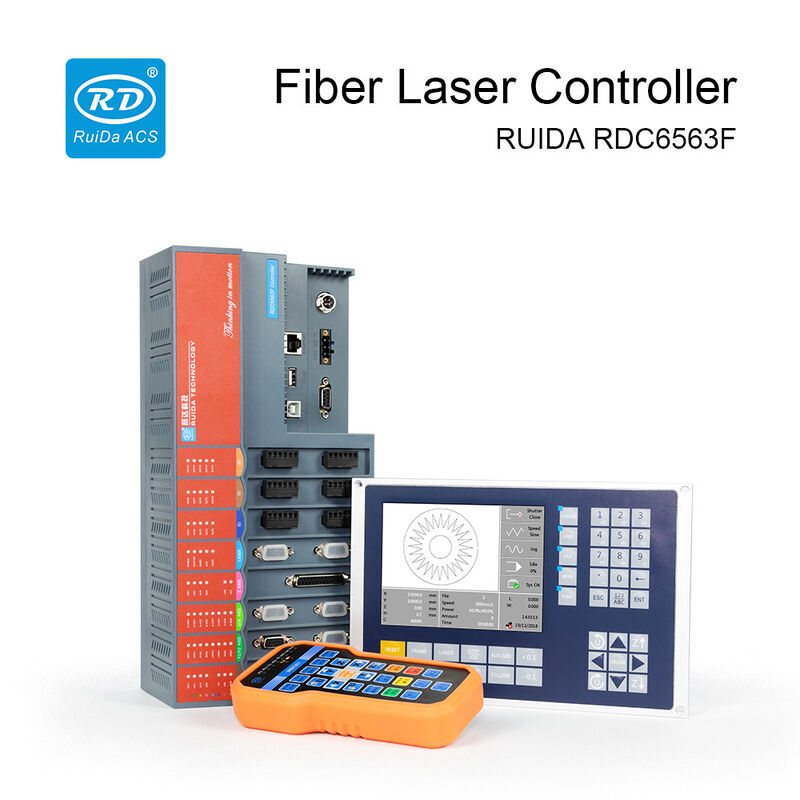

RUIDA RDC6563F Fiber Laser Control System And Control Panel For Fiber Laser Engraving Cutting Machine

Product Description

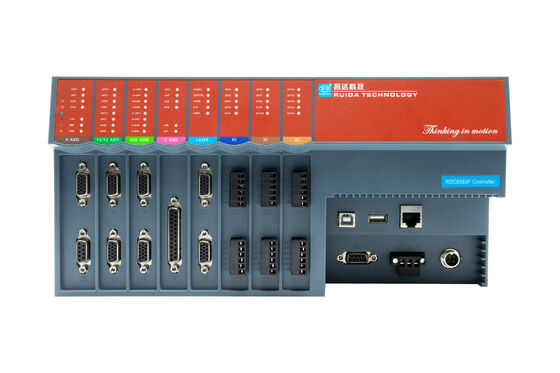

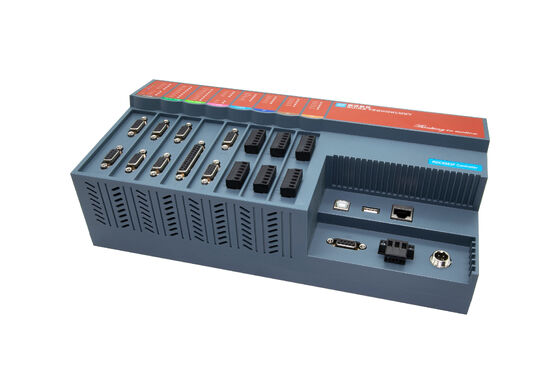

RUIDA RDC6563F is a standalone fiber laser cutting control system with 256M onboard memory. Utilizing DLR+Pulse control mode, it supports stepper motor and servo motor control. Ideal for laser processing of large format fiber, CO2 glass tube, and RT tube applications, it's designed for medium and small power laser cutting and mixed cutting operations.

Product Features

Standalone operation capability
Supports USB, Ethernet communication and U flash disk
Works with independent application software RDCutist for metal and non-metal processing
Supports 6 motion axes with integrated full digital height control system
Features leapfrog, flight cutting, and short-distance without lifting functions
Applied in fiber and high-power CO2 laser cutting for sheet metal, auto parts, handicrafts and utensils industries

Software RDCutist (Free)

Supports PLT, DXF, AI and other file formats import with display and edit functions. Includes image file import and processing capabilities.

Technical Parameters

Parameters	RDC6563F
Laser source	Supports large format fiber cutting, CO2 glass tube, RF tube laser
Axis	6
Auxiliary Air	2
Precision	1 pulse
Auto-focus	Z axis height control and auto-focus control in laser head

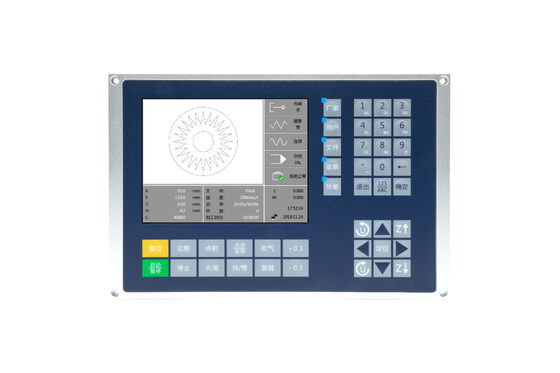

Panel	5.7" TFT display with control and number keys
System functions	Height sensor calibration, compatible with popular laser heads. Vector layer parameters support height and speed setting. Supports stage piercing, continuous piercing and pulse piercing
Return position	Setting when job finished
RTC	Support encryption for installment
Update	Support operating panel update and controller update online
Feeding	Supported
Height control	0.1mm, Z axis height control with high precision height sensor
Detection precision	0.01mm
System protection	Collision protection, limit protection and servo alarm protection. Laser alarm protection and machine protection
Software	RDCutist
Auxiliary air	Supports 3 channels auxiliary air control for various processing techniques
Languages	Supports simplified Chinese, traditional Chinese and English
