RUIDA RDC6563FG-LITE 6 Axis Fiber Laser Cutting Controller 2 Channel Automatic Feeding

Large Image : RUIDA RDC6563FG-LITE 6 Axis Fiber Laser Cutting Controller 2 Channel Automatic Feeding

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6563FG-LITE

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDC6563FG-LITE 6 Axis Fiber Laser Cutting Controller 2 Channel Automatic Feeding

Description

Brand:	RUIDA	Motion Control:	Stepping And Servo Motor
Axis:	6	Laser Source:	Fiber And CO2 Laser
Laser Channel:	2	Panel:	5.7” Color Screen+keys
Engraving:	Plane Engraving	Height Control:	Loop-locked Height Control; Support High Motion And Response Speed Follow Control And High Precision Capacitance Sensor.
Feeding:	Automatic	Auxiliary Gas:	Support Multi-channel Auxiliary Gas Control
Cutting:	Metal And Non-metal Mixed Cutting	Software:	RDCutist, Support Punching, Lead, Bridge And Micro Connection
Highlight:	RUIDA RDC6563FG-LITE , Fiber Laser Cutting Controller 2 Channel , Automatic Fiber Laser Cutting Controller

RUIDA RDC6563FG-LITE 6 Axis Fiber Laser Cutting Controller 2 Channel Automatic Feeding

The RDC6563FG-LITE is a standalone fiber cutting control system by Ruida Tech., known for its robust hardware stability and high resistance to voltage and static interference. Featuring a special time system and hardware encryption support, it offers smooth PC communication via Ethernet and USB.

Key Features

Autonomous Function: Designed for standalone operation
Versatile Connectivity: Supports USB, Ethernet, and U flash disk for data transfer
Diverse Processing Capabilities: Compatible with RDCutist software for processing both metals and non-metals
Advanced Motion Control: 6-axis control with integrated digital height control system
Specialized Cutting Functions: Enables leapfrog, flight cutting, and short-distance cutting without lifting
Broad Industry Application: Suitable for sheet metal, automotive parts, handicrafts, and utensils

Technical Specifications

Parameter	Specification
Brand	RUIDA
Motion control	Stepping and servo motor
Axis	6
Laser source	Fiber and CO2 laser
Laser channel	2

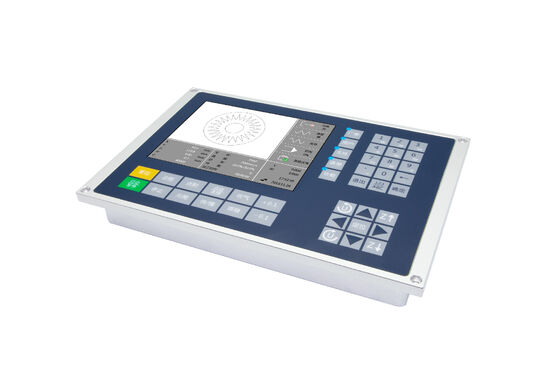

Panel	5.7" color screen+keys
Height control	Loop-locked height control with high motion and response speed follow control
Cutting capability	Metal and non-metal mixed cutting
Software	RDCutist, support punching, lead, bridge and micro connection

RDCutist Software Features

Support PLT, DXF, AI and other file formats import, display and edit functions. Includes image file import and processing capabilities.

Why Choose the RDC6563FG-LITE

Independent Use: Operates standalone, eliminating reliance on external systems
Direct Data Transfer: Facilitates USB and Ethernet communication, plus U flash disk support
Dual Material Processing: Handles both metal and non-metal with RDCutist software integration
6-Axis Control: Features integrated digital height control system for versatile cutting
Efficient Cutting Modes: Includes leapfrog, flight cutting, and no-lift short-distance cutting
