RUIDA Visual Fiber CO2 Laser Mixed Control System For Cutting And Engraving Machines

Large Image : RUIDA Visual Fiber CO2 Laser Mixed Control System For Cutting And Engraving Machines

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6563FG-NET

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA Visual Fiber CO2 Laser Mixed Control System For Cutting And Engraving Machines

Description

Brand:	RUIDA	Laser Source:	Fiber Laser/CO2 Laser/RF Laser
Axis:	6	Height Control:	Loop-locked Height Control
Laser Channel:	1	Communication:	Ethernet, USB And WIFI (optional)
Panel:	5.7'' Color Screen+keys	Feeding:	Support Automatic Feeding
Onboard Clock:	Support	Software:	RDCutist, Support Punching, Lead, Bridge And Micro Connection
Highlight:	RDV6563FG-NET Control System , Fiber CO2 Mixed Control System , Fiber CO2 Cutting Engraving Controller

RUIDA Visual Fiber CO2 Laser Mixed Control System For Cutting And Engraving Machines

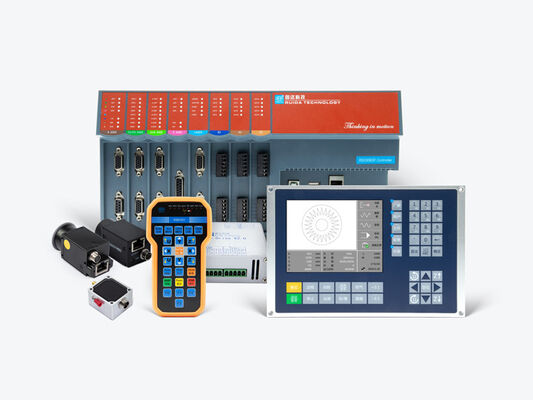

RUIDA RDV6563FG-NET Visual Fiber CO2 Mixed Cutting System is a standalone fiber cutting control system with mark point vision positioning capability, developed by Shenzhen Ruida Technology Co., LTD.

Key Features

Standalone operation with offline parameter modification capability
6-axis control with integrated full digital height control system
High precision capacitance sensor with dynamic servo accuracy <0.1mm
Automatic calibration function for capacitance parameters
Supports multistage pierce, step pierce and pulse pierce functions
Frog, fly cutting and no rise functions supported

Software: RDCutist (Free)

Supports PLT, DXF, AI and other file formats import, display and edit functions. Includes image file import and processing capabilities.

Technical Specifications

Parameters	RDV6563FG-LITE
Laser source	Fiber laser/CO2 laser/RF laser
Height control	Loop-locked height control
Axis	6
Laser channel	1
Communication	Ethernet, USB and WIFI (optional)

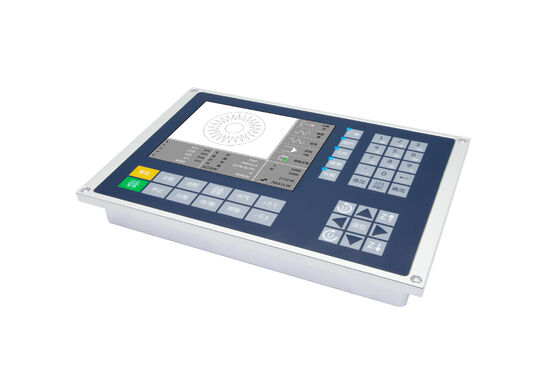

Panel	5.7" color screen+keys
Feeding	Support automatic feeding
Encryption	Supported
Onboard clock	Supported
Firmware	Remote upgrade of panel and mainboard program
Camera	1.3MP and 5MP cameras available with 8-12mm lenses
Cutting function	Mark point vision positioning metal and non-metal mixed cutting
Engraving	Plane engraving
Software	RDCutist with punching, lead, bridge and micro connection support
Language	Simplified Chinese, traditional Chinese and English

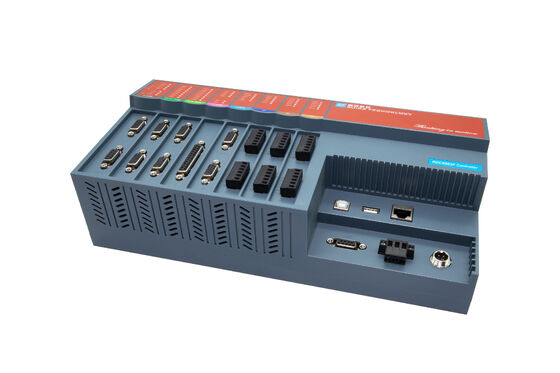

Size	Panel: 235×155×33.5mm Mainboard: 308×150×78mm
Accessories	RD-APP, RD-WIFI, Automatic Typesetting Nesting Software

Applications

Suitable for large-format fiber laser processing machines, widely used in small and medium power laser cutting and CO2 non-metal cutting applications.
