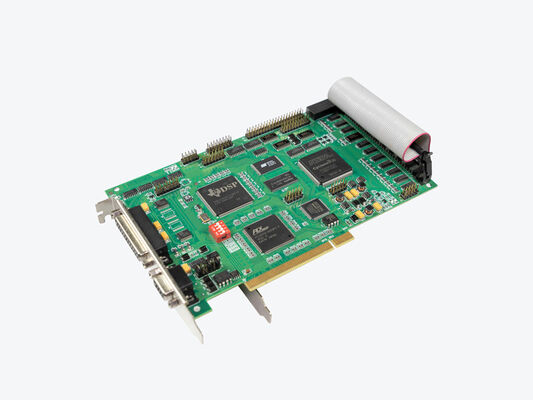

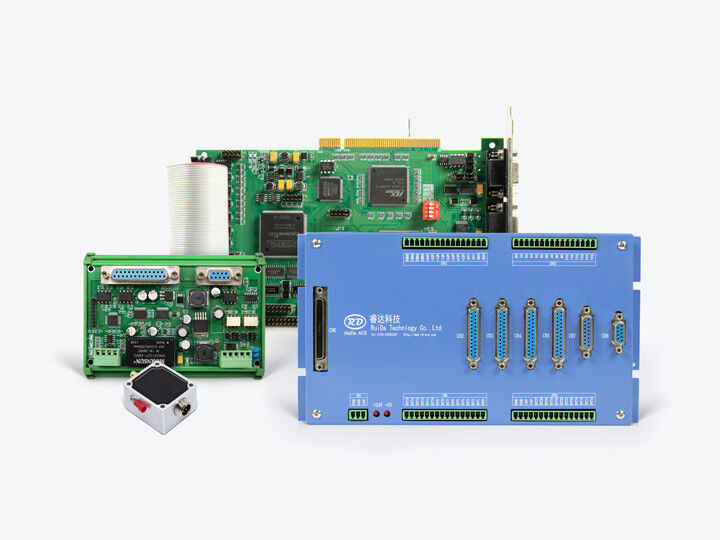

RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller

RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller
RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller

Large Image :  RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller

Product Details:
Place of Origin: Mainland China
Brand Name: Ruida
Certification: CE FCC ROHS
Model Number: RDS3040F-PCI
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller

Description
Brand: RUIDA Model: RDS3040F-PCI
Laser: Fiber Laser Height Control: Loop-locked Height Control
Axis: 4 Laser Channel: 1
Communication Interface: PCI Panel: 5.7” Color Screen + Keys
Cutting Function: Plane Metal Cutting Size: Panel: L235mm*W155mm*H33.5mm Mainboard: L308mm*W150mm*H78mm
Highlight:

RDS3040F-PCI Fiber Laser Cutting Controller

,

Fiber Laser Cutting Controller 4 Axis

,

Metal Laser Cutter Controller

RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller
Revolutionize your metal cutting process with the RDS3040F-PCI Fiber Laser Cutting Controller. This advanced controller supports multi-brand fiber laser sources and wireless handle operation, designed to work seamlessly with LaserCutist2.0 software.
Key Features
  • Supports up to 4 axes with configurable stepper or servo motor control
  • Open loop servo control capability
  • Advanced linear interpolation for precise motion control
  • 4-axis continuous trajectory motion
  • Tangent control of multi-axis trajectory
  • On-board hardware parameter saving and encryption
  • Integrated time control system
  • 28 IO outputs and 16 IO inputs
  • Multiple welding ripple patterns with custom options
  • Comprehensive laser control support
  • PC-based motion controller architecture
Technical Specifications
Brand RUIDA
Model RDS3040F-PCI
Laser Type Fiber
Height Control Loop-locked height control
Axis 4
Laser Channel 1
Communication Interface PCI
Panel 5.7" color screen + keys
Feeding Support automatic feeding
Cutting Function Plane metal cutting
Software LaserCutist (supports punching, lead, bridge and micro connection)
Operating System Win7, Win8, Win10
Advanced 4-Axis Control System
Transform your manufacturing capabilities with our state-of-the-art motion control system. Designed for precision, flexibility, and reliability, our controller delivers industrial-grade performance for demanding applications.
High-Performance Motion Control Solutions
  • Powerful 4-Axis Integration: Master complex manufacturing processes with simultaneous control of up to 4 axes
  • Flexible Motor Configuration: Choose between stepper or servo motors for each axis
  • Precise Trajectory Control: Achieve smooth, accurate motion paths with advanced linear interpolation
  • Smart Tangent Control: Maintain optimal tool orientation with intelligent multi-axis trajectory management
RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller 0
RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller 1
RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller 2
RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller 3
RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller 4
RDS3040F-PCI Fiber Laser Cutting Controller 4 Axis Metal Laser Cutter Controller 5
