RUIDA Laser Height Controller LFS-PM-T43 Metal Non Metal Automatic Height Control System

Large Image : RUIDA Laser Height Controller LFS-PM-T43 Metal Non Metal Automatic Height Control System

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	LFS-PM-T43

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA Laser Height Controller LFS-PM-T43 Metal Non Metal Automatic Height Control System

Description

Control Method:	Pulse	Communication:	Ethernet, RS232
Control Output:	1MHz	Detection Distance:	0.1mm-10mm
Sampling Frequency:	1000Hz	Motor:	Stepper And Servo Motors
Control Speed:	600mm/s	Laser Cutting:	Metal And Non-metal Mixed Cutting
Dynamic Follow Accuracy:	≤0.1mm	Panel:	4.3''and 7'' Touch Screens Are Available
Highlight:	Laser Height Controller LFS-PM-T43 , Non Metal Laser Height Controller

RUIDA Laser Height Controller LFS-PM-T43 Metal Non Metal Automatic Height Control System

Product Description

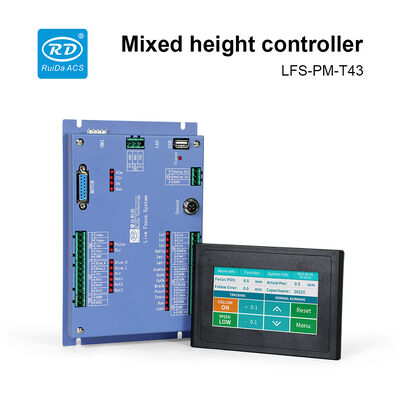

The RUIDA LFS-PM-T43 Automatic Height Control System is specially designed for mixed metal and non-metal cutting applications. Developed by Shenzhen Ruida Technology Co., LTD, this system features a 4.3" industrial TFT color touch screen with a user-friendly interface for real-time status and data display. Its high-performance amplifier and professional anti-interference design enhance motion speed and response time for precise automatic height control.

Key Features

Capacitive sensing technology enables automatic calibration of capacitance parameters and compatibility with any cutting head
Multiple protection functions including collision alarm, limit protection, and servo alarm
Online modification and real-time position detection of focus position (0-9.9mm capacitance detection range)
Real-time display of cutting head motion status and alarm information
Adjustable lifting height and speed settings for versatile cutting operations
Supports step pierce, low voltage pierce, frog, and lifting functions when used with Ruida controller

Software Compatibility

MetalCute (Free)

Supports PLT, DXF, AI, DST and other file formats import, display and edit functions. Includes image file import and processing capabilities.

Technical Specifications

Parameter	LFS-PM-T43
Panel	4.3" and 7" touch screens available

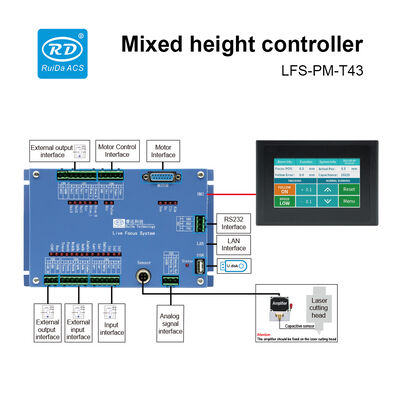

Communication	Ethernet, RS232
Control method	Pulse
Motor	Stepper and servo motors
Control output	1MHz
Laser cutting	Metal and non-metal mixed cutting
Sampling frequency	1000Hz
Control speed	600mm/s
Detection distance	0.1mm-10mm
Dynamic follow accuracy	≤0.1mm
Real-time adjustment of focus	Supported
Focal length adjusts step	0.1mm
Firmware	Online remote upgrade via USB
Software	RDCutist, supports punching, lead, bridge and micro
Language	Chinese, English

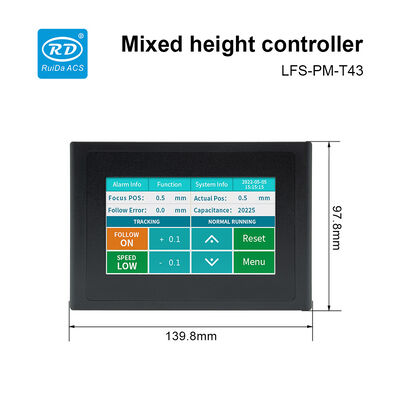

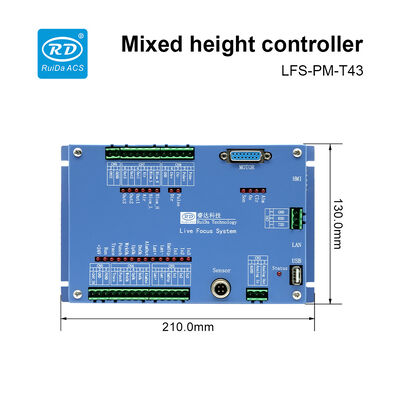

Size	Panel: 139.8×97.8×22.2mm Mainboard: 210×130×28mm
