Ruida RDC6585PC Precision Laser Height Controller With Spray Cutting

Large Image : Ruida RDC6585PC Precision Laser Height Controller With Spray Cutting

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDC6585PC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDC6585PC Precision Laser Height Controller With Spray Cutting

Description

Laser:	CO2 Glass Tube And CO2 RF Tube	Nozzle:	Support Solenoid Valve And Piezoelectric Valve
Axis:	8	Laser Channel:	2
Spray Adhesive Channel:	2	Double Head Synchronous:	Support
Installment Encryption:	Support	Software:	RDWorksV8
Cutting:	Support	Firmware Upgrade:	Remote Upgrade Of Panel And Mainboard Program
Glue Spray Process:	Support The Adjustment Of Position And Amount Of Glue Spray, Delay Process Control	Size:	Panel: L180mmW140mmH42.1mm Mainboard: L211.5mmW134mmH33mm
Highlight:	RDC6585PC Laser Height Controller , Precision Laser Height Controller

Ruida RDC6585PC Precision Laser Height Controller With Spray Cutting

The RDC6585PC system is a new generation integrated spray-cut control system featuring a 5-inch color screen interface with enhanced functionality and user-friendly operation. This controller provides complete motion control capabilities for both laser processing and glue spraying applications.

Technical Specifications

Laser Compatibility	CO2 glass tube and CO2 RF tube
Nozzle Support	Solenoid valve and piezoelectric valve
Axis	8
Laser Channels	2
Spray Adhesive Channels	2
Double Head Synchronization	Supported
Software	RDWorksV8
Dimensions	Panel: 180×140×42.1mm \| Mainboard: 211.5×134×33mm

Key Features

Intuitive 5-inch color screen interface for enhanced user experience
Comprehensive motion control with multiple IO interfaces
Dual processing capabilities for laser cutting and glue spraying
Supports synchronous operation of dual-head systems
Layered processing for two-channel laser and glue spraying operations
Remote firmware upgrade capability for both panel and mainboard
Multi-language support (12 languages including English, Chinese, Spanish, etc.)

Applications

Clothing and textile industries
Leather goods manufacturing
Toy production
Footwear industry
3C electronics manufacturing

Included Software

RDWorksV8 (Free license included)

RDWorksV8 software interface

Product certification

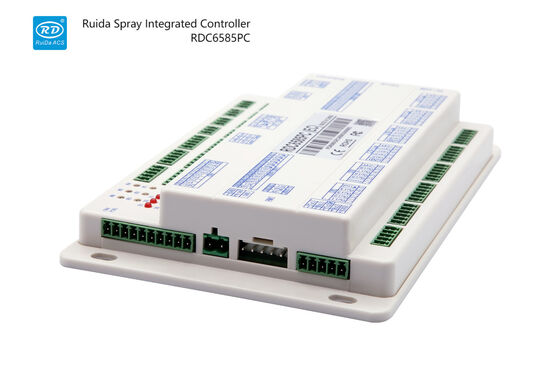

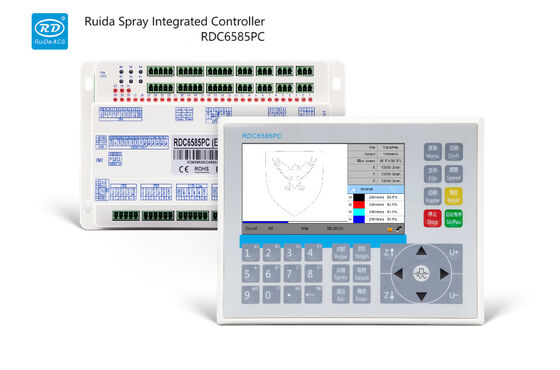

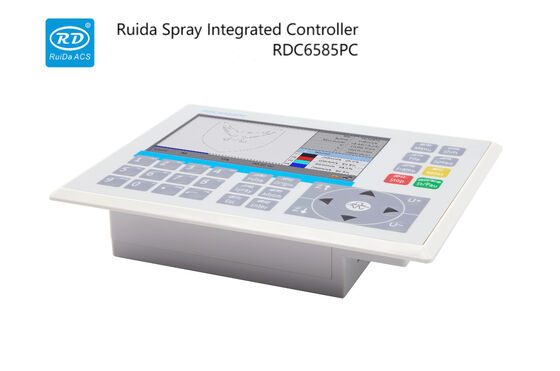

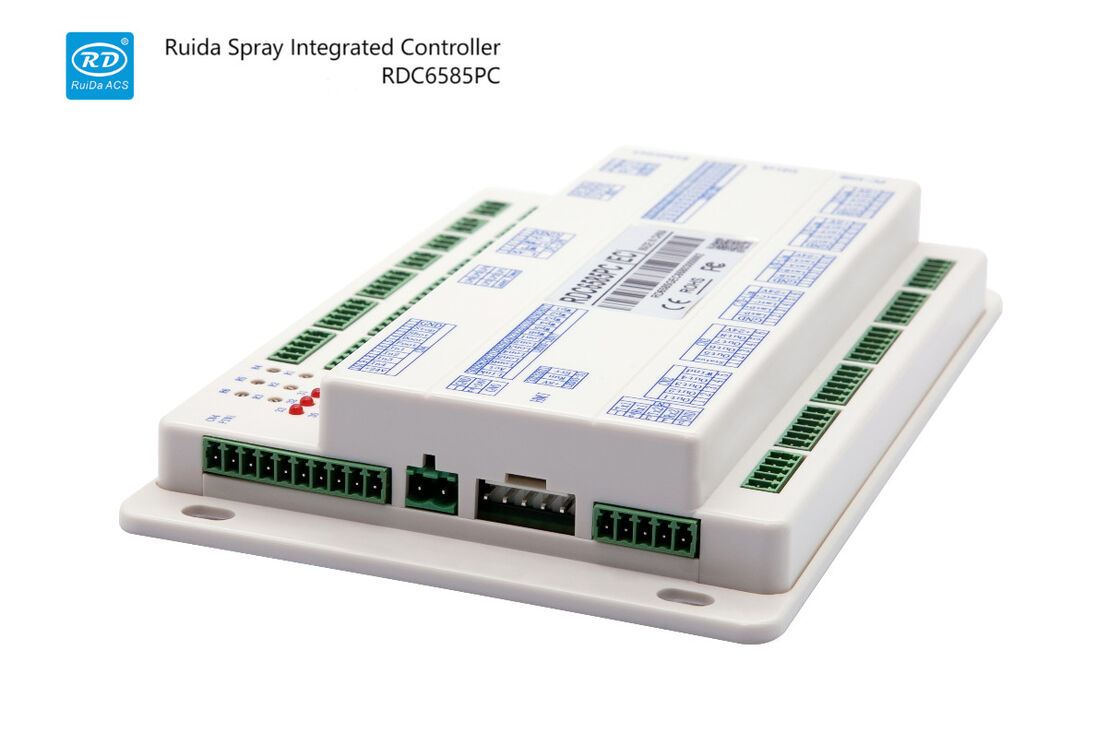

RDC6585PC controller unit

Controller in industrial application
