Ruida Controller RDC6555PJ-DFM-RD Double Beam Large Vision Spray Control Card

Large Image : Ruida Controller RDC6555PJ-DFM-RD Double Beam Large Vision Spray Control Card

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDC6555PJ-DFM-RD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida Controller RDC6555PJ-DFM-RD Double Beam Large Vision Spray Control Card

Description

Nozzle:	Support Solenoid And Piezoelectric Valves	Y Axis Double Drive:	Support Dual Drive Output And Have Synchronous Protection Function
Spray Control:	Support The Synchronous Output Of The Encoder Position	Axis:	5
Nozzle Channel:	1	Panel:	5'' Color Screen
Communication Interface:	Ethernet, USB	Camera:	None
Language:	12 Languages Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, And Italian	Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit
Firmware Upgrad:	Remote Upgrade Of Panel And Mainboard Program	Software:	PJWorks
Highlight:	Large Vision Spray Control Card , RDC6555PJ-DFM-RD Ruida Controller

Ruida Controller RDC6555PJ-DFM-RD Double Beam Large Vision Spray Control Card

Product Description

The RDC6555PJ-DFM-RD system is an advanced control solution for glue spraying and line drawing, created by Ruida Technology. It features a user-friendly interface, enhanced motion control capabilities, and sophisticated spraying algorithms for improved accuracy. The controller offers flexible IO control interfaces and full compatibility with PJWorks software.

Technical Specifications

Parameter	RDC6555PJ-DFM-RD
Nozzle	High power control output, directly controls solenoid valves and piezoelectric valves
Y axis double drive	Supports dual drive output with synchronous protection function
Glue spray Control	Adjustable frequency and quantity of glue spray; supports process parameter settings
Axes	Five
Nozzle Channel	One
External protection input	2 channels
Tri-color light	Supported, with buzzer
Encoder feedback	Supported
Z axis control	Supports lifting/falling and real-time adjustment
U axis control	Supports feeding axis
Real-time height control	Optional automatic height control system for non-plane spray processing
Visual performance	Optional feature positioning/Mark point/Large format contour extraction
Installment encryption	Supported
Onboard clock	Supported
Firmware upgrade	Remote upgrade of panel and mainboard program
Software	PJWorks
Language	12 languages supported
Size	Panel: 202×145×42.1mm; Mainboard: 270×157×55mm

Key Features

Negative limit detection and origin reset functionality
Encoder signal sensing with real-time position/speed monitoring
Servo driver follow-up error alerting
Synchronous error alerting for dual-drive gantries
External start, pause/resume, and stop controls
Raster and cover protection mechanisms
Four general-purpose input IO interfaces
Position-tracking spray control
Absorption and blowing functions
Tri-color LED and buzzer alerts
High-power, high-frequency control signal outputs

Application Fields

Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.

Software

PJWorks

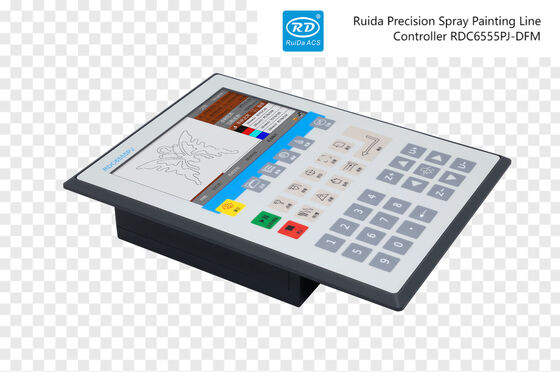

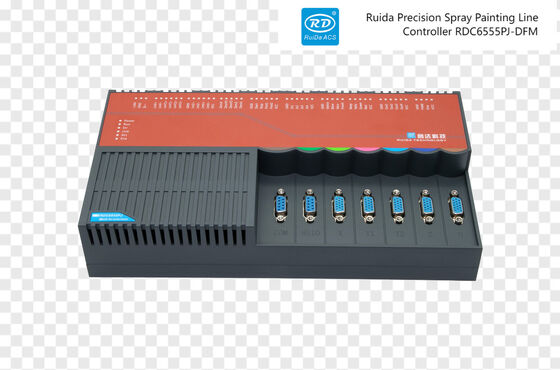

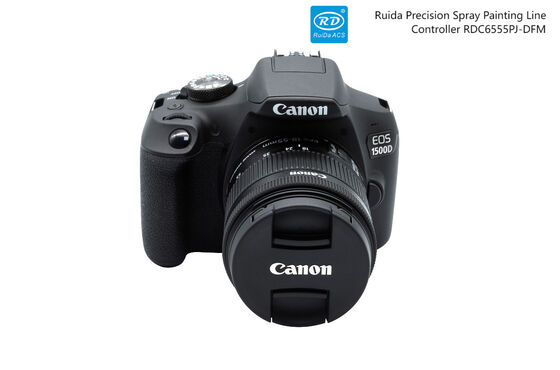

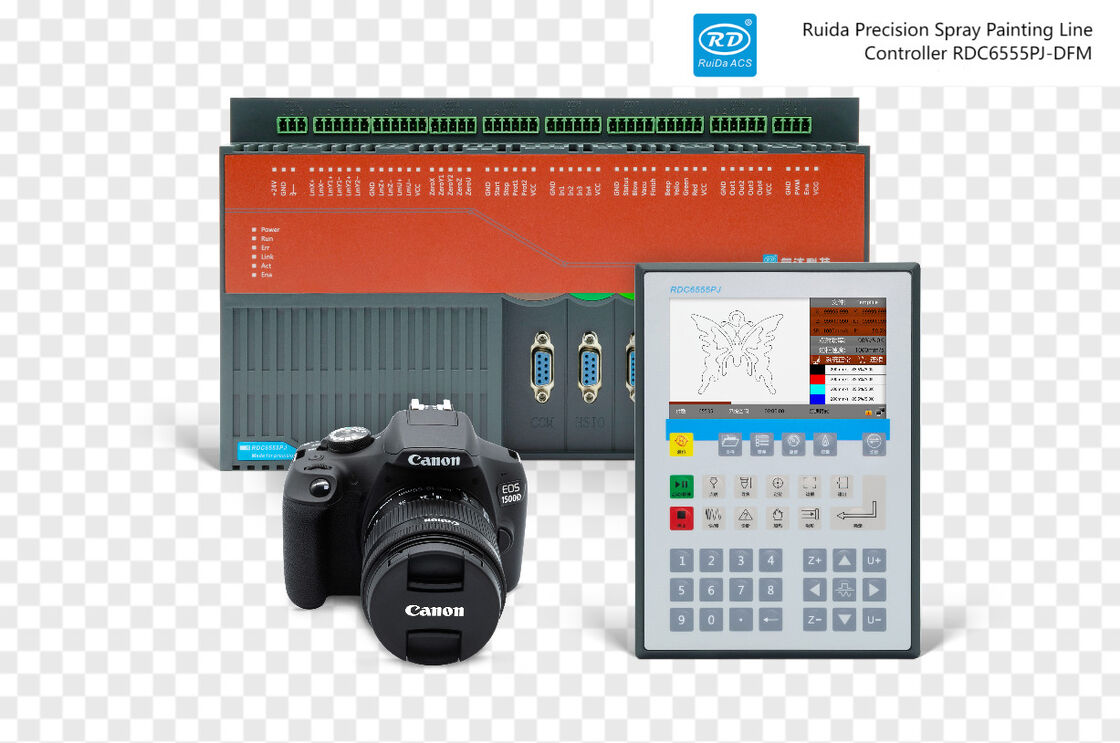

Product Images

Tag:

Contact Person: Ms. Cyan LIANG

Tel: +8613410708106
