16 Axis Dual Track Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U

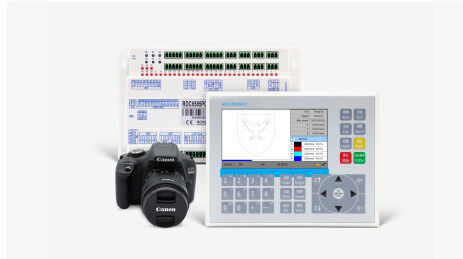

Large Image : 16 Axis Dual Track Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDC6585PC-U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

16 Axis Dual Track Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U

Description

Laser:	CO2 Glass Tube And CO2 RF Tube	Nozzle:	Support Solenoid Valve And Piezoelectric Valve
Axes:	16	Laser Channels:	4
Spray Adhesive Channels:	4	Double Head Synchronous:	Support
Communication Interface:	Ethernet, USB	Panel:	5'' Color Screen + Keys
Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Ordinary Feeding, Ultra-wide Segmentation Feeding	Double Coordinate System Processing:	Support
Glue Spray Process:	Support The Adjustment Of Position And Amount Of Glue Spray, Delay Process Control	Model:	Double Heads Asynchronously
Highlight:	Dual Track Laser Height Controller , 16 Axis Laser Height Controller

16 Axis Dual Track Laser Height Controller With 5 Inch Screen Ruida RDC6585PC-U

Dual Track Laser Height Controller Large Visual Spray Cutting Integrated Controller RDC6585PC-U

Product Specifications

Attribute	Value
Laser	CO2 glass tube and CO2 RF tube
Nozzle	Support solenoid valve and piezoelectric valve
Axes	16
Laser channels	4
Spray adhesive channels	4
Double head synchronous	Support
Communication interface	Ethernet, USB
Panel	5" color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, ordinary feeding, ultra-wide segmentation feeding
Double coordinate system processing	Support
Glue spray process	Support the adjustment of position and amount of glue spray, delay process control
Model	Double heads asynchronously

Ruida Controller RDC6585PC-U Description

The system features a 5-inch color screen for intuitive operation and supports separate processing for laser cutting and glue spraying. It offers comprehensive motion control for precise movements during operations and includes multiple I/O control interfaces for enhanced compatibility with peripherals.

Technical Parameters

Parameter	Value
Installment encryption	Support
Onboard clock	Not support
Firmware upgrade	Remote upgrade of panel and mainboard program
Software	RDWorksV8
Size	Panel: 180×140×42.1mm Mainboard: 211.5×134×33mm
Language	12 languages including English, Chinese, French, German, Spanish, etc.
Accessories	Wireless handheld box, RD-APP and RD-WIFI

Key Features

Precise PPI control mode
Simultaneous laser cutting and glue spray through different layers
Support for large-format panoramic visual positioning
Double heads asynchronous processing capability

Application Areas

Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.

Software

Unionlaser

Product Certification
