LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller

LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller
LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller

Large Image :  LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE, FCC, RoHB
Model Number: LFS-ANM-T43-V2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller

Description
Panel: 4.3'' Touch Screen Communication: Ethernet, RS232
Control Method: Pulse Motor: Servo Motor And Stepping Motor
Control Output: 1MHz Laser Cutting: Non-metal Cutting
Sampling Frequency: 1000Hz Speed: 300mm/s
Detection Distance: ±35mm Dynamic Follow Accuracy: ≤0.1mm
Real-time Adjustment Of Focus: Support Focal Length Adjusts Step: 0.1mm
Highlight:

LFS-ANM-T43-V2

,

Non Metal Height Laser Controller

,

1MHz Ruida Laser Controller

LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller

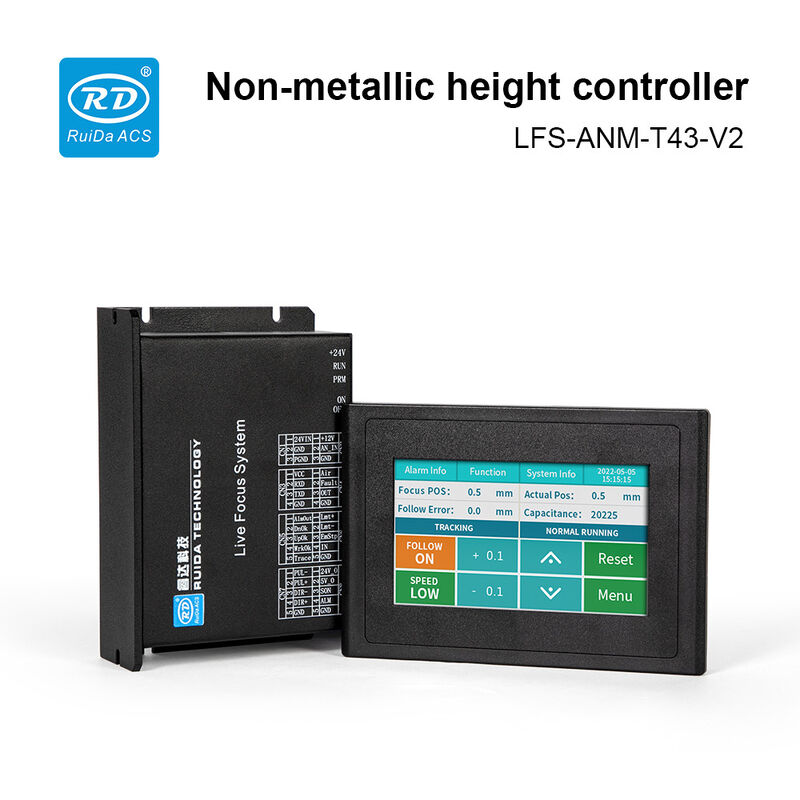

Ruida Controller LFS-ANM-T43-V2 Non-metal Height Controller V2
LFS-ANM-T43-V2 automatic height controller focuses on non-metal cutting developed by Shenzhen Ruida Technology Co., LTD. Equipped with 4.3" industrial TFT color touch screen, it can optimize the operation interface and pulse control method, display the status and data in real time, heighten the motion speed and response speed of the controller and realize the accurate automatic height control.
Technical Specifications
Parameter LFS-ANM-T43-V2
Panel 4.3" touch screen
Communication interface Ethernet, RS232
Control method Pulse
Motor Servo motor and stepping motor
Control output 1MHz
Laser cutting Non-metal cutting
Sampling frequency 1000Hz
Speed 300mm/s
Detection distance ±35mm
Dynamic follow accuracy ≤0.1mm
Real-time adjustment of focus Support
Focal length adjusts step 0.1mm
Firmware Online remote upgrade of U disk
Language Chinese, English

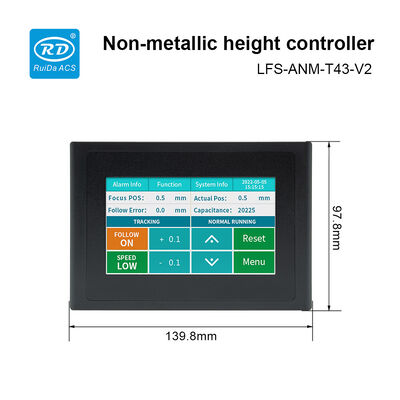

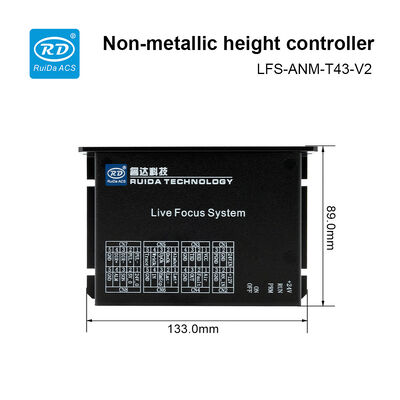

Size Panel: L139.8mm*W97.8mm*H22.2mm Mainboard: L133mm*W89mm*H38mm
Key Features
  • Automatic Z-Axis Adjustment: The system automatically adjusts the height of the laser head relative to the workpiece, ensuring optimal focus for cutting or engraving.
  • Material Thickness Detection: It can detect variations in material thickness, allowing for consistent cutting quality across uneven surfaces.
  • Improved Cutting Quality: By maintaining the correct distance between the laser and the material, it enhances the precision and quality of the cuts, minimizing issues like burning or poor engraving.
  • User-Friendly Operation: The system allows operators to set parameters easily, making it accessible for users with varying levels of experience.
  • Safety Features: By preventing the laser head from crashing into the material, it protects both the machine and the operator.

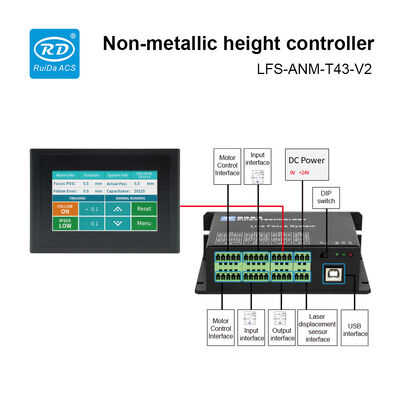

Product Images
LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 0 LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 1
Application Area
It mainly focuses on the non-metal curved cutting and engraving, such as curved and cylindrical engraving.
LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 2
Software MetalCute (Free)
LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 3 LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 4
Product Certification
LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 5
Package List
LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 6 LFS-ANM-T43-V2 Non Metal Height Laser Controller 1MHz Ruida Laser Controller 7
