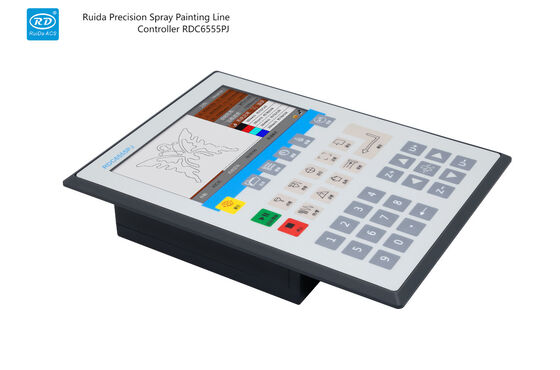

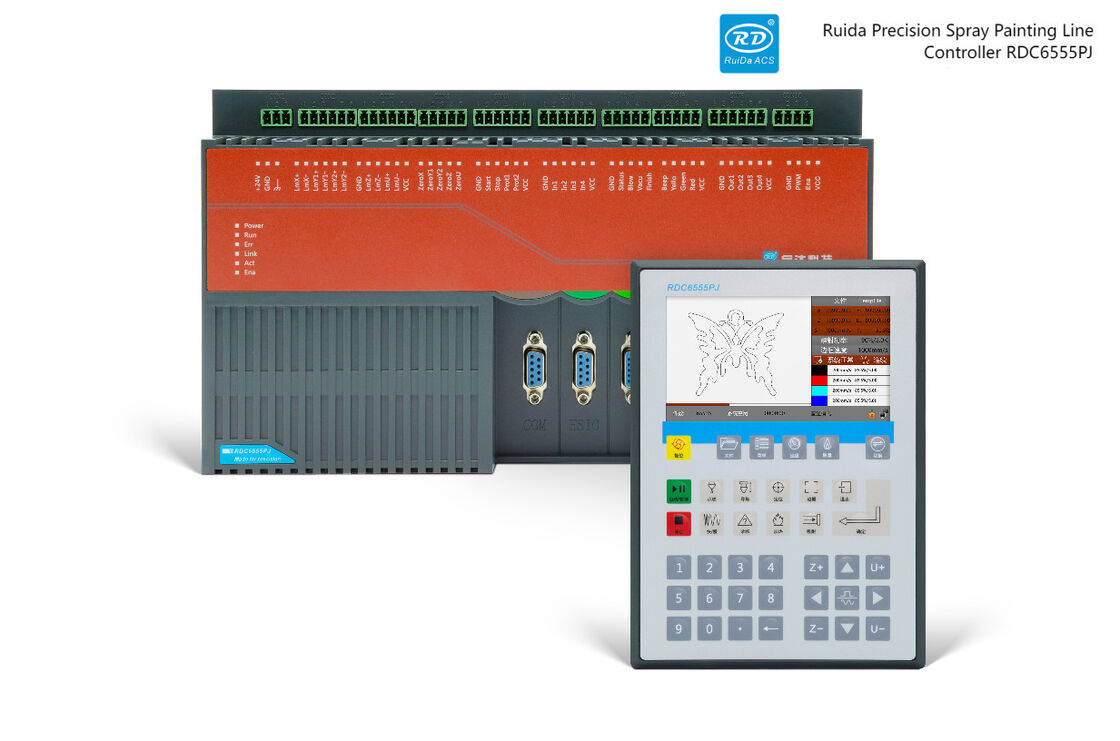

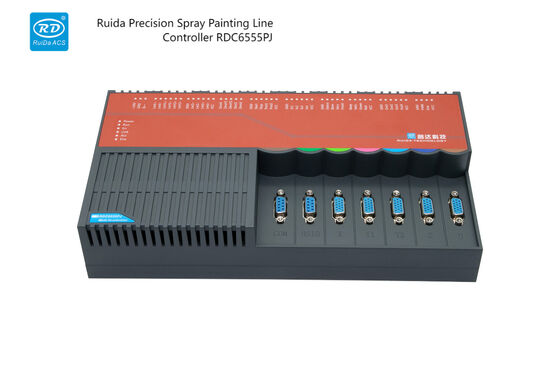

RDC6555PJ Ruida Controller Precision Spray Painting Line Controller 5 Axis

Large Image : RDC6555PJ Ruida Controller Precision Spray Painting Line Controller 5 Axis

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDC6555PJ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

RDC6555PJ Ruida Controller Precision Spray Painting Line Controller 5 Axis

Description

Nozzle:	Support Solenoid And Piezoelectric Valves	Y Axis Double Drive:	Support Dual Drive Output And Have Synchronous Protection Function
Spray Control:	Support The Synchronous Output Of The Encoder Position	Axis:	5
Nozzle Channel:	1	Panel:	5'' Color Screen
Feeding:	Support	Camera:	None
Light Source System:	None	Size:	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm
Language:	12 Languages Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, And Italian	Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit
Highlight:	Precision Spray Painting Line Controller , Ruida Controller RDC6555PJ , 5 Axis Spray Painting Line Controller

Ruida Controller RDC6555PJ Precision Spray Painting Line Controller 5 Axis

Product Description

The RDC6555PJ system represents a state-of-the-art solution for glue spraying and line drawing applications. Its advanced features, including a user-friendly HMI, enhanced motion control, and superior spraying control algorithm, make it an ideal choice for achieving high-quality results in a variety of industrial settings. Additionally, its expandable IO interfaces and compatibility with PJWorks software ensure versatility and ease of integration with existing systems and equipment.

Technical Specifications

Parameter	RDC6555PJ
Nozzle	Support solenoid and piezoelectric valves
Y axis double drive	Support dual drive output and have synchronous protection function
Spray Control	Support the synchronous output of the encoder position
Axis	5
Nozzle Channel	1
Communication interface	Ethernet, USB
Panel	5" color screen
Feeding	Support
Camera	None
Light source system	None
Installment encryption	Support
Onboard clock	Support
Firmware upgrade	Remote upgrade of panel and mainboard program
Software	PJWorks
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language	12 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, and Italian
Size	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm

Key Features

Support position follow spray control
Support Absorb function
Support Blow function
Support tri-color light and buzzer prompt
Support high power and frequency control signal output
Support high frequency differential control signal output and TTL level
Support peripheral serial interface communication

Application Fields

Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.

Software

PJWorks

Product Certification
