Metal Closed Loop Capacitive Laser Height Controller Ruida Laser Controller

Large Image : Metal Closed Loop Capacitive Laser Height Controller Ruida Laser Controller

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	LFS-VM-T43

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

Metal Closed Loop Capacitive Laser Height Controller Ruida Laser Controller

Description

Brand:	RUIDA	Communication:	Ethernet, RS232
Control Method:	High Speed Closed Loop	Motor:	Servo Motors
Control Output:	Analog Voltage +/-10V	Laser Cutting:	Metal Cutting
Sampling Frequency:	1000Hz	Speed:	800mm/s
Detection Distance:	0.1mm-10mm	Dynamic Follow Accuracy:	≤0.1mm
Highlight:	Metal Laser Height Controller , Laser Height Controller LFS-VM-T43 , Capacitive Ruida Laser Controller

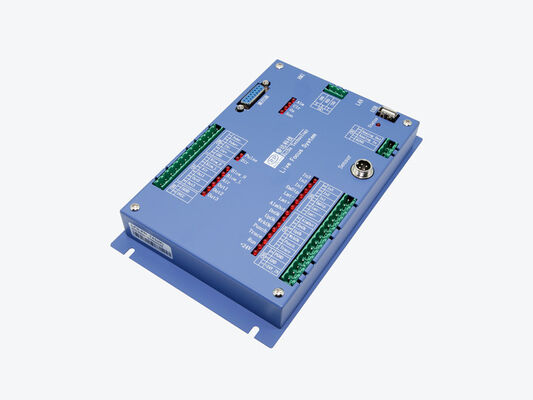

Ruida Metal Closed Loop Capacitive Height Controller LFS-VM-T43

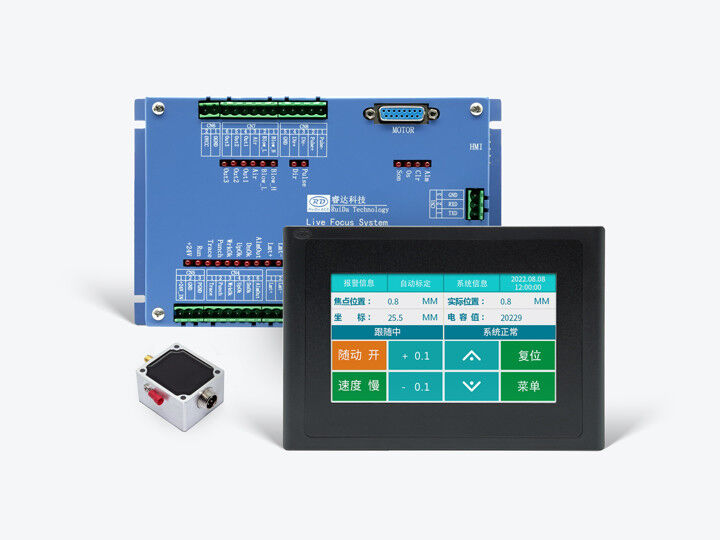

The LFS-VM-T43 high-speed closed-loop live focus controller is a system developed by Ruida Technology for metal cutting systems. It features a 4.3-inch industrial TFT color touch screen with real-time status and data display, and a user-friendly interface. The controller utilizes high-performance amplifiers and professional anti-interference design to significantly increase motion speed and response time, achieving accurate automatic height control.

Key Features:

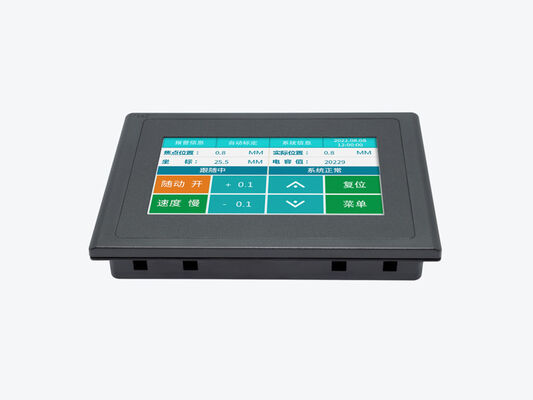

4.3-Inch Industrial TFT Color Touch Screen: User-friendly interface with real-time status and data display for easy operation and monitoring.
High-Speed Motion & Response: High-performance amplifiers and anti-interference design enhance motion speed and controller response.
Automatic Height Control: Precise height adjustment for optimized metal cutting performance.
Closed-Loop Control System: Continuous monitoring and adjustment of height for improved cutting quality and consistency.
Anti-Interference Design: Improved stability and reliability in challenging industrial environments.

Technical Specifications:

Brand	RUIDA
Model	LFS-VM-T43
Touch Screen	4.3"
Real-time adjustment of focus	Support
Motor	Servo motors
Control output	Analog voltage +/-10V
Laser cutting	Metal cutting
Sampling frequency	1000Hz
Control speed	800mm/s
Detection distance	0.1mm-10mm
Focal length adjusts step	0.1mm
Firmware upgrade	Online remote upgrade of U disk

Our Services:

Product Customization: Tailored solutions for specific metal cutting applications with adjustable settings.
Installation and Setup: Professional on-site installation or remote setup assistance.
Technical Support: 24/7 assistance for operational issues and troubleshooting.
Firmware Updates: Remote upgrades to keep the system current with performance improvements.
Spare Parts: Availability of high-quality replacement components.
Customer Support: Feedback collection and satisfaction surveys to improve our offerings.
Remote Monitoring: Real-time performance tracking to prevent potential issues.
After-Sales Support: Comprehensive warranty and easy return/exchange policies.
