High Speed Motion And Response Laser Height Controller For Precise Height Adjustment

Large Image : High Speed Motion And Response Laser Height Controller For Precise Height Adjustment

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	LFS-PM-T43

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

High Speed Motion And Response Laser Height Controller For Precise Height Adjustment

Description

Brand:	RUIDA	Model:	LFS-PM-T43
Control Method:	Pulse	Motor:	Servo Motor And Stepping Motor
Control Output:	1MHz	Laser Cutting:	Metal And Non-metal Mixed Cutting
Sampling Frequency:	1000Hz	Speed:	600mm/s
Detection Distance:	0.1mm-10mm	Dynamic Follow Accuracy:	≤0.1mm
Highlight:	High Speed Laser Height Controller , Laser Laser Height Adjustment Controller , Precise Laser Height Controller

High Speed Motion And Response Laser Height Controller For Precise Height Adjustment

LFS-PM-T43

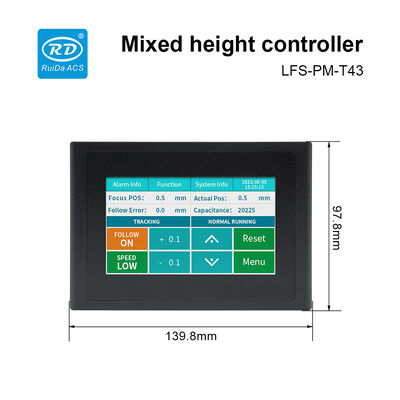

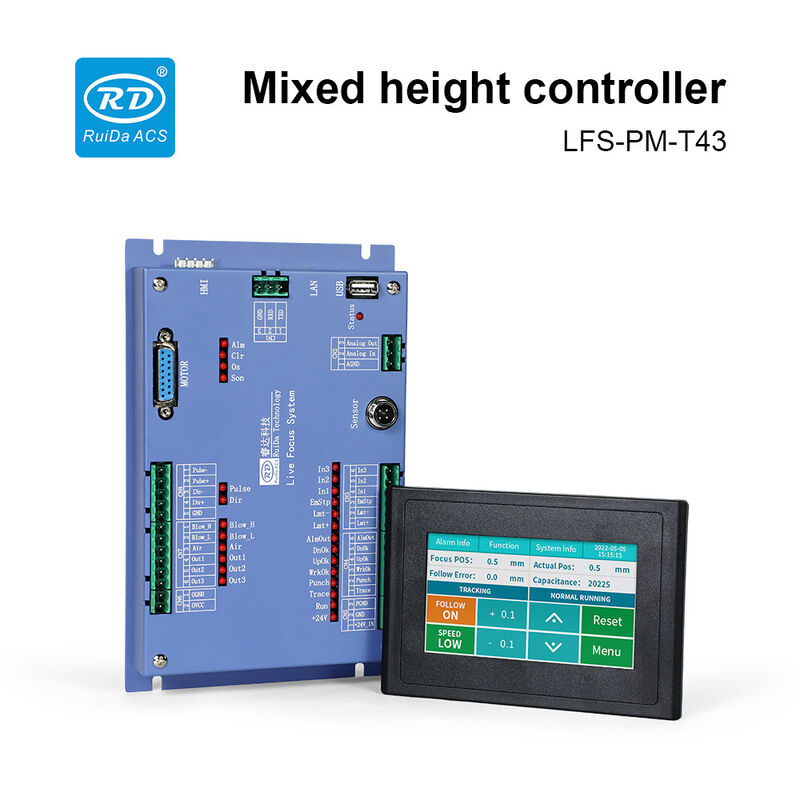

The LFS-PM-T43 automatic height controller is specially designed for mixed metal and non-metal cutting applications by Shenzhen Ruida Technology Co., LTD. Featuring a 4.3" industrial TFT color touch screen with intuitive interface, it provides real-time status and data visualization. The high-performance amplifier and professional anti-interference design ensure rapid motion response and precise automatic height control.

Key Features

4.3" Industrial TFT Color Touch Screen: User-friendly interface with real-time status and data display
Automatic Height Control: Precise adjustments for optimal cutting quality in mixed material applications
High-Speed Motion and Response: Enhanced by high-performance amplifier for improved cutting efficiency
Professional Anti-Interference Design: Ensures stable operation in demanding industrial environments
Real-Time Data Display: Immediate feedback on system status and cutting parameters

Technical Specifications

Brand	RUIDA
Model	LFS-PM-T43
Touch Screen	4.3"
Real-time adjustment of focus	Support
Motor	Servo motor and stepping motor
Control output	1MHz
Laser cutting	Metal and non-metal mixed cutting
Sampling frequency	1000Hz
Control speed	600mm/s
Detection distance	0.1mm-10mm
Focal length adjusts step	0.1mm
Firmware upgrade	Online remote upgrade of U disk

Product Images
