Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed

Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed
Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed

Large Image :  Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE, FCC, RoHS
Model Number: LFS-VM-T43
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed

Description
Panel: 4.3'' Touch Screen Communication Interface: Ethernet, RS232
Control Method: High Speed Closed Loop Motor: Servo Motor
Control Output: Analog Voltage +/-10V Laser Cutting: Metal Cutting
Sampling Frequency: 1000Hz Speed: 800mm/s
Detection Distance: 0.1mm-10mm Dynamic Follow Accuracy: ≤0.1mm
Real-time Adjustment Of Focus: Support Focal Length Adjusts Step: 0.1mm
Highlight:

LFS-VM-T43 Laser Height Controller

,

Laser Height Controller 800mm/s

,

Automatic Height Control System

Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed
Product Description

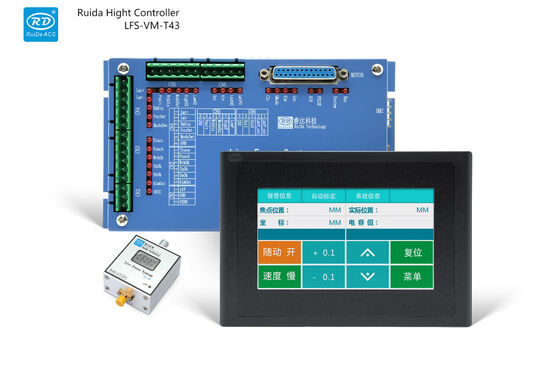

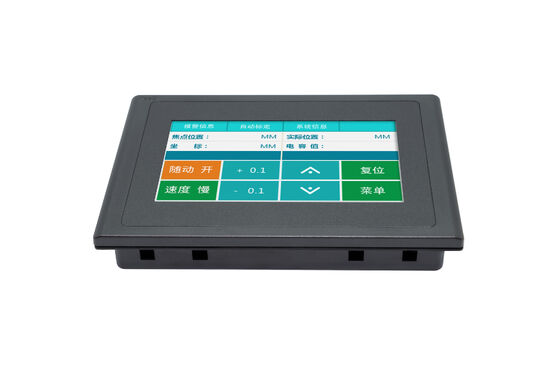

The LFS-VM-T43 high-speed closed-loop live focus controller is a system developed by Ruida Technology for metal cutting systems. It features a 4.3-inch industrial TFT color touch screen with real-time status and data display, and friendly UI. The system uses high-performance amplifiers and professional anti-interference design to significantly increase motion speed and response of the height controller, achieving accurate automatic height control.
Parameter LFS-VM-T43
Panel 4.3" touch screen
Communication interface Ethernet, RS232
Control method High speed closed loop
Motor Servo motor
Control output Analog voltage +/-10V
Laser cutting Metal cutting
Sampling frequency 1000Hz
Speed 800mm/s
Detection distance 0.1mm-10mm
Dynamic follow accuracy ≤0.1mm
Real-time adjustment of focus Support
Focal length adjusts step 0.1mm
Firmware upgrade Online remote upgrade of U disk
Language Chinese, English
Size Panel: L139.8mm*W97.8mm*H22.2mm
Mainboard: L210mm*W130mm*H28mm
Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed 0
Key Features
  • Capacitive sensing technology for automatic calibration function and compatibility with any cutting head
  • Multiple protection functions including collision alarm, limit protection and servo alarm
  • Online modification and real-time position detection of focus position (0-9.9mm capacitance detection range)
  • Real-time motion status display of the cutting head and alarm information prompt
  • Customizable lifting height and speed settings for different cutting methods
  • Supports step pierce, low voltage pierce, step pierce, frog and lifting functions when working with Ruida controller
Application Fields
  • Automatic Z-Axis Adjustment: Maintains optimal laser head height relative to workpiece
  • Material Thickness Detection: Ensures consistent cutting quality across uneven surfaces
  • Improved Cutting Quality: Maintains correct distance to enhance precision and minimize issues
  • User-Friendly Operation: Easy parameter setting for users of all experience levels
  • Safety Features: Prevents laser head from crashing into material
Product Certification
Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed 1
Shipping and Payment
Ruida LFS-VM-T43 Laser Height Controller Automatic Height Control System 800mm/s Speed 2
