Ruida RDC6555PJ Laser Height Controller Precision Spray Painting Line Control Card

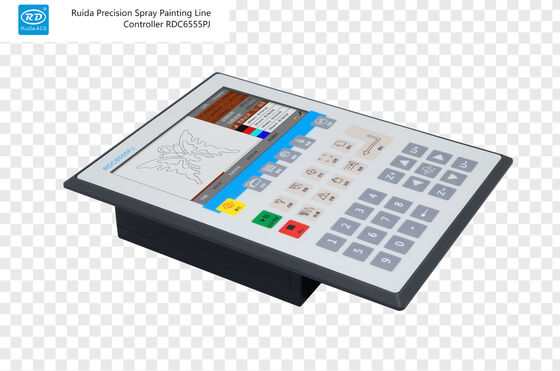

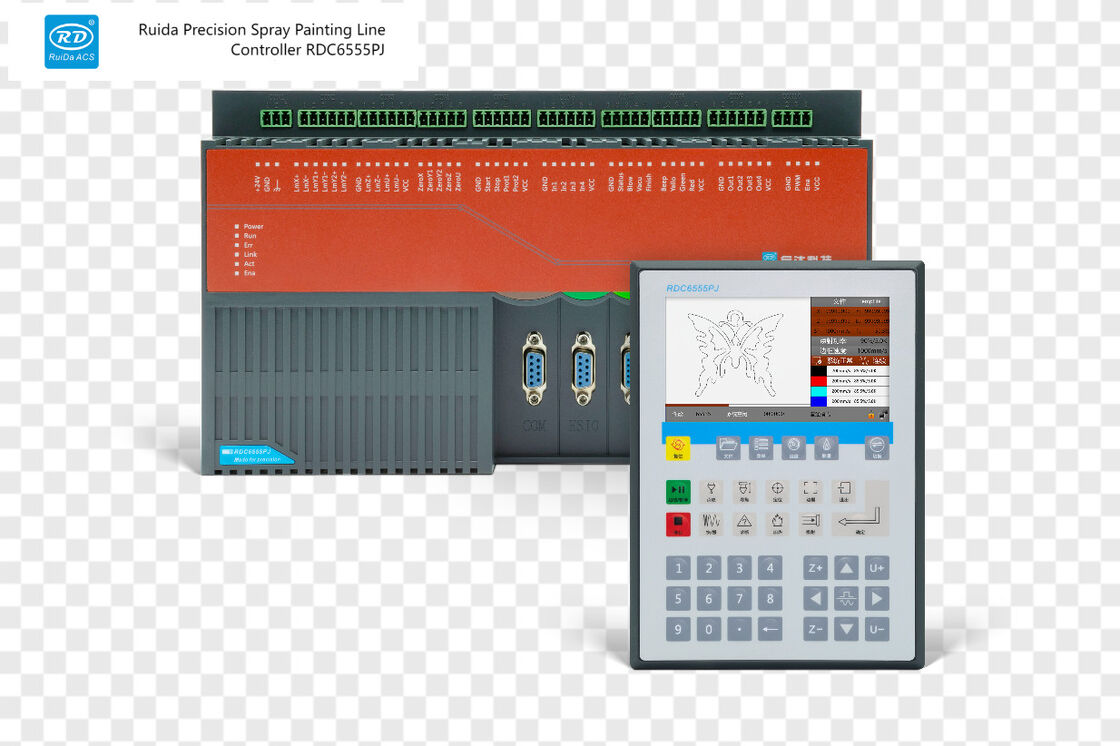

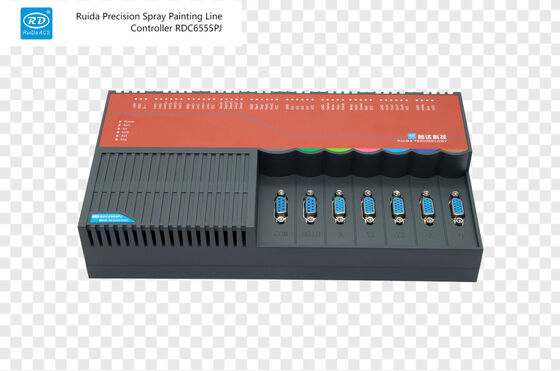

Large Image : Ruida RDC6555PJ Laser Height Controller Precision Spray Painting Line Control Card

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDC6555PJ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDC6555PJ Laser Height Controller Precision Spray Painting Line Control Card

Description

Nozzle:	Support Solenoid And Piezoelectric Valves	Y Axis Double Drive:	Support Dual Drive Output And Have Synchronous Protection Function
Spray Control:	Support The Synchronous Output Of The Encoder Position	Axis:	Five
Nozzle Channel:	One	Panel:	5-inch Color Screen
Feeding:	Support	Camera:	None
Light Source System:	None	Size:	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm
Firmware Upgrade:	Remote Upgrade Of Panel And Mainboard Program	Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit
Highlight:	RDC6555PJ Laser Height Controller , Precision Spray Painting Line Controller , Ruida Laser Height Controller

Ruida RDC6555PJ Laser Height Controller Precision Spray Painting Line Control Card

Product Description

The RDC6555PJ system is a cutting-edge solution designed for glue spraying and line drawing applications. Its user-friendly HMI simplifies operation while enhanced motion control ensures precise movements. The superior spraying control algorithm optimizes glue application for high-quality results.

Key Features

User-friendly HMI for simplified operation
Enhanced motion control for precise movements
Superior spraying control algorithm
Expandable IO Interfaces for system integration
Compatibility with PJWorks Software

Technical Specifications

Parameter	RDC6555PJ
Nozzle	Support solenoid and piezoelectric valves
Y axis double drive	Support dual drive output with synchronous protection
Spray Control	Support synchronous output of encoder position
Axis	5
Nozzle Channel	1
Communication interface	Ethernet, USB
Panel	5" color screen
Operating system	WinXP, Win7, Win8, Win10 (32-bit or 64-bit)
Language	12 languages supported
Size	Panel: 202×145×42.1mm; Mainboard: 270×157×55mm

Key Functions

Negative Limit and Origin Signal support
Encoder Signal Detection for real-time monitoring
Follow Error and Synchronous Error Alarms
External control functions (start, pause/continue, stop)
Safety features including raster and cover protection
4 general input IO interfaces
Position Follow Spray Control
Absorb and Blow functions
Tri-Color Light and Buzzer Prompt
High Power and Frequency Control

Application Fields

Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.

Software

PJWorks

Product Certification

Shipping and Payment

Tag:

Contact Person: Ms. Cyan LIANG

Tel: +8613410708106
