Double Beam Large Vision Spray Controller Ruida Controller RDC6555PJ-DFM-RD

Large Image : Double Beam Large Vision Spray Controller Ruida Controller RDC6555PJ-DFM-RD

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDC6555PJ-DFM-RD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

Double Beam Large Vision Spray Controller Ruida Controller RDC6555PJ-DFM-RD

Description

Nozzle:	Support Solenoid And Piezoelectric Valves	Y Axis Double Drive:	Support Dual Drive Output And Have Synchronous Protection Function
Spray Control:	Support The Synchronous Output Of The Encoder Position	Axis:	5
Nozzle Channel:	1	Panel:	5'' Color Screen
Feeding:	Support	Camera:	None
Light Source System:	None	Installment Encryption:	Support
Firmware Upgrad:	Remote Upgrade Of Panel And Mainboard Program	Software:	PJWorks
Highlight:	Large Vision Spray Controller , Ruida Controller RDC6555PJ-DFM-RD , Double Beam Spray Controller

Ruida Controller RDC6555PJ-DFM-RD Double Beam Large Vision Spray Controller

Product Description

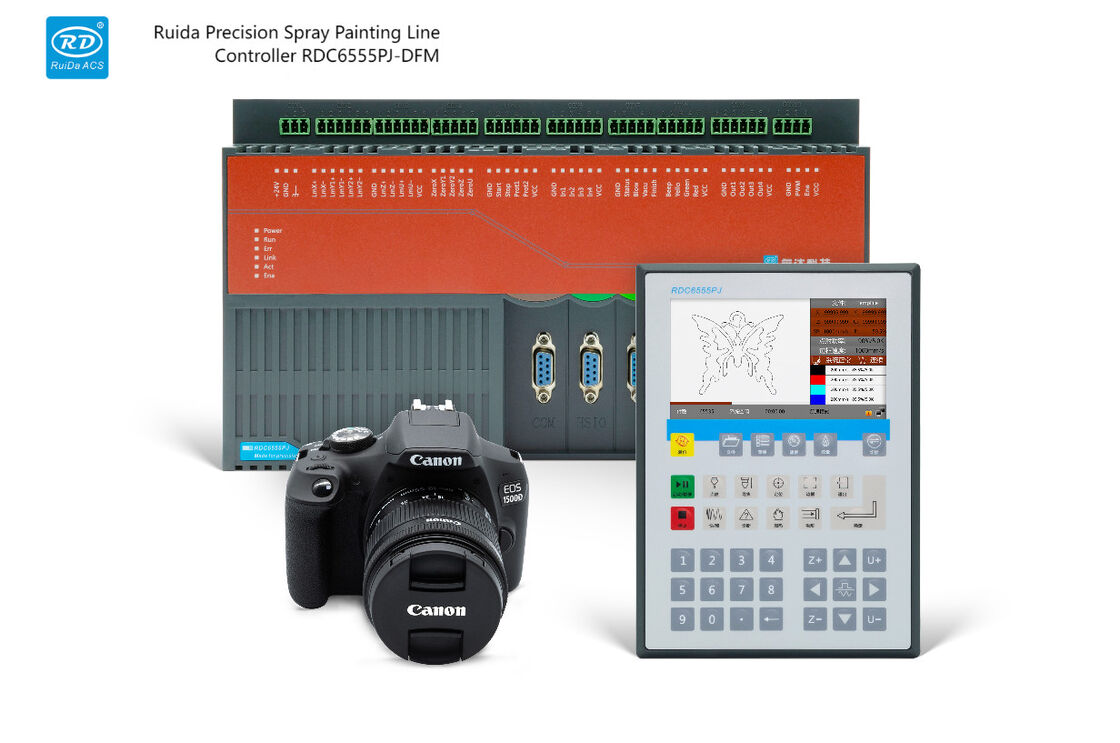

The RDC6555PJ-DFM-RD system is a sophisticated control solution for glue spraying and line drawing, developed by Ruida Technology. Featuring an intuitive human-machine interface, it is designed for user-friendliness. The system offers enhanced motion control capabilities, ensuring comprehensive and precise operation. Its advanced spraying control algorithm significantly improves accuracy and quality in spraying tasks. Additionally, the controller includes a variety of general and dedicated IO control interfaces for added flexibility and is fully compatible with PJWorks software, facilitating seamless integration and extended functionality.

Technical Specifications

Parameter	RDC6555PJ-DFM-RD
Nozzle	High power control output, directly control solenoid valves and piezoelectric valves
Y axis double drive	Support dual drive output and have synchronous protection function
Glue spray Control	Support the adjustment of frequency of the glue spray point and quantity of the glue spray; support the setting of glue or ink spray process parameter and synchronous follow function of quantity of the glue spray
Axes	Five
Nozzle Channel	One
External protection input	2 channels
Tri-color light	Support, buzzer
Encoder feedback	Support
Z axis control	Support Z axis lifting and falling and real-time adjustment
U axis control	Support feeding axis
Real-time height control	Optional, automatic height control system, realize non-plane spray glue processing
Visual performance	Optional, feature positioning/ Mark point/ Large format contour extraction
Installment encryption	Support
Onboard clock	Support
Firmware upgrade	Remote upgrade of panel and mainboard program
Software	PJWorks
Language	12 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, and Italian

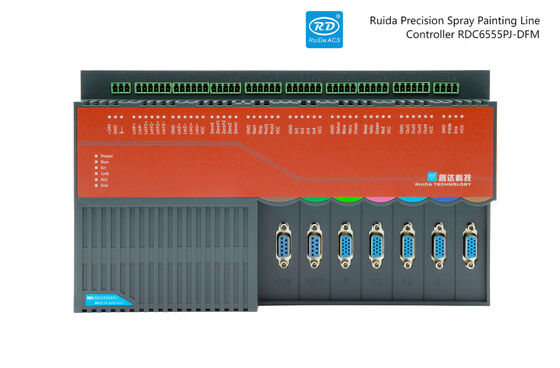

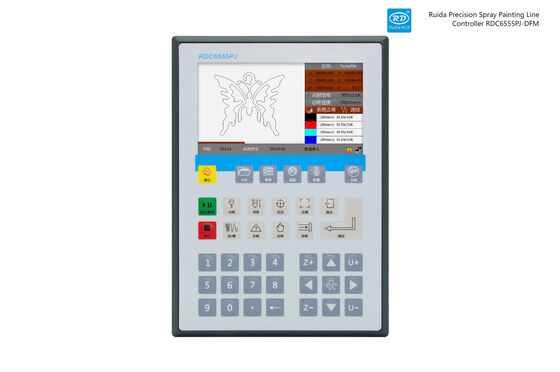

Size	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm

Key Features

Capable of spray control based on position tracking
Incorporates an absorption function
Features a blowing capability
Equipped with tri-color LED indicators and buzzer alerts
Supports output of high-power and high-frequency control signals

Application Fields

Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.

Software

PJWorks

Product Certification
