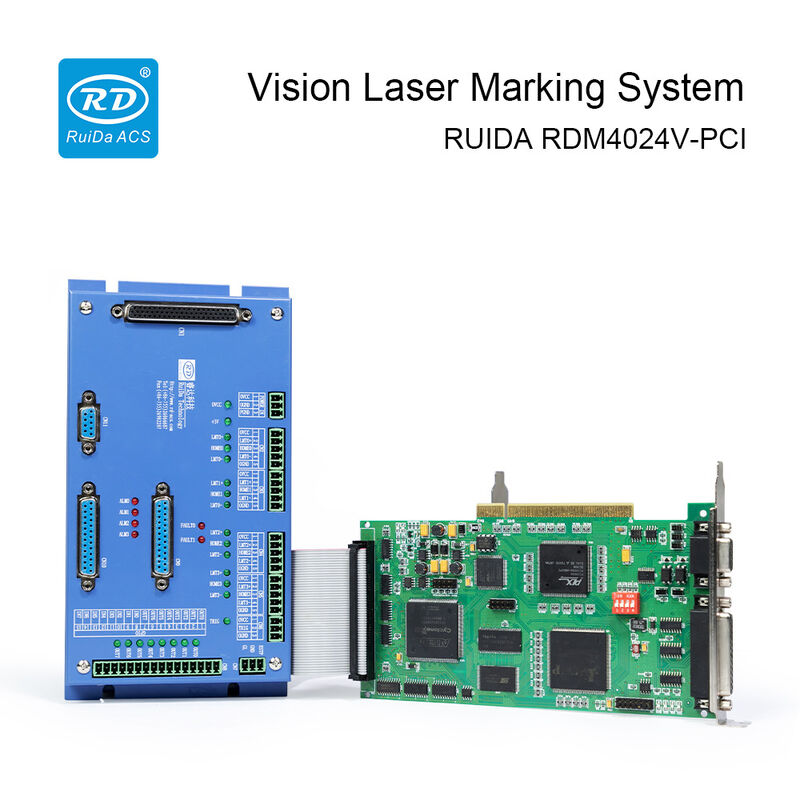

CO2 Fiber And UV Laser Marking Controller Marking Control Card RUIDA RDM4024V-PCI

Large Image : CO2 Fiber And UV Laser Marking Controller Marking Control Card RUIDA RDM4024V-PCI

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDM4024V-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

CO2 Fiber And UV Laser Marking Controller Marking Control Card RUIDA RDM4024V-PCI

Description

Brand:	RUIDA	Laser Source:	CO2, Fiber And UV
Communication:	PCI	Single Feature Positioning Recognition Time:	≤50ms
Axis Control:	Pulse+dir Or +/-pulse, Differential Double-ended Output	Image Processing:	>25 Frames/sec
Software:	RD Mark Vision	Camera:	1.3, 3, 5, 12 And 20 Megapixels Industrial Network Camera Are Available.
Language:	Chinese, English	Light Source:	Ring,coaxial And Bar Light Source Are Optional
Highlight:	CO2 Laser Marking Controller , PCI Laser Marking Controller , RUIDA RDM4024V-PCI

CO2 Fiber And UV Laser Marking Controller Marking Control Card RUIDA RDM4024V-PCI

RUIDA RDM4024V-PCI High-Performance CO2 Laser Controller For Marking

Description of RDM4024V-PCI:

The RDM4024G-PCI marking control card based on the PCI bus is a high-performance motion controller specially developed by Ruida Technology for laser galvanometer applications, which complies with the standard PCI specification standards. The hardware platform is based on an industrial-grade DSP + FPGA architecture, and combines excellent galvanometer control algorithms and laser synchronous control algorithm to achieve excellent trajectory control of galvanometer. The data adopts bi-directional DMA operation, thus heightening the efficiency of data communication.

Product Features:

Advanced graphics and image positioning and target feature learning realize precision vision positioning marking.
Worked with an independent application software RDMarkVision, integrated automatic correction algorithm for visual aided galvanometer, support visual positioning recognition marking, assembly line visual anti-duplicate identification marking and visual custom track motion recognition.
Equipped with comprehensive optical fixture and light source systems.
Support feature matching, gray matching, custom template and other visual positioning methods.
Support CO2, UV and fiber laser marking models.

Software RDMark Vision (Free)

Support PLX, DFX, DST, DSB, SVG, BMP, JPG and other file formats import, display and edit functions, support image file import and processing. Support simplified Chinese, traditional Chinese, English and other languages.

Technical Parameters:

Parameters	RDM4024V-PCI
Laser source	CO2, fiber and UV

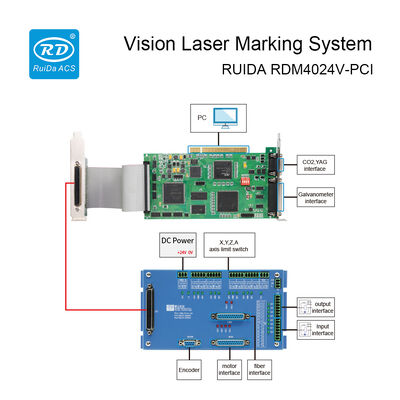

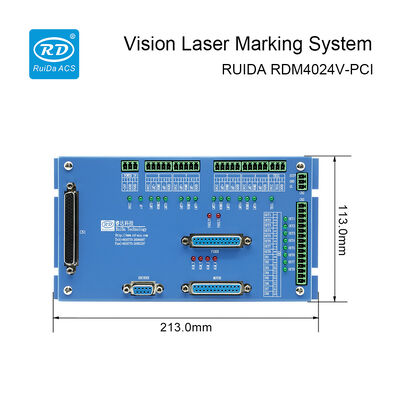

Axis	2 motion axes + 2 galvanometer shafts or 4 motion axes + 2 galvanometer shafts
Communication	PCI
Axis control	Pulse+dir or +/-pulse, differential double-ended output
Camera	1.3, 3, 5, 12 and 20 megapixels industrial network camera are available.
Light source	Circular light source, OPDX and strip source are available.
System function	Feature matching, gray matching, custom template visual positioning marking
Encryption	Support
Firmware	Remote upgrade of mainboard program
Software	RDMarkVision
Language	Chinese, English
