Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Large Image : Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM4024P-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Description

Laser Source:	CO2, Fiber And UV	Axis:	2 Motion Axes + 2 Galvanometer Shafts Or 4 Motion Axes + 2 Galvanometer Shafts
Communication Interface:	PCI	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
Camera:	1.3, 3 And 5 Megapixels Industrial Network Camera Are Available	Light Source System:	Circular Light Source, OPDX And Strip Source Are Available
System Function:	Mark Point Positioning, Array Marking, Splicing Marking And Cutting Marking For Different Layers	Encryption:	Support
Firmware Upgrade:	Remote Upgrade Of Mainboard Program	Software:	RDAutoMarkPointVision
Highlight:	Laser Marking And Cutting Controller , Ruida RDM4024P-PCI , Marking And Cutting Control System

Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Product Description

The Ruida RDM4024P-PCI is a high-performance motion controller featuring PCI interface, industrial cameras, and advanced image processing algorithms. Equipped with ring or coaxial light sources and MARK point positioning technology, this controller supports the RDAutoMarkPointVision software for expanded functionality. It offers precise control with four motion axes, feeding control, Z-axis movement, and extensive laser interfaces with external IO resources for seamless integration with auxiliary components.

Technical Specifications

Parameter	RDM4024P-PCI
Laser source	CO2, fiber and UV
Axis	2 motion axes + 2 galvanometer shafts or 4 motion axes + 2 galvanometer shafts
Communication	PCI
Axis control interface	Pulse + dir or +/- pulse, differential two-terminal output
Camera	1.3, 3 and 5 megapixels industrial network camera are available
Light source system	Circular light source, OPDX and strip source are available
System function	Mark point positioning, array marking, splicing marking and cutting marking for different layers
Software	RDAutoMarkPointVision
Installment encryption	Support
Firmware upgrade	Remote upgrade of mainboard program
Operating system	Win7, Win8, Win10, 32-bit or 64-bit
Language	Chinese and English

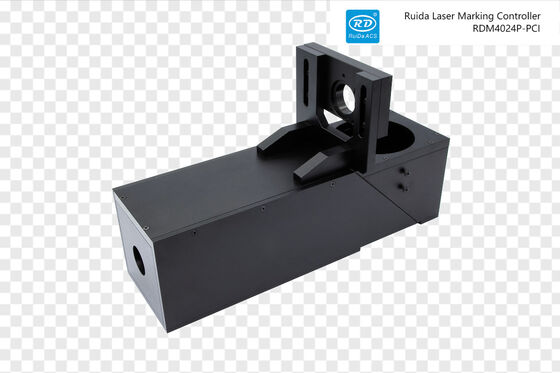

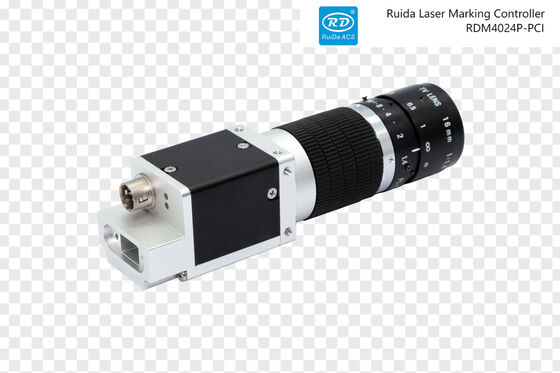

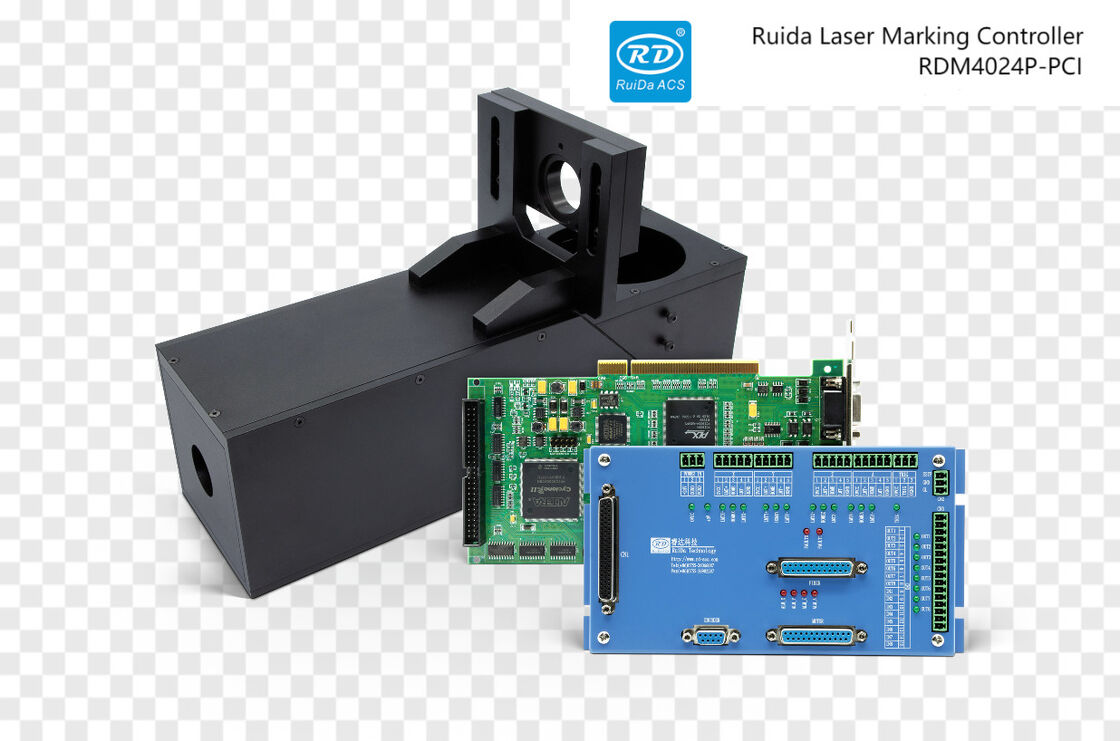

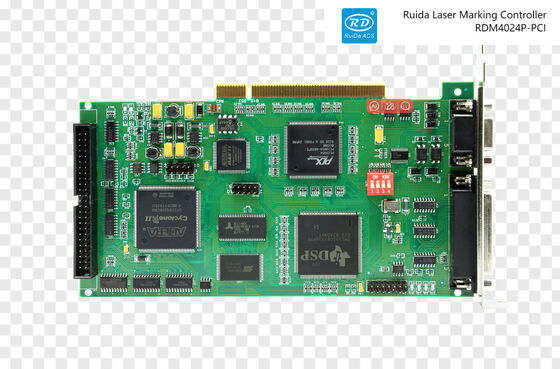

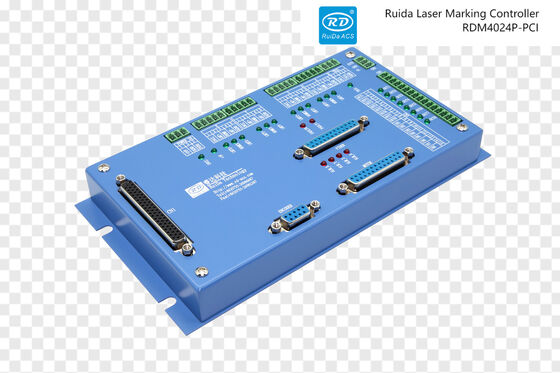

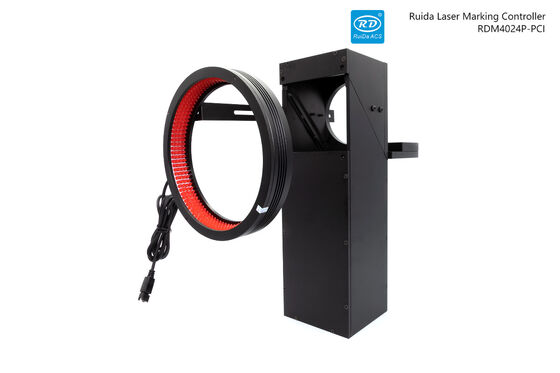

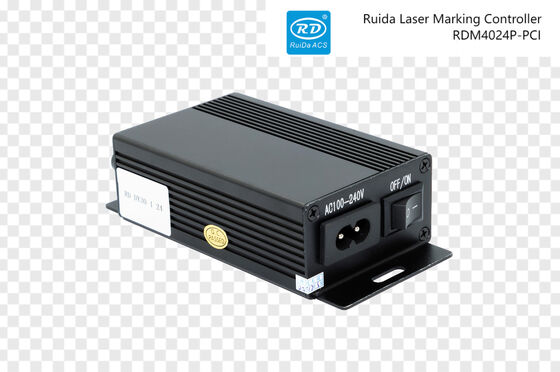

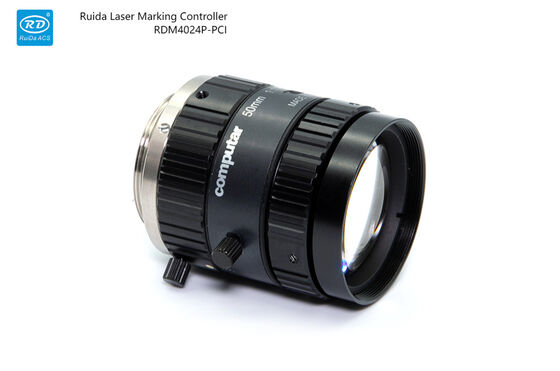

Product Image

Application Fields

With CO2 laser: Ideal for marking wood, leather, plastics, and paper
With fiber laser: Perfect for stainless steel, aluminum oxide, copper oxide, and other alloys in jewelry, electronics, batteries, and metal components
With UV laser: Designed for precision marking on plastics, PVC, circuit boards, cables, chips, LCD screens, glass, and food packaging

Software

RDAutoMarkPointVision

Product Certification

Shipping and Payment
