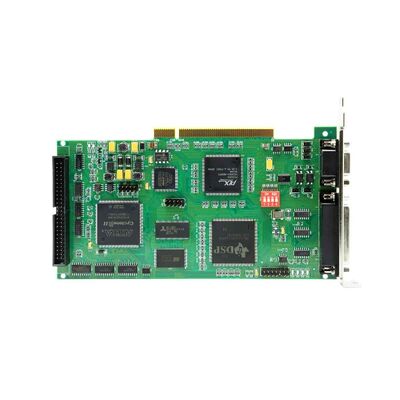

Ruida 4 Axis Laser Marking And Cutting Machine Controller RDM4024C-PCI

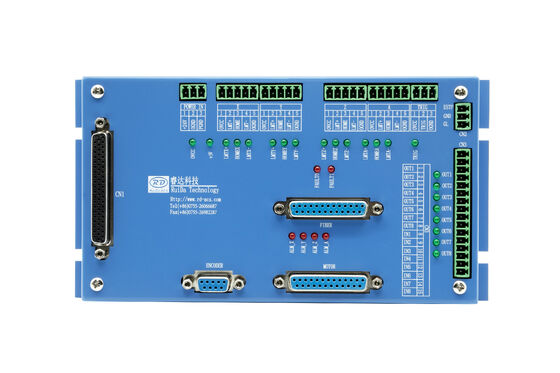

Large Image : Ruida 4 Axis Laser Marking And Cutting Machine Controller RDM4024C-PCI

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM4024C-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida 4 Axis Laser Marking And Cutting Machine Controller RDM4024C-PCI

Description

Laser:	CO2, Fiber And UV	Axes:	4 Motion Axes + 2 Galvanometer Shafts
Communication:	PCI	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
System Function:	Array Marking, Intelligent Segmentation Splicing Marking, And Cutting Marking For Different Layers	Installment Encryption:	Support
Firmware Upgrade:	Remote Upgrade Of Mainboard Program	Software:	RDMarkCam
Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit	Language:	Chinese And English
Highlight:	Laser Cutting Machine Controller RDM4024C-PCI , 4 Axis Laser Marking Machine Controller , Ruida Laser Marking Machine Controller

Ruida 4 Axis Laser Marking And Cutting Machine Controller RDM4024C-PCI

Product Description

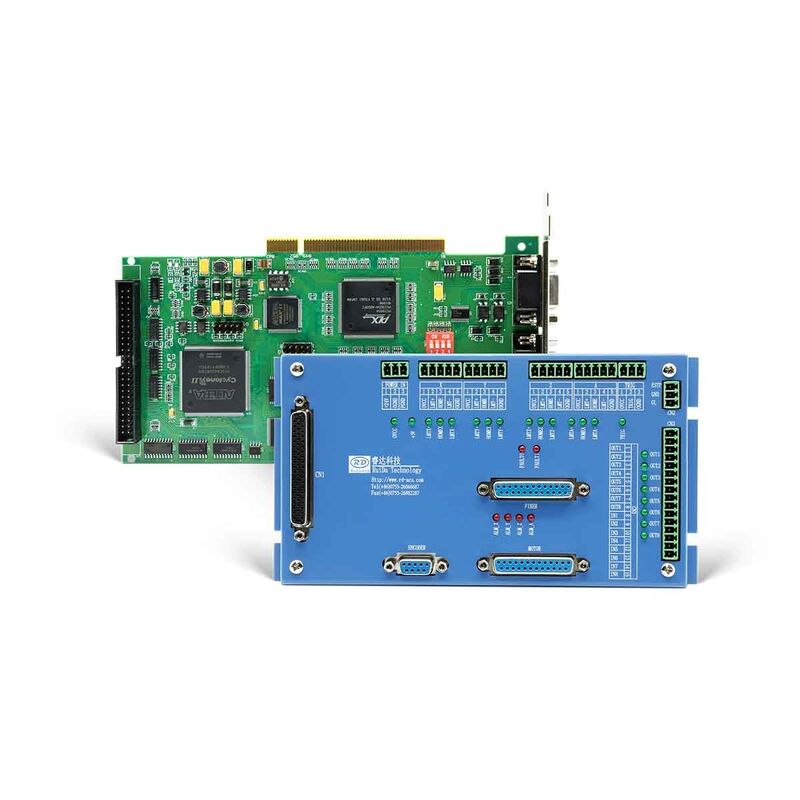

Ruida Laser Controller RDM4024V-PCI Laser Marking Controller

Description Of Ruida Controller RDM4024V-PCI

This controller is specifically designed for large format array marking and large format splicing marking applications. It combines motor motion control with galvanometer motion control to handle complex motion requirements. The controller features complete galvanometer marking control functionality along with multi-axis motor control capabilities, including single-axis movement and multi-axis interpolation movement, plus relative laser synchronization control.

Parameter	RDM4024V-PCI
Laser source	CO2, fiber and UV
Axis	4 motion axes + 2 galvanometer shafts
Communication interface	PCI
Axis control interface	Pulse + dir or +/- pulse, differential two-terminal output
System function	Array marking, intelligent segmentation splicing marking, and cutting marking for different layers
Installment encryption	Support
Firmware upgrade	Remote upgrade of mainboard program
Software	RDMarkCam
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language	Chinese and English

Key Function

Application Fields

With CO2 laser: Suitable for marking wood, leather, plastics, and paper
With fiber laser: Ideal for marking stainless steel, aluminum oxide, copper oxide and other alloys, including jewelry, metals, electronic components, batteries, chargers, and switches
With UV laser: Perfect for precision marking in electronics industry including plastics, PVC, circuit boards, cables, chips, LCD screens, glass, food packaging, etc.

Software

RDMarkCam

Product Certification

Shipping and Payment
