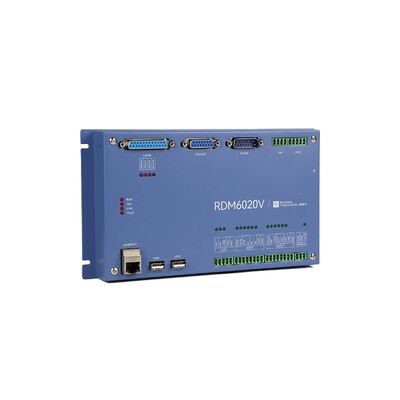

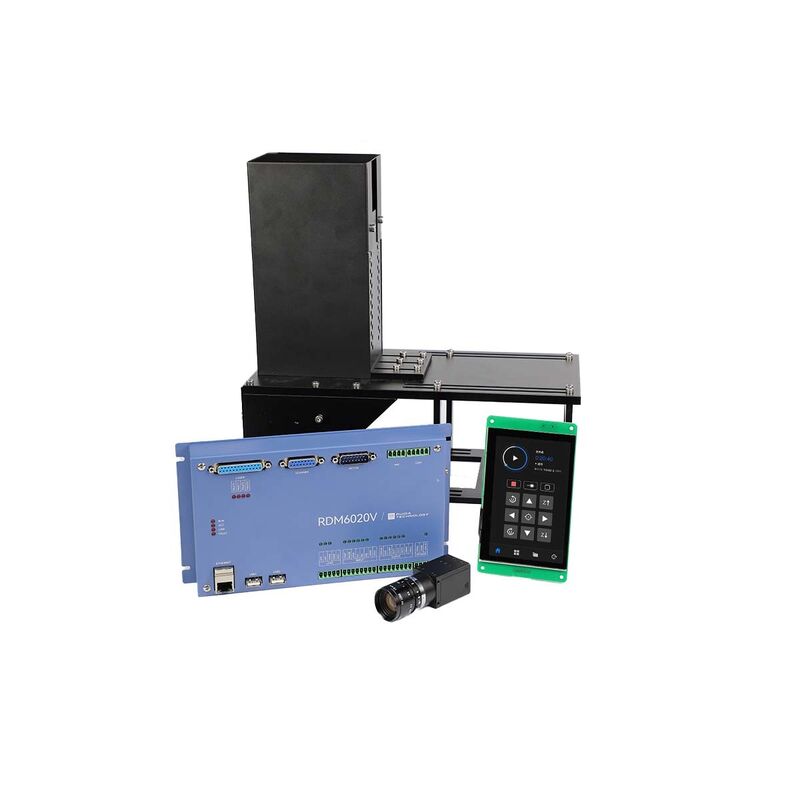

CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V

Large Image : CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM6020V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V

Description

Laser Source:	CO2, Fiber And UV	Axes Control:	Pulse+dir Or +/-pulse, Differential Double-ended Output
Galvanometer Protocol:	XY2-100	Input/output:	6 Channels Input/output
Installment Encryption:	Support	Firmware Upgrade:	Remote Upgrade Of Mainboard Program
APP:	Mantisolo, Operating System: Android 8.0 Or Above, IOS 12.0 Or Above	Software:	LaserMark
Language:	Chinese And English	Axes:	4 Motion Axes + 2 Galvanometer Shafts
Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output	System Function:	Ordinary Marking
Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit
Highlight:	Fiber Laser Marking Controller , UV Laser Marking Controller

CO2 Fiber And UV Laser Marking Controller With UVC Camera RDM6020V

Product Overview

The RDM6020V with UVC Camera Laser Marking Controller is an advanced control system that combines superior capabilities with seamless operation, delivering versatile marking solutions for multiple industry sectors to enhance production performance and product quality.

Key Specifications

Attribute	Value
Laser Source	CO2, fiber and UV
Axes control	Pulse+dir or +/-pulse, differential double-ended output
Galvanometer protocol	XY2-100
Input/output	6 channels input/output
Installment Encryption	Support
Firmware Upgrade	Remote upgrade of mainboard program
APP	Mantisolo, operating system: Android 8.0 or above, IOS 12.0 or above
Software	LaserMark
Language	Chinese and English
Axes	4 motion axes + 2 galvanometer shafts
System Function	Ordinary marking
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit

Application Fields

CO2 Laser: Ideal for marking wood, leather, plastics, and paper materials with excellent infrared absorption
Fiber Laser: Perfect for stainless steel, aluminum oxide, copper oxide, alloys, jewelry, metals, and electronic components with high power density
UV Laser: Precision marking for plastics, PVC, circuit boards, cables, chips, LCD screens, glass, and food packaging with minimal material damage

Software

LaserMark software provides comprehensive control and customization for all marking operations.

Product Certification
