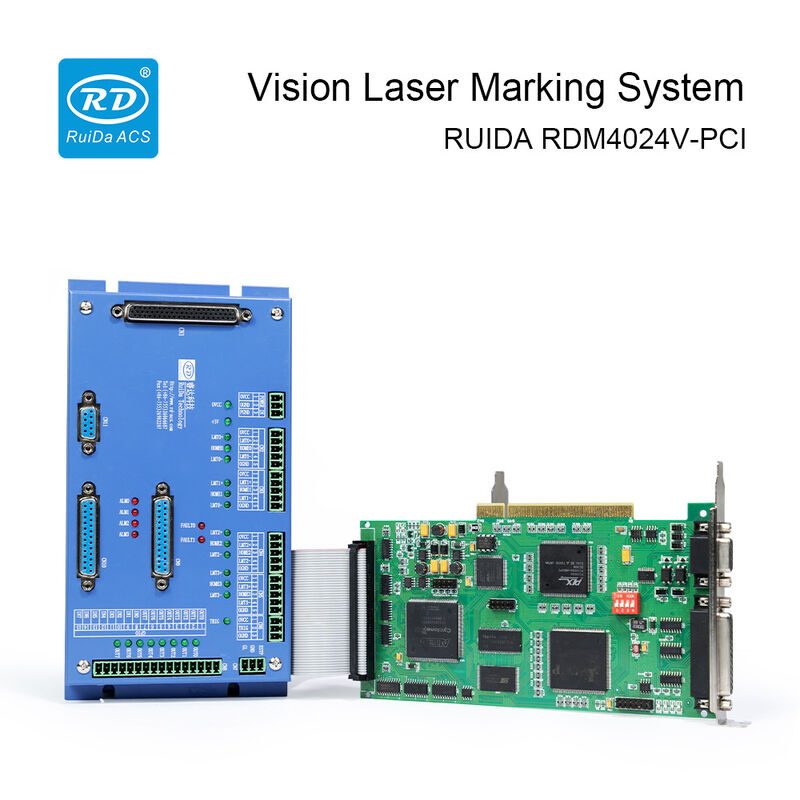

Ruida Laser Controller Laser Marking Controller With 4 Motion Axis RDM4024V-PCI

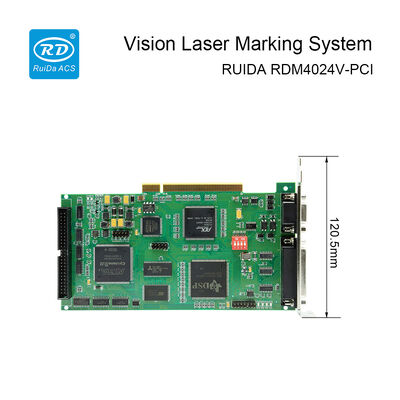

Large Image : Ruida Laser Controller Laser Marking Controller With 4 Motion Axis RDM4024V-PCI

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM4024V-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida Laser Controller Laser Marking Controller With 4 Motion Axis RDM4024V-PCI

Description

Laser Source:	CO2, Fiber And UV	Axis:	4 Motion Axes + 2 Galvanometer Shafts
Communication Interface:	PCI	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
Camera:	1.3, 3, 5, 12 And 20 Megapixels Industrial Network Camera Are Available	Light Source System:	Circular Light Source, OPDX And Strip Source Are Available
System Function:	Feature Matching, Gray Matching, Custom Template Visual Positioning Marking	Installment Encryption:	Support
Software:	RDMarkVision	Language:	Chinese And English
Highlight:	Ruida Laser Marking controller , 4 Axis Laser Marking Controller , RDM4024V-PCI

Ruida Laser Controller RDM4024V-PCI Laser Marking Controller

Vision positioning precision marking controller with PCI interface, ideal for 3C application industry. Features industrial cameras and advanced image processing algorithms with support for 4 motion axes + 2 galvo axes.

Key Specifications

Parameter	RDM4024V-PCI
Laser Compatibility	CO2, fiber and UV
Axes	4 motion axes + 2 galvanometer shafts
Communication Interface	PCI
Axis Control Interface	Pulse + dir or +/- pulse, differential two-terminal output
Camera Options	1.3, 3, 5, 12 and 20 megapixels industrial network camera
Light Source System	Circular light source, OPDX and strip source available
System Function	Feature matching, gray matching, custom template visual positioning marking
Installment Encryption	Supported
Firmware Upgrade	Remote upgrade of mainboard program
Software	RDMarkVision
Operating System	WinXP, Win7, Win8, Win10 (32-bit or 64-bit)
Language Support	Chinese and English

Key Features

Advanced graphics and image positioning with target feature learning for precision vision marking
Includes RDMarkVision software with automatic correction algorithm for visual aided galvanometer
Comprehensive optical fixture and light source systems included
Multiple visual positioning methods: feature matching, gray matching, and custom templates
Supports CO2, UV and fiber laser marking models

Application Fields

With CO2 laser: Ideal for marking wood, leather, plastics and paper.

With fiber laser: Perfect for stainless steel, aluminium oxide, copper oxide and other alloys - including jewelry, metal components, electronics, batteries and switches.

With UV laser: Designed for precision marking in electronics industry - plastic, PVC, circuit boards, cables, chips, LCD screens, glass and food packaging.

Software: RDMarkVision (Free)

Supports PLT, DXF, DSB, DST, SVG, BMP, JPG and other file formats with import, display and edit functions. Features image file processing and supports multiple languages including Simplified Chinese, Traditional Chinese and English.

Product Certification

All products meet CE, RoHS and FCC certification standards, complying with safety production requirements.

Package Contents
