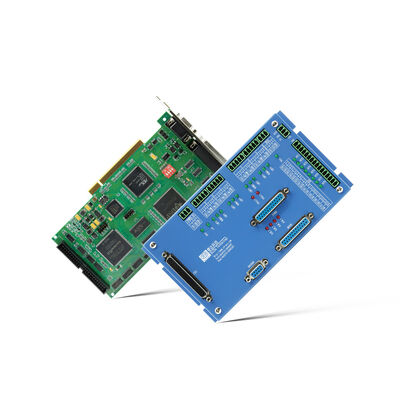

Ruida RDM4024V-PCI Laser Marking Machine Controller PCI Visual Marking Card

Large Image : Ruida RDM4024V-PCI Laser Marking Machine Controller PCI Visual Marking Card

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM4024V-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDM4024V-PCI Laser Marking Machine Controller PCI Visual Marking Card

Description

Laser:	CO2, Fiber And UV	Axes:	Four Motion Axes + Two Galvanometer Shafts
Communication:	PCI	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
Camera:	1.3, 3, 5, 12 And 20 Megapixels Industrial Network Camera Are Available	Light Source System:	Circular Light Source, OPDX And Strip Source Are Available
System Function:	Feature Matching, Gray Matching, Custom Template Visual Positioning Marking	Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit
Software:	RDMarkVision	Firmware Upgrade:	Remote Upgrade Of Mainboard Program
Highlight:	Ruida RDM4024V-PCI , Laser Marking Machine Controller , RDM4024V-PCI Controller

Ruida RDM4024V-PCI Laser Marking Machine Controller PCI Visual Marking Card

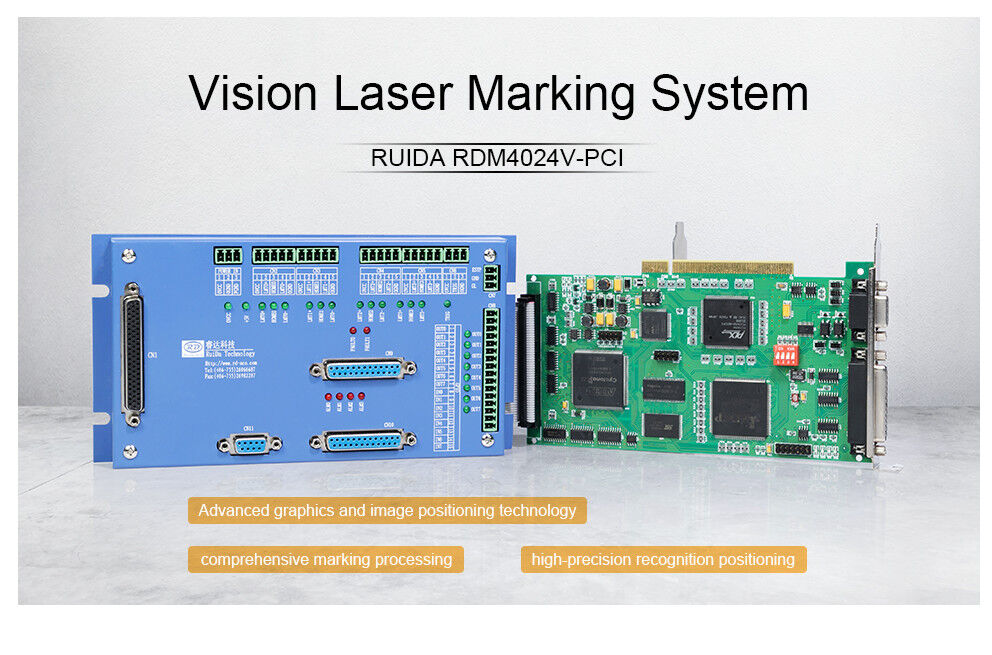

Description Of Ruida Controller RDM4024V-PCI

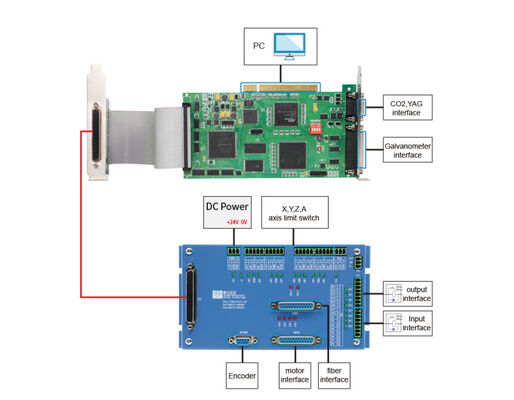

Visual positioning precision marking controller suitable for 3C application industry. Features PCI interface motion control with industrial camera and advanced image processing algorithms. Supports 4 axes + 2 galvanometer axes with comprehensive laser interfaces and external IO resources. Includes optical tooling and light source system with feature matching positioning capability.

Technical Specifications

Parameter	RDM4024V-PCI
Laser Compatibility	CO2, fiber and UV
Axis Configuration	Four motion axes + Two galvanometer shafts
Communication Interface	PCI
Axis Control Interface	Pulse + dir or +/- pulse, differential two-terminal output
Camera Options	1.3, 3, 5, 12 and 20 megapixels industrial network camera
Light Source System	Circular light source, OPDX and strip source available
System Functions	Feature matching, gray matching, custom template visual positioning marking
Installation Encryption	Supported
Firmware	Remote upgrade of mainboard program
Software	RDMarkVision
Operating System	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language Support	Chinese and English

Key Features

Precision Vision Positioning: Advanced graphics and image positioning with target feature learning for accurate marking tasks
RDMarkVision Software Integration: Includes automatic correction algorithm for visual-aided galvanometer with visual positioning recognition
Comprehensive Optical Systems: Complete optical fixture and light source systems for enhanced marking effectiveness
Versatile Visual Positioning: Supports feature matching, gray matching, and custom templates
Multi-Laser Compatibility: Works with CO2, UV, and fiber laser marking models

Application Fields

CO2 Laser Applications: Wood, leather, plastics and paper marking

Fiber Laser Applications: Stainless steel, aluminium oxide, copper oxide and other alloy materials including jewelry, metal components, electronics, batteries, and switches

UV Laser Applications: Precision marking in electronic industry including plastic components

Software: RDMarkVision (Free)

Supports PLT, DXF, DSB, DST, SVG, BMP, JPG and other file formats with import, display and edit functions. Includes image file processing capabilities with multilingual support (Simplified Chinese, Traditional Chinese, English).

Product Certification

All products passed CE, RoHS and FCC certification, complying with international safety production standards.

Package Contents

Shipping and Payment Information

Tag:

Contact Person: Ms. Cyan LIANG

Tel: +8613410708106
