Ruida Laser Marking Controller RDM4024V-PCI Visual Laser Marking Control System

Large Image : Ruida Laser Marking Controller RDM4024V-PCI Visual Laser Marking Control System

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM4024V-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida Laser Marking Controller RDM4024V-PCI Visual Laser Marking Control System

Description

Laser Source:	CO2, Fiber And UV	Axes:	4 Motion Axes + 2 Galvanometer Shafts
Communication Interface:	PCI	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
Camera:	1.3, 3, 5, 12 And 20 Megapixels Industrial Network Camera Are Available	Light Source System:	Circular Light Source, OPDX And Strip Source Are Available
Language:	Chinese And English	Encryption:	Support
Software:	RDMarkVision	Firmware Upgrade:	Remote Upgrade Of Mainboard Program
Highlight:	Visual Laser Marking Controller , FCC Laser Marking Controller , Visual Laser Marking Control System

Ruida Laser Marking Controller RDM4024V-PCI Visual Laser Marking Control System

Description Of Ruida Controller RDM4024V-PCI

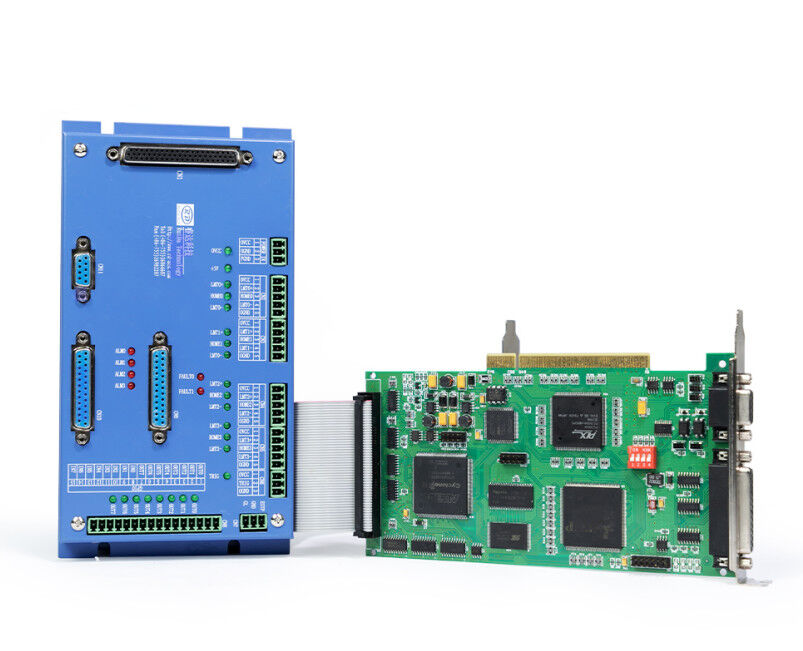

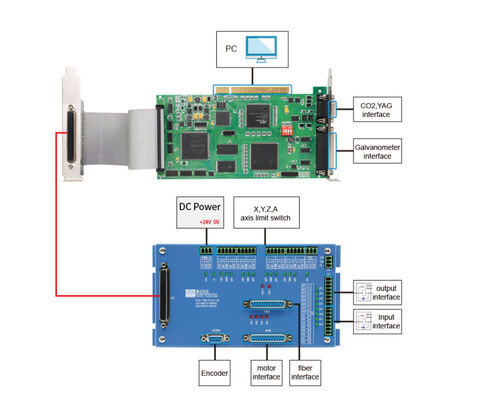

Visual positioning precision marking system designed for 3C application industry. Features PCI interface motion controller with industrial camera and advanced image processing algorithms. Supports 4 axes + 2 galvanometer axes with comprehensive laser interfaces and external IO resources.

Parameter	RDM4024V-PCI
Laser	CO2, fiber and UV
Axis	Four motion axes + Two galvanometer shafts
Communication	PCI
Axis control interface	Pulse + dir or +/- pulse, differential two-terminal output
Camera	1.3, 3, 5, 12 and 20 megapixels industrial network camera available
Light source system	Circular light source, OPDX and strip source available
System function	Feature matching, gray matching, custom template visual positioning marking
Installment encryption	Support
Firmware	Remote upgrade of mainboard program
Software	RDMarkVision
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language	Chinese and English

Key Features

Motion Controller with PCI Interface: Ensures high-speed data transfer and efficient control
Industrial Cameras: High-resolution imaging for precise positioning
Advanced Image Processing Algorithms: Enhanced feature recognition for accurate alignment
Axis Support: 4 linear motion axes + 2 galvanometer axes for complex movements
Rich Laser Interface: Multiple interfaces for various laser systems
External I/O Resources: Additional connectivity for sensors and peripherals

Application Fields

CO2 Laser Applications:

Materials: Wood, leather, plastics, paper
Wood Products: Engraving and cutting designs or logos
Leather Goods: Marking patterns or branding
Plastic Marking: Suitable for various plastic types
Paper Products: Creating intricate designs or labels

Fiber Laser Applications:

Materials: Stainless steel, aluminum oxide, copper oxide, and alloys
Jewelry: Precision marking for serial numbers and logos
Metal Components: Marking electronic parts and automotive components
Battery and Charger Marking: Traceability and compliance
Switches and Connectors: Reliable marking on small components

UV Laser Applications:

Materials: Plastic, PVC, circuit boards, LCD screens, glass, food packaging
Electronics Industry: Precision marking on sensitive components
Plastics and PVC: High-resolution markings maintaining integrity
LCD Screens: Non-intrusive marking preserving quality
Glass Marking: Detailed designs or labels
Food Packaging: Safe marking for traceability

Software: RDMarkVision (Free)

Supports PLT, DXF, DSB, DST, SVG, BMP, JPG and other file formats with import, display and edit functions. Includes image file processing capabilities. Available in simplified Chinese, traditional Chinese, English and other languages.

Product Certification

All products passed CE, RoHS and FCC certification, complying with international safety production standards.

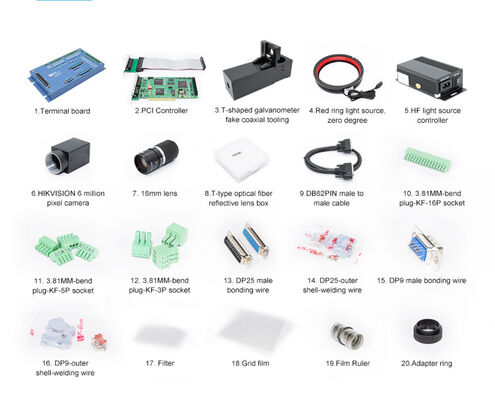

Package Contents

Shipping and Payment Information

Tag:

Contact Person: Ms. Cyan LIANG

Tel: +8613410708106
