Ruida Laser Marking Controller Marking And Cutting Card RDM4024C-PCI

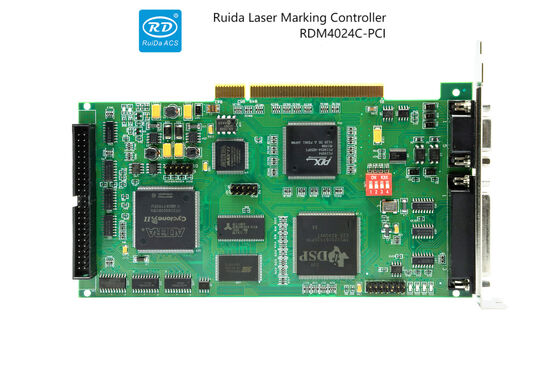

Large Image : Ruida Laser Marking Controller Marking And Cutting Card RDM4024C-PCI

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM4024C-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida Laser Marking Controller Marking And Cutting Card RDM4024C-PCI

Description

Laser:	CO2, Fiber And UV	Axes:	Four Motion Axes + Two Galvanometer Shafts
Communication Interface:	PCI	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
System Function:	Array Marking, Intelligent Segmentation Splicing Marking, And Cutting Marking For Different Layers	Encryption Interface:	Support
Upgrade Of Firmware:	Remote Upgrade Of Mainboard Program	Software:	RDMarkCam
Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit	Language:	Chinese And English
Highlight:	CE Laser Marking Controller , Laser Marking Controller RDM4024C-PCI

Ruida Laser Marking Controller Marking And Cutting Card RDM4024C-PCI

Ruida Laser Controller RDM4024C-PCI Laser Marking Controller Marking And Cutting Card

Description Of Ruida Controller RDM4024V-PCI

This advanced controller is specifically engineered for large-scale array marking and format splicing applications requiring sophisticated motion control. It seamlessly integrates motor and galvanometer motion controls to achieve intricate movement scenarios. Key capabilities include:

Galvanometer marking control
Multi-axis motor control
Multi-axis interpolation motion
Synchronized laser control

This versatile motion control solution is ideal for precision marking and splicing applications, offering exceptional handling of complex movement requirements.

Technical Specifications

Parameter	RDM4024V-PCI
Laser source	CO2, fiber and UV
Axis	4 motion axes + 2 galvanometer shafts
Communication interface	PCI
Axis control interface	Pulse + dir or +/- pulse, differential two-terminal output
System function	Array marking, intelligent segmentation splicing marking, and cutting marking for different layers
Installment encryption	Support
Firmware upgrade	Remote upgrade of mainboard program
Software	RDMarkCam
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language	Chinese and English

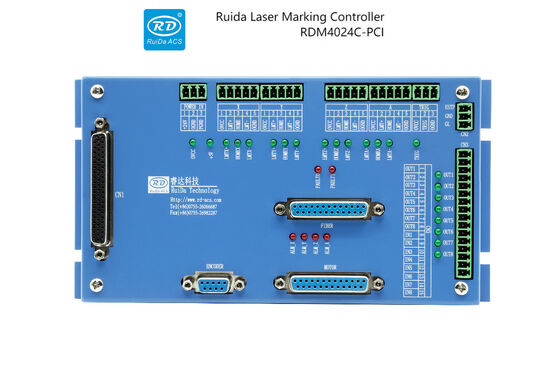

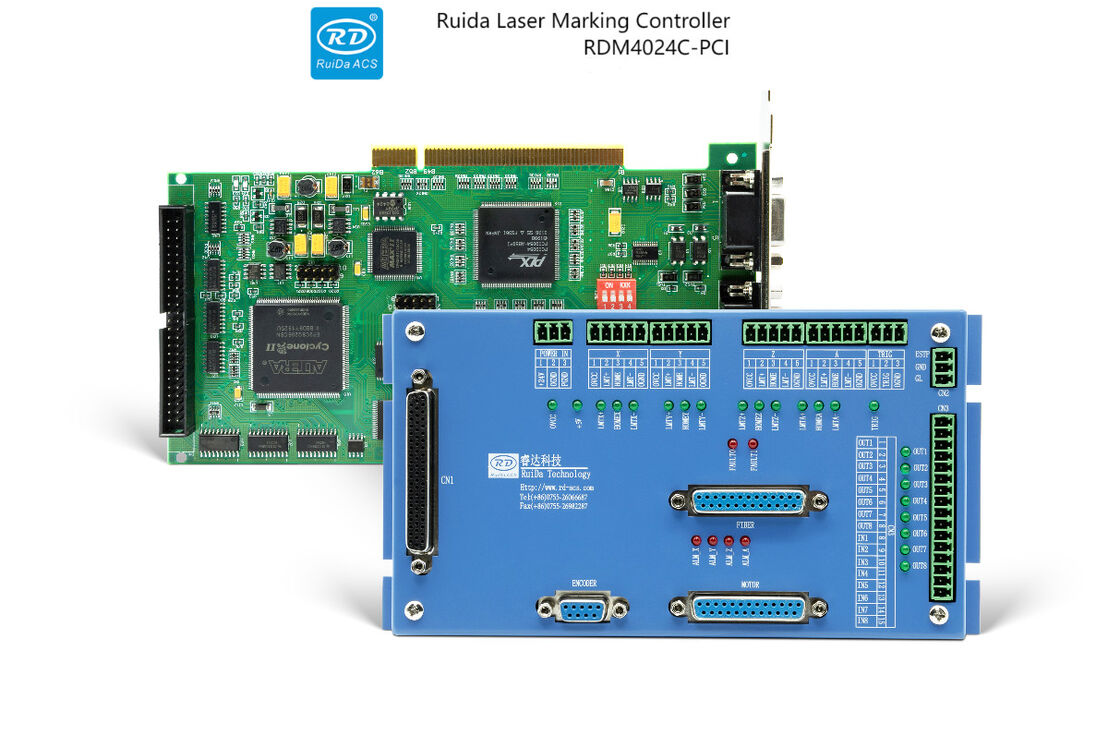

Product Image

Application Fields

This controller offers versatile marking solutions for various materials when paired with different laser types:

CO2 Laser Applications

Materials: Wood, leather, plastics, and paper
Advantages: High-power infrared beam creates deep, clear, lasting marks on non-metal materials

Fiber Laser Applications

Materials: Stainless steel, aluminum oxide, copper oxide, alloys, jewelry, electronic components
Advantages: High efficiency and precision with minimal heat-affected zones

UV Laser Applications

Materials: Plastic, PVC, circuit boards, cables, chips, LCD screens, glass, food packaging
Advantages: Short-wavelength light enables precision marking on delicate materials

Software

RDMarkCam

Product Certification

Shipping and Payment

Tag:

Contact Person: Ms. Cyan LIANG

Tel: +8613410708106
