Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Large Image : Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM4024P-PCI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Description

Laser:	CO2, Fiber And UV	Axis:	Two Motion Axes + Two Galvanometer Shafts Or Four Motion Axes + Two Galvanometer Shafts
Communication Interface:	PCI	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
Camera:	1.3, 3 And 5 Megapixels Industrial Network Camera Are Available	Light Source System:	Circular Light Source, OPDX And Strip Source Are Available
System Function:	Mark Point Positioning, Array Marking, Splicing Marking And Cutting Marking For Different Layers	Encryption:	Support
Firmware:	Support Remote Upgrade Of Mainboard Program	Software:	RDAutoMarkPointVision
Highlight:	Marking And Cutting Laser Control System , RDM4024P-PCI Laser Control System , Visual Positioning Laser Control System

Ruida RDM4024P-PCI Visual Positioning Marking And Cutting Laser Control System

Product Description

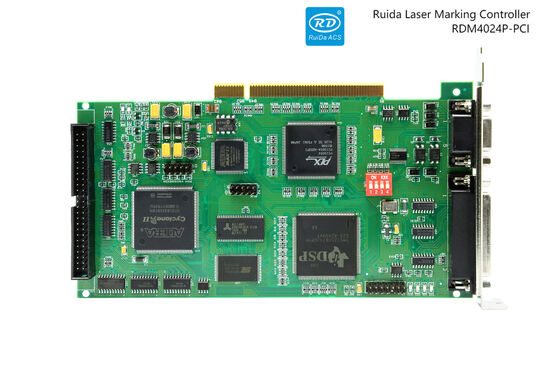

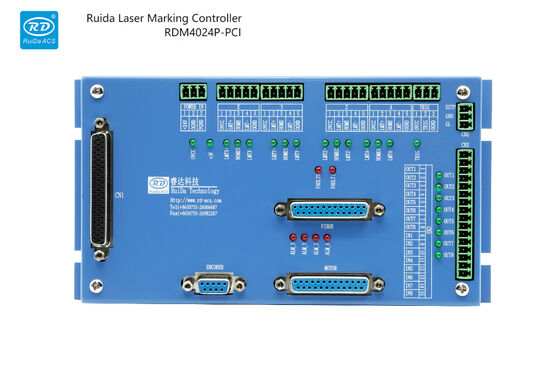

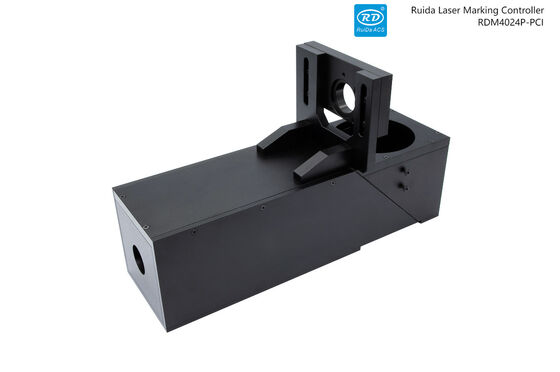

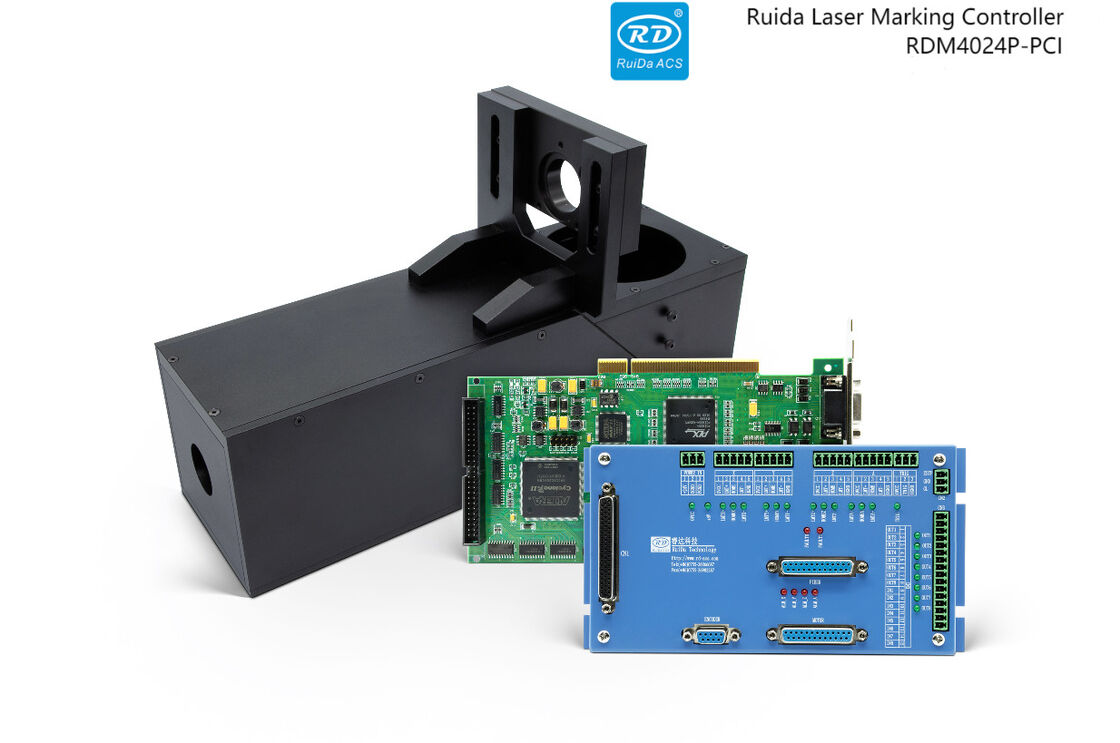

The Ruida Controller RDM4024P-PCI is a motion controller with PCI interface that utilizes industrial cameras and advanced image processing algorithms. It features ring light or coaxial light sources with MARK point positioning technology, supporting the RDAutoMarkPointVision software. With four motion axes, feeding control, Z-axis movement, and extensive laser interfaces and external IO resources, it integrates seamlessly with various auxiliary components.

Technical Specifications

Parameter	RDM4024P-PCI
Laser source	CO2, fiber and UV
Axis	2 motion axes + 2 galvanometer shafts or 4 motion axes + 2 galvanometer shafts
Communication	PCI
Axis control interface	Pulse + dir or +/- pulse, differential two-terminal output

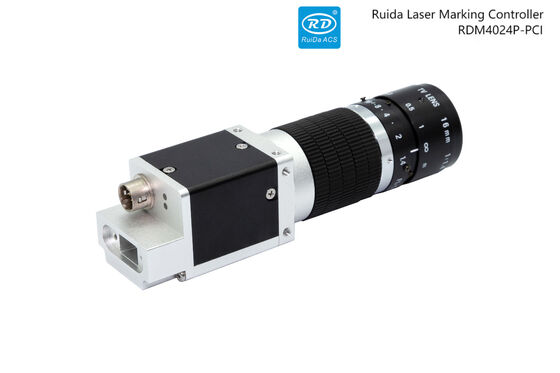

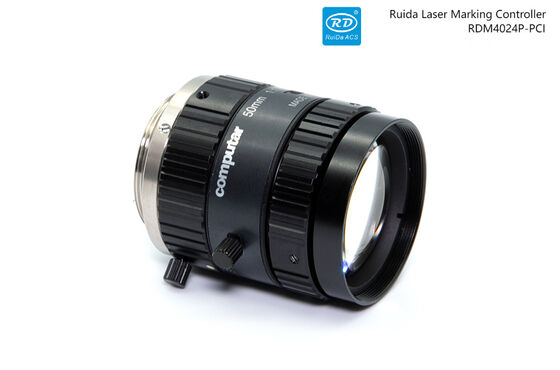

Camera	1.3, 3 and 5 megapixels industrial network camera are available

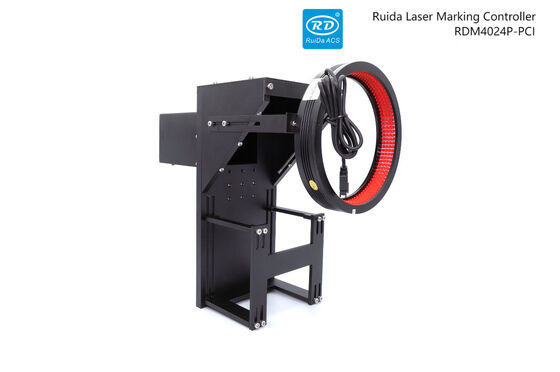

Light source system	Circular light source, OPDX and strip source are available
System function	Mark point positioning, array marking, splicing marking and cutting marking for different layers
Software	RDAutoMarkPointVision
Installment encryption	Support
Firmware upgrade	Remote upgrade of mainboard program
Operating system	Win7, Win8, Win10, 32-bit or 64-bit
Language	Chinese and English

Key Features

Application Fields

The controller can be configured with different laser types for diverse marking applications:

CO2 Laser:
- Applications: Wood, leather, plastics, and paper marking
- Advantages: Clear, deep marks on non-metallic surfaces for packaging, signage, and product customization
Fiber Laser:
- Applications: Stainless steel, aluminium oxide, copper oxide, and other alloy materials including jewelry and electronic components
- Advantages: High precision and repeatability for electronics, jewelry, and automotive industries
UV Laser:
- Applications: Precision marking for plastics, PVC, circuit boards, LCD screens, glass, and food packaging
- Advantages: Extremely high resolution for delicate materials requiring intricate marks

This versatility makes the controller suitable for various industrial applications, improving productivity and efficiency.

Software

RDAutoMarkPointVision
