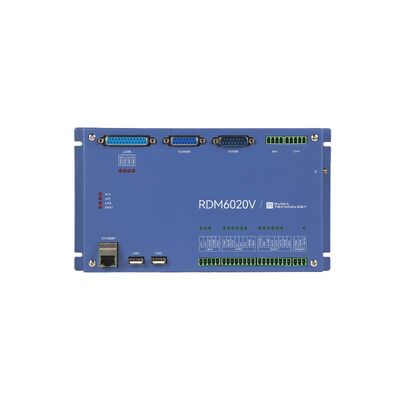

Ruida RDM6020V Laser Marking Controller With Ethernet USB WiFi

Large Image : Ruida RDM6020V Laser Marking Controller With Ethernet USB WiFi

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDM6020V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

Ruida RDM6020V Laser Marking Controller With Ethernet USB WiFi

Description

Laser Source:	CO2, Fiber And UV	Axes Control:	Pulse+dir Or +/-pulse, Differential Double-ended Output
Communication Interface:	Ethernet, USB, WiFi	Galvanometer Protocol:	XY2-100
Input/output:	6 Channels Input/output	Installment Encryption:	Support
Firmware Upgrade:	Remote Upgrade Of Mainboard Program	APP:	Mantisolo, Operating System: Android 8.0 Or Above, IOS 12.0 Or Above
Software:	LaserMark	Language:	Chinese And English
Axes:	4 Motion Axes + 2 Galvanometer Shafts	Axis Control Interface:	Pulse + Dir Or +/- Pulse, Differential Two-terminal Output
System Function:	Ordinary Marking	Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit
Highlight:	Ruida RDM6020V , Ethernet Laser Marking Controller , WiFi Laser Marking Controller

Ruida RDM6020V Laser Marking Controller With Ethernet USB WiFi

Next-generation Laser Marking Control System Solution with exceptional performance, efficient operation, and intelligent design for various industrial applications.

Technical Specifications

Attribute	Value
Laser Source	CO2, fiber and UV
Axes control	Pulse+dir or +/-pulse, differential double-ended output
Communication Interface	Ethernet, USB, WiFi
Galvanometer protocol	XY2-100
Input/output	6 channels input/output
Installment Encryption	Support
Firmware Upgrade	Remote upgrade of mainboard program
APP	Mantisolo, operating system: Android 8.0 or above, IOS 12.0 or above
Software	LaserMark
Language	Chinese and English
Axes	4 motion axes + 2 galvanometer shafts
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit

Key Features

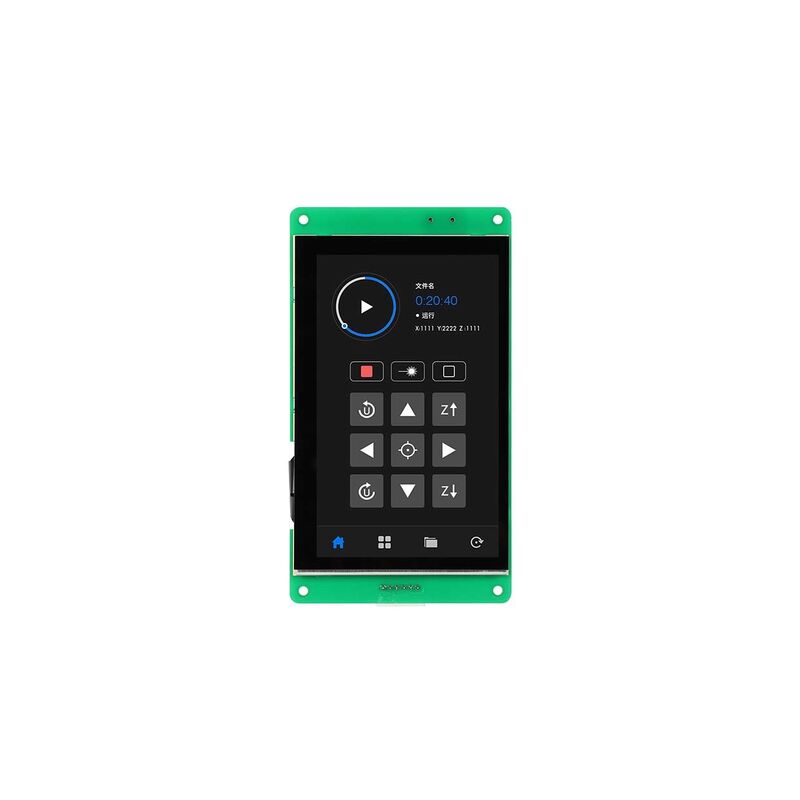

5" touch screen with customizable operation interface

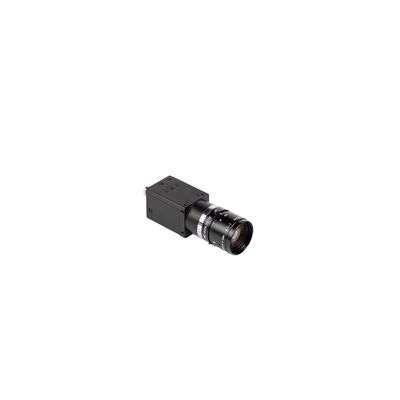

Supports UVC and industrial cameras
Available with strip source and circular light source
Multiple marking functions: standalone, APP, visual positioning, IOT cloud interconnection
Versatile marking capabilities: plane, rotary, and array marking

Product Image

Application Fields

CO2 Laser Applications: Ideal for marking on wood, leather, plastics, and paper materials that absorb infrared light well.

Fiber Laser Applications: Perfect for marking stainless steel, aluminum oxide, copper oxide, alloys, jewelry, metals, electronic components, batteries, and chargers.

UV Laser Applications: Precision marking for electronic industry including plastics, PVC, circuit boards, cables, chips, LCD screens, glass, and food packaging.

Software

LaserMark - Comprehensive marking software solution

Product Certification
