Ruida RDC6685U-DFM Dual Beam CO2 Laser Controller with Visual Cutting

Large Image : Ruida RDC6685U-DFM Dual Beam CO2 Laser Controller with Visual Cutting

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6685U-DFM

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

Ruida RDC6685U-DFM Dual Beam CO2 Laser Controller with Visual Cutting

Description

Axis:	8	Fireware:	Support The Remote Upgrade Of Mainboard
Laser Channel:	4	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Encryption:	Support	Onboard Clock:	Support (support The Modification Of Time)
Panel:	5'' Color Screen + Keys	Multi-head Synchronous:	Double Coordinates System Control, Support Double Head Asynchronous And Synchronous
Communication:	Ethernet, USB And WIFI (optional)	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Highlight:	Visual Cutting System Controller , Large Format Cutting System Controller , RDC6685U-DFM Controller

Ruida RDC6685U-DFM Dual Beam CO2 Laser Controller with Visual Cutting

Product Overview

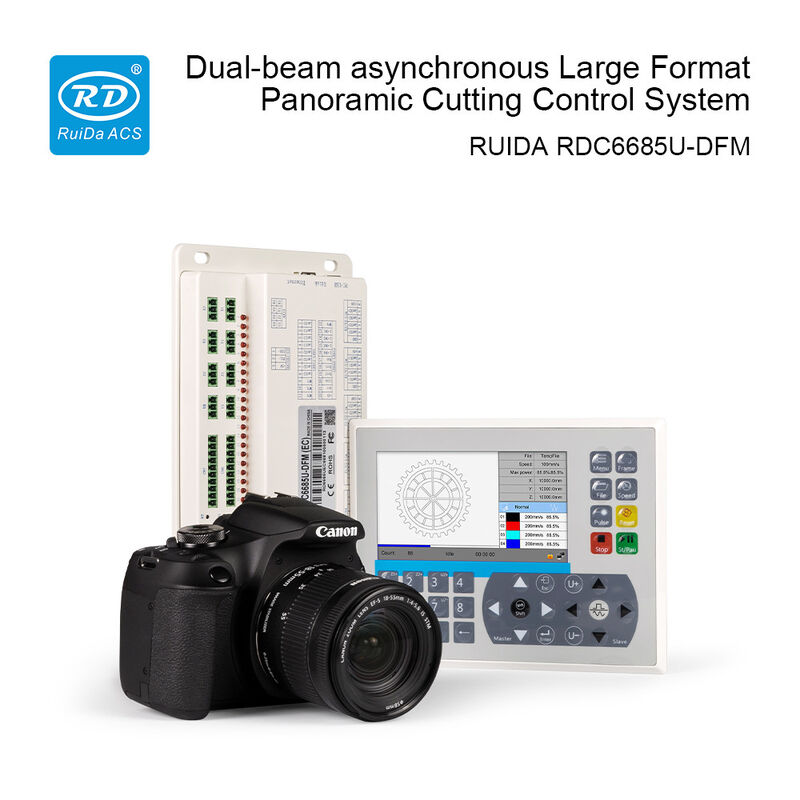

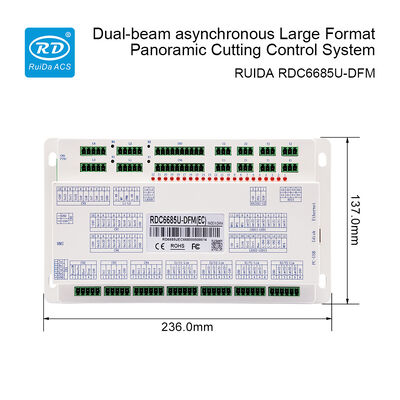

RUIDA RDC6685U-DFM Double Beam Large Format Visual Cutting System Controller for CO2 Laser Engraving Cutting Machine. This latest generation controller features double coordinate system control technology for synchronous start of dual heads with independent asynchronous cutting capability.

Key Features

Standalone operation with USB and Ethernet communication support

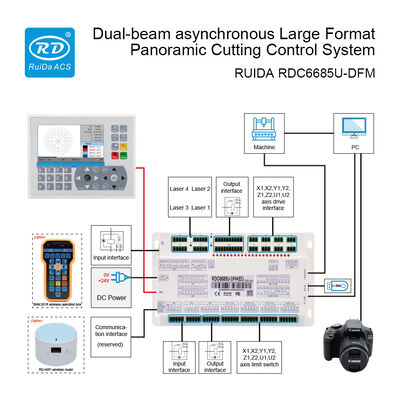

Comprehensive laser interfaces and external IO resources
Dual coordinate systems for synchronous beam operation
Supports both asynchronous and synchronous dual head processing
Automatic feeding and ultra-wide panoramic visual cutting capability
Ideal for high-efficiency cutting in apparel, leather, and fabric industries

Technical Specifications

Attribute	Specification
Laser Source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser Channels	4
Multi-head Operation	Dual coordinate system control (asynchronous/synchronous)
Communication	Ethernet, USB, WIFI (optional)

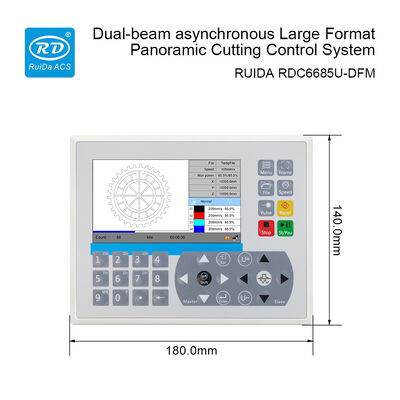

Control Panel	5" color screen with keys
Feeding System	U axis/Y+U axis synchronous feeding, sheet/large format segmentation
Encryption	Supported
Onboard Clock	Supported with time modification
Firmware	Remote upgrade capability
Camera	24MP resolution, 10-18mm/18-55mm focal length options
Software	UnionLaser, RDWorksV8, RDVisionWorks
Supported Languages	13 languages including English, Chinese, Spanish, German, etc.

RDVision Software (Included)

The RDVisionWorks intelligent visual cutting software captures full-plane images, extracts contours, and performs template matching recognition. Supports complete automation of feeding, photography, identification and cutting processes.
