8 Axis CO2 Vision Laser Controller For Dual Head Cutting Ruida RDC6685U-DFM

Large Image : 8 Axis CO2 Vision Laser Controller For Dual Head Cutting Ruida RDC6685U-DFM

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDC6685U-DFM

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

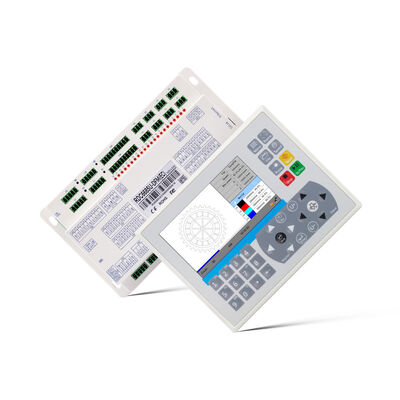

8 Axis CO2 Vision Laser Controller For Dual Head Cutting Ruida RDC6685U-DFM

Description

Brand:	RUIDA	Axis:	8
Multi-head Synchronous:	Double Coordinates System Control, Support Double Head Asynchronous And Synchronous	Laser Channel:	4
Communication:	Ethernet, USB And WIFI (optional)	Panel:	5'' Color Screen + Keys
Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding	Encryption:	Support
Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers	Onboard Clock:	Support (support The Modification Of Time)
Highlight:	8 Axis Vision Laser Controller , CO2 Vision Laser Controller , Dual Head Laser Cutting Controller

8 Axis CO2 Vision Laser Controller For Dual Head Cutting Ruida RDC6685U-DFM

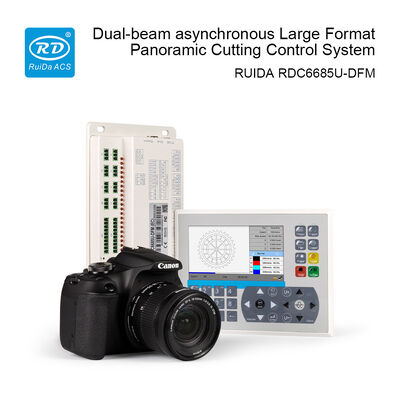

Ruida RDC6685U-DFM Laser Vision Controller for Double Beam Large Format Visual Cutting System

Product Specifications

Attribute	Value
Brand	RUIDA
Axis	8
Multi-head synchronous	Double coordinates system control, support double head asynchronous and synchronous
Laser channel	4
Communication	Ethernet, USB and WIFI (optional)
Panel	5'' color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Support
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Onboard clock	Support (support the modification of time)

Product Overview

Ruida Technology's RDC6685U-DFM represents a breakthrough in dual-head control technology, specifically engineered for advanced cutting applications. This sophisticated control system delivers intelligent solutions for large-format material processing.

Dual-Head Intelligence:

Advanced dual X/Y coordinate system management
Independent asynchronous cutting capabilities
Synchronized head movement initiation
Intelligent collision avoidance technology

Performance Features:

Smart segmentation for ultra-wide material processing
Automated safety protocols
High-precision synchronization control
Independent head operation management

Industry Applications:

Optimized for textile processing
Ideal for leather cutting operations
Enhanced fabric cutting efficiency
Perfect for large-format material handling

Included Software

RDVisionWorks, a large format intelligent visual cutting software, can capture the entire machine plane image at once, extract contours, and perform template matching recognition. The software supports full automation of feeding, photography, identification and cutting processes.

Technical Parameters

Parameter	Specification
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser channel	4
Multi-head synchronous	Double coordinates system control, support double head asynchronous and synchronous
Communication	Ethernet, USB and WIFI (optional)
Panel	5" color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Support
Onboard clock	Support (support the modification of time)
Firmware	Remote upgrade of panel and mainboard program
Cutting	Large-format visual cutting, Mark point vision and projection cutting
Camera	24 megapixels resolution, 10-18mm and 18-55mm focal length available
Engraving	Plane engraving, slope engraving and gray engraving
Software	UnionLaser, RDWorksV8, RDVisionWorks
Language	13 languages including English, Chinese, French, Russian, etc.

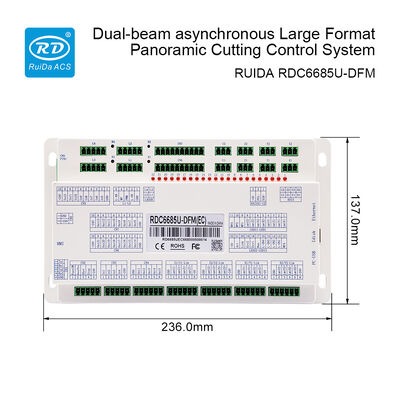

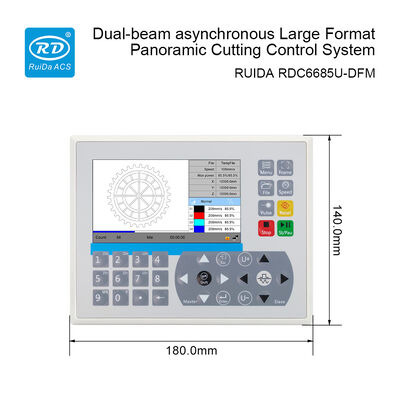

Size	Panel: 180×140×42.1mm; Mainboard: 236×137×33.5mm
Accessories	Wireless handle and RD-WIFI
