RUIDA RDV6442S CO2 Laser Small Vision Controller , Double Heads Engraving Control System

Large Image : RUIDA RDV6442S CO2 Laser Small Vision Controller , Double Heads Engraving Control System

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6442S

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	300340110
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDV6442S CO2 Laser Small Vision Controller , Double Heads Engraving Control System

Description

Axis:	4	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Laser Channel:	2	Light Source:	LED Red And White Circular Light Source
Pecision:	+/.0.5 Pulse	Camera:	1.3 Milhon, 3 Milhon, 5 Milon Pixoels Are Opticnal
Encryption:	Support	Safety Protection:	Limit Protcetion,Water Protection,Cover Protection
Engraving Function:	Plan /slope Engreving	Software:	RDVisionV8,Coreldraw,Lightburn,Engravelab
Highlight:	CO2 Laser Small Vision Controller , CO2 Non Metal Cutting Controller , CO2 Laser Engraving Control System

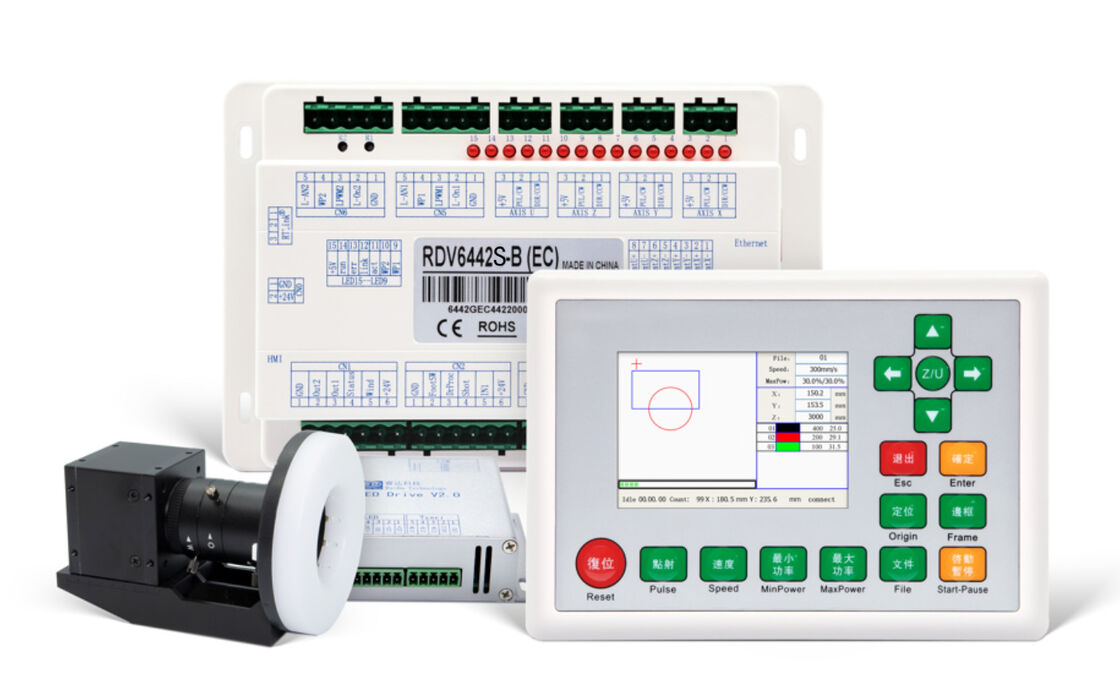

RUIDA RDV6442S CO2 Laser Small Vision Controller

Double Heads Engraving Control System for Non-Metal Cutting

The RDV6442S vision cutting control system features a 3.5-inch color screen and is derived from the RDC6442G controller. It offers advanced functions like feature recognition and MARK point positioning, operating independently for non-metal cutting applications in leather, fabric, sign making, and 3C electronics. Certified by CE, RoHS, and FCC for safety and quality standards.

Key Features

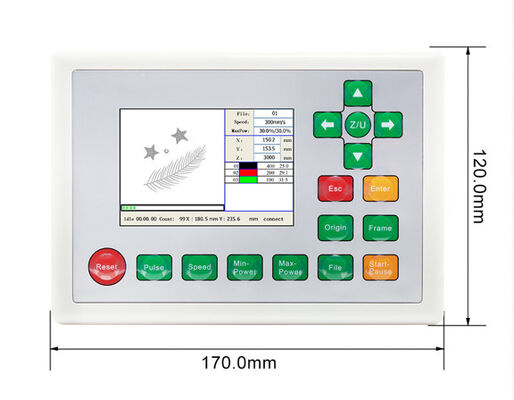

Enhanced user experience with 3.5" color screen and digital keys
Standalone functionality with 128MB internal memory
Versatile connectivity: USB, Ethernet, and U disk support
Advanced 4-axis control with dual laser interfaces and multi-channel general IO
Power failure recovery maintains work progress during laser cutting
Millisecond-accurate working hour previews for efficient scheduling
Direct on-panel modification of layer processing parameters
Real-time visual feedback showing processing path, coordinates, and progress

RDVision Software (Included)

The RDVision software combines image processing algorithms for feature recognition, enabling precise cutting by manually blocking out cutting contours.

Technical Specifications

Parameter	Specification
Laser source	CO2 glass tube, CO2 RF tube, Fiber and UV lasers
Axis	4 axis, Pulse+DIR signal, max 400KHZ Pulse frequency
Laser channel	2
Precision	±0.5 pulse
Safety protection	Limit protection, Water protection, Cover protection
Firmware	Supports remote upgrade of mainboard and panel program
Camera	Optional 1.3MP, 3MP or 5MP with 8-12mm lens

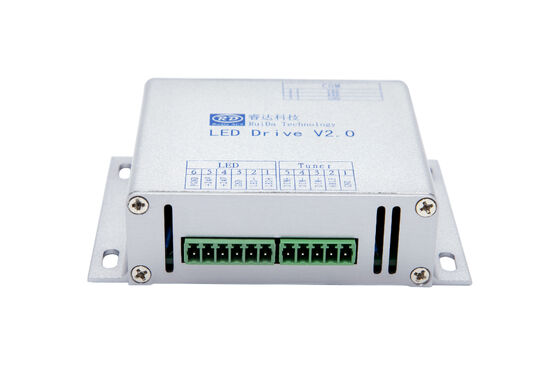

Light source	LED red and white ring light source
Vision positioning	Feature recognition and MARK point positioning
Installment encryption	Supported
Engraving	Plane engraving / slope engraving
Processing	Resume processing after power failure
Software	RDVision
Language	12 languages including Chinese, English, French, German, Russian, Spanish, Portuguese, Korean

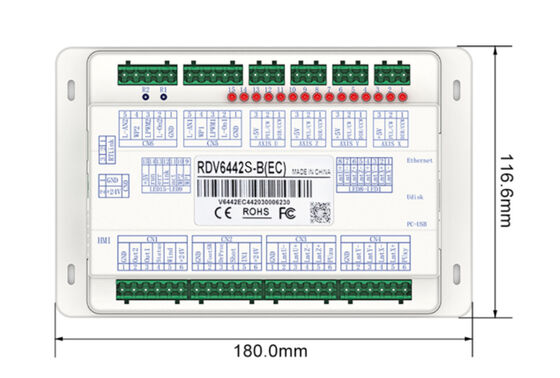

Size	Panel: 170×120×46.83mm Mainboard: 180×116.6×33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI
