CO2 Vision Laser Controller RDV6445G With High Precision Positioning For Recognition

Large Image : CO2 Vision Laser Controller RDV6445G With High Precision Positioning For Recognition

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6445G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	300340110
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

CO2 Vision Laser Controller RDV6445G With High Precision Positioning For Recognition

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	4	Axis Control:	Pulse+dir Or +/-pulse, Single-ended Output
Laser Channel:	2	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding /large Format Segmentation Feeding
Panel:	5”color Screen + Keys	Camera:	Cameras Of 1.3, 3 And 5 Megapixels Are Available. Lens Of 8~12, 35 And 50mm Are Available.
Encryption:	Support	Cutting:	Feature Positioning, Mark Point Positioning
Highlight:	Vision Laser Controller RDV6445G , Recognition Vision Laser Controller

CO2 Vision Laser Controller RDV6445G With High Precision Positioning For Recognition

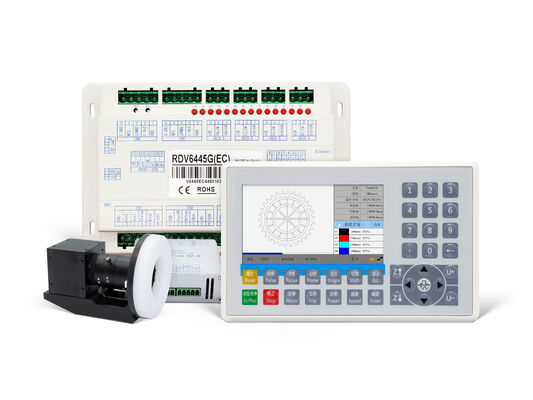

The RDV6445G is a sophisticated vision-guided cutting control system based on the RDC6445G controller, designed to support feature recognition for precise positioning and MARK point auxiliary positioning functions. It is particularly focused on vision cutting applications in the clothing, leather, digital printing, advertising, and 3C industries.

Key Features

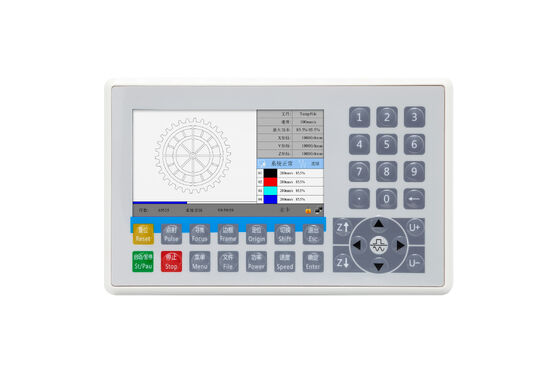

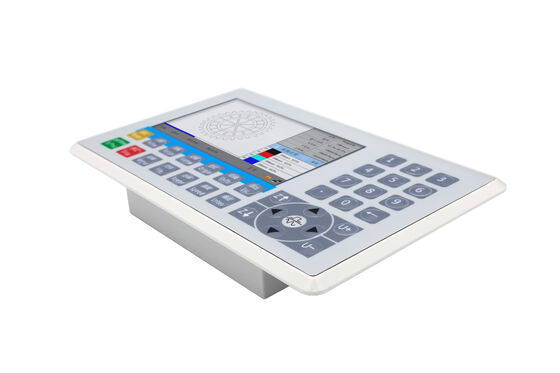

Compact Display: 5" color screen with an array of number and control keys
Versatile Communication: Standalone operation with USB, Ethernet, and U flash disk support
Multi-Axis Control: Supports 4 motion axes, dual laser interfaces, and multi-channel IO
Precision Positioning: High-accuracy feature recognition and Mark point positioning
Advanced Vision Cutting: Supports Mark point cutting, irregular material matching, and projection cutting
Industry-Focused: Tailored for vision cutting in clothing, leather, digital printing, advertising, and 3C industries

Software RDVision (Free)

The software of RDVision was combined with image processing algorithms for feature recognition to complete the cutting work by manually block out the cutting contour.

Technical Specifications

Parameters	RDV6445G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Axis control interface	Pulse+dir or +/-pulse, single-ended output
Communication	Ethernet, USB and WIFI (optional)
Panel	5" color screen + keys
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption	Support
Onboard clock	Not support
Firmware	Support the remote upgrade of mainboard and panel program
Camera	Cameras of 1.3, 3 and 5 megapixels are available. Lens of 8~12, 35 and 50mm are available.
Light source	LED red and white circular light source
Cutting	Feature positioning, Mark point positioning
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDVision, RDCMarkVision, RDWorksV8, RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese
Size	Panel: L199.5W124.5H42.1mm Mainboard: L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.
