RUIDA RDV6445G CO2 Vision Laser Controller High Precision Vision Cutting Laser Controller

Large Image : RUIDA RDV6445G CO2 Vision Laser Controller High Precision Vision Cutting Laser Controller

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	SIT200512230101S
Model Number:	RDV6445G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	300340110
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDV6445G CO2 Vision Laser Controller High Precision Vision Cutting Laser Controller

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	4	Axis Control:	Pulse+dir Or +/-pulse, Single-ended Output
Laser Channel:	2	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding /large Format Segmentation Feeding
Panel:	5”color Screen + Keys	Camera:	Cameras Of 1.3, 3 And 5 Megapixels Are Available. Lens Of 8~12, 35 And 50mm Are Available.
Encryption:	Support	Cutting:	Feature Positioning, Mark Point Positioning
Language:	13	Software:	RDVision, RDCMarkVision, RDWorksV8, RDImage
Highlight:	Vision Laser Controller High Precision , RDV6445G Vision Laser Controller , CO2 Vision Cutting Laser Controller

RUIDA RDV6445G CO2 Vision Laser Controller High Precision Vision Cutting Laser Controller

RUIDA RDV6445G High Precision CO2 Laser Vision Controller For Vision Cutting In Various Industries

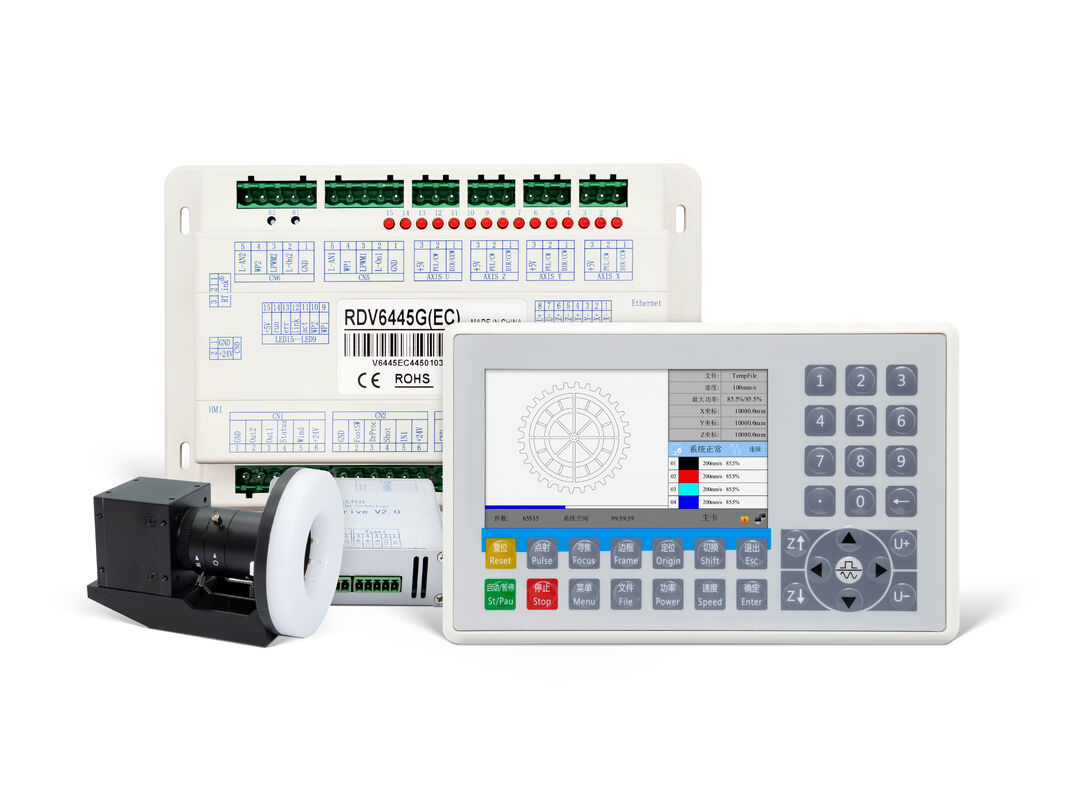

Description of RDV6445G

The RDV6445G, an advanced vision-guided cutting system built on the RDC6445G, specializes in feature recognition and MARK point positioning for accurate cutting. It excels in applications across clothing, leather, digital printing, advertising, and 3C industries. The system's cutting-edge vision capabilities ensure precise feature identification and positioning, enhancing both precision and efficiency in cutting tasks. Its industry-specific customization caters to the distinct needs of each sector, from complex fabric designs to precision component cutting in 3C manufacturing.

Product Features

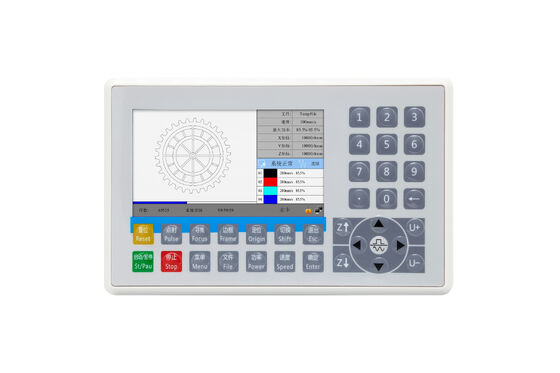

5" color screen with a comprehensive set of numeric and functional keys
Operates independently and connects via USB, Ethernet, and USB flash drives

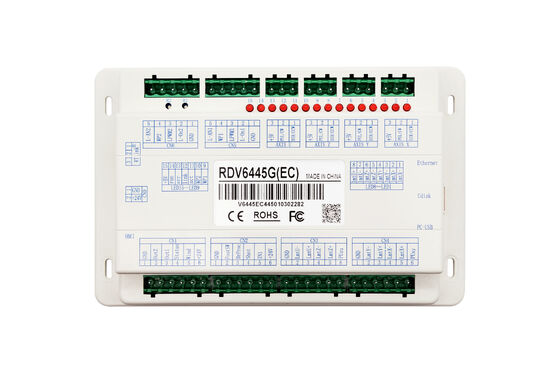

Manages 4 motion axes, two laser ports, and extensive IO channels
Delivers precise feature recognition and MARK point alignment
Sophisticated Vision Techniques: Capable of MARK point cutting, material mismatch correction, and projection cutting
Designed for precision cutting in fashion, leather, digital printing, signage, and 3C electronics

Software RDVision (Free)

The software of RDVision was combined with image processing algorithms for feature recognition to complete the cutting work by manually block out the cutting contour.

Technical Parameters

Parameters	RDV6445G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Axis control interface	Pulse+dir or +/-pulse, single-ended output
Communication	Ethernet, USB and WIFI (optional)
Panel	5" color screen + keys
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption	Support
Onboard clock	Not support
Firmware	Support the remote upgrade of mainboard and panel program
Camera	Cameras of 1.3, 3 and 5 megapixels are available. Lens of 8~12, 35 and 50mm are available.

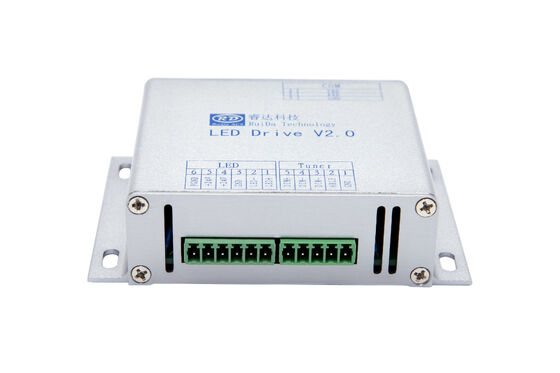

Light source	LED red and white circular light source
Cutting	Feature positioning, Mark point positioning
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDVision, RDCMarkVision, RDWorksV8, RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese
Size	Panel:L199.5W124.5H42.1mm Mainboard:L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI
Note	Virtual printing only supports Win10.
