RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S

Large Image : RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6442S

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	300340110
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	4	Light Source:	LED Red And White Circular Light Source
Laser Channel:	2	Camera:	1.3 Milhon, 3 Milhon, 5 Milon Pixoels Are Opticnal
Pecision:	+/.0.5 Pulse	Safety Protection:	Limit Protcetion,Water Protection,Cover Protection
Encryption:	Support	Software:	RDVisionV8,Coreldraw,Lightburn,Engravelab
Highlight:	Non Metal Cutting Control System , Double Heads Laser Control System , Double Heads Cutting Engraving Control System

RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S

RUIDA RDV6442S Double Heads Small Vision Laser Cutting And Engraving Control System For Non-Metal Cutting

Description of RDV6442S

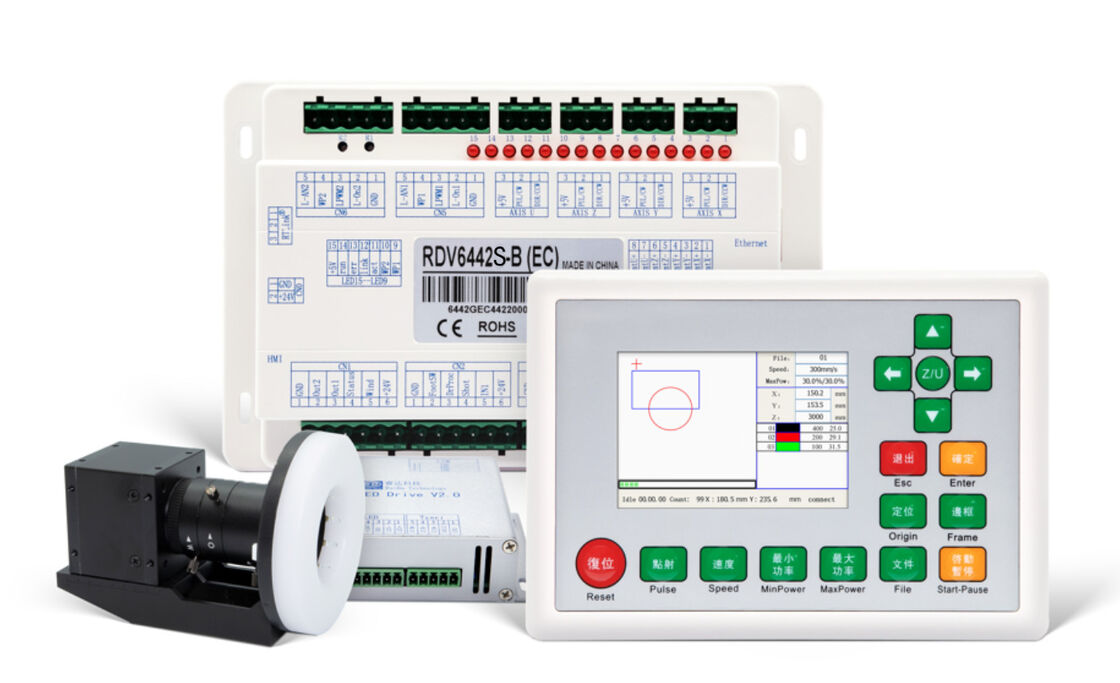

The RDV6442S is an advanced vision cutting control system built on the RDC6442S controller, featuring recognition capabilities and MARK point positioning. It comes with a 3.5-inch color display and is designed for standalone operation, excelling in non-metal cutting for materials such as leather, fabric, signage, and 3C applications. All models are certified with CE, RoHS, and FCC, ensuring compliance with stringent safety and production standards.

Product Features

3.5" color screen, rich craftsmanship, digital keys
Working standalone, 128M memory onboard
Support USB/Ethernet communication and U disk
Supports 4 axes, dual laser interface and multi-channel general IO input and output
Support resume Laser cutting after power failure
Support working hours preview, accurate to the millisecond

Software RDVision (Free)

The software of RDVision was combined with image processing algorithms for feature recognition to complete the cutting work by manually block out the cutting contour.

Technical Parameters

Parameters	RDV6442S
Laser source	CO2 glass tube, CO2 RF tube, Fiber and UV lasers
Axis	4 axis, Pulse+ DIR signal, maximum Pulse frequency is 400KHZ
Laser channel	2
Precision	+ / - 0.5 pulse
Safety protection	Limit protection, Water protection, Cover protection
Firmware	Support the remote upgrade of mainboard and panel program
Camera	1.3 million, 3 million, 5 million pixels are optional. Lens of 8~12mm
Light source	LED red and white ring light source
Vision positioning	Feature recognition and MARK point positioning
Installment encryption	Support
Engraving	Plane engraving / slope engraving
Processing	Support resume processing after power failure
Software	RDVision
Language	Support simplified Chinese, traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Korean and other 12 languages

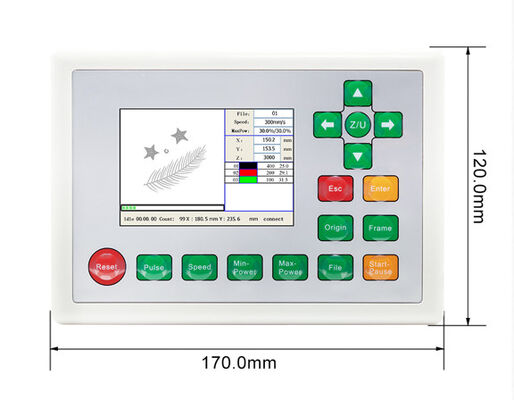

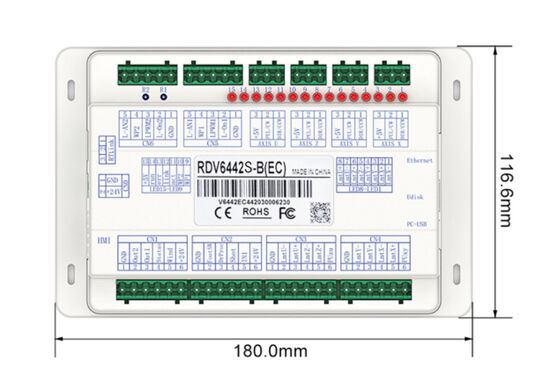

Size	Panel: L170W120H46.83mm Mainboard: L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI
