RUIDA RDV6442S CO2 Vision Controllers For Non Metal Cutting With Double Heads

Large Image : RUIDA RDV6442S CO2 Vision Controllers For Non Metal Cutting With Double Heads

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6442S

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	300340110
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDV6442S CO2 Vision Controllers For Non Metal Cutting With Double Heads

Description

Axis:	4	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Laser Channel:	2	Light Source:	LED Red And White Circular Light Source
Pecision:	+/.0.5 Pulse	Camera:	1.3 Milhon, 3 Milhon, 5 Milon Pixoels Are Opticnal
Encryption:	Support	Safety Protection:	Limit Protcetion,Water Protection,Cover Protection
Engraving Function:	Plan /slope Engreving	Software:	RDVisionV8,Coreldraw,Lightburn,Engravelab
Highlight:	RDV6442S CO2 Vision Controllers , Non Metal Cutting Vision Controllers , Double Heads CO2 Vision Controllers

RUIDA RDV6442S CO2 Vision Controllers For Non Metal Cutting With Double Heads

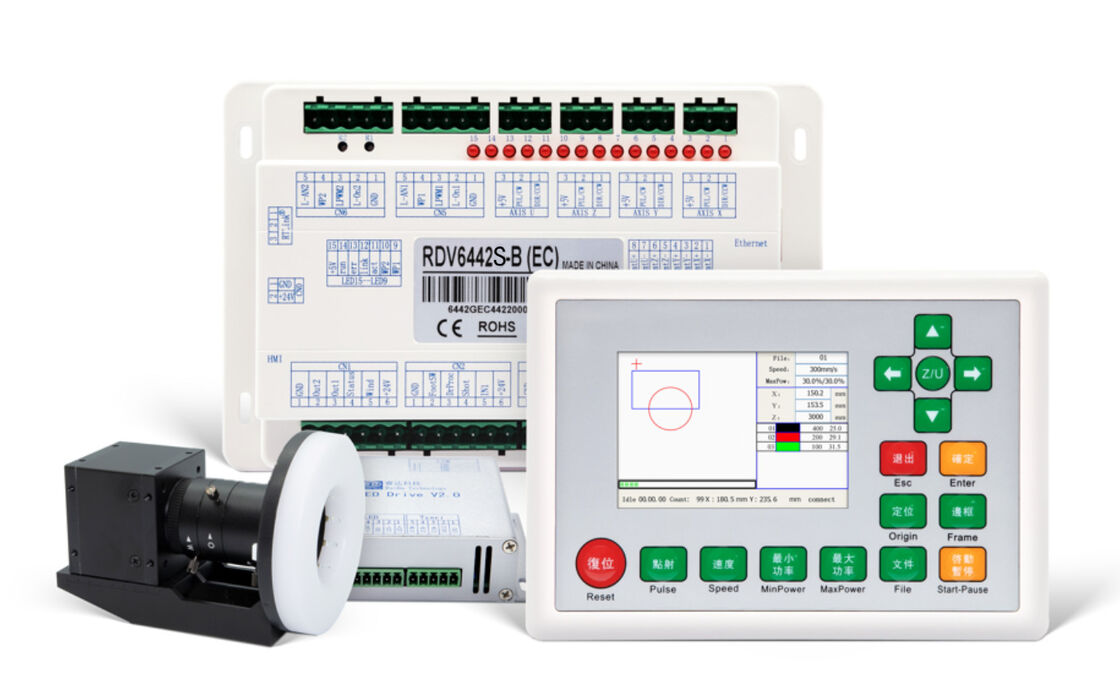

The RDV6442S is a sophisticated vision cutting control system that leverages the RDC6442S controller's capabilities, including feature recognition and MARK point positioning. It is equipped with a 3.5-inch color screen for easy operation and is capable of standalone operation, particularly effective in non-metal cutting for leather, fabric, signage, and 3C electronics. Our commitment to safety is evident in the CE, RoHS, and FCC certifications that all RDV6442S products have obtained, aligning with global safety production standards.

Key Features

A 3.5" color screen with refined design and digital keys for enhanced user interaction
Independent operation is possible with 128M of internal memory
Supports data exchange through USB/Ethernet and U disk, catering to various connectivity needs
Capable of managing 4 axes, dual laser interfaces, and multi-channel general IO for input/output, expanding operational capabilities
Includes a power failure recovery feature for laser cutting, maintaining work progress
Offers detailed previews of working hours, precise to the millisecond, for optimized scheduling
Facilitates direct modification of layer processing parameters from the control panel
Real-time display of the processing path, coordinate points, and a progress bar for immediate operational insights

Software RDVision (Free)

The software of RDVision was combined with image processing algorithms for feature recognition to complete the cutting work by manually block out the cutting contour.

Technical Specifications

Parameters	RDV6442S
Laser source	CO2 glass tube, CO2 RF tube, Fiber and UV lasers
Axis	4 axis, Pulse+ DIR signal, maximum Pulse frequency is 400KHZ
Laser channel	2
Precision	+ / - 0.5 pulse
Safety protection	Limit protection, Water protection, Cover protection
Firmware	Support the remote upgrade of mainboard and panel program
Camera	1.3 million, 3 million, 5 million pixels are optional. Lens of 8~12mm
Light source	LED red and white ring light source
Vision positioning	Feature recognition and MARK point positioning
Installment encryption	Support
Engraving	Plane engraving / slope engraving
Processing	Support resume processing after power failure
Software	RDVision
Language	Support simplified Chinese, traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Korean and other 12 languages

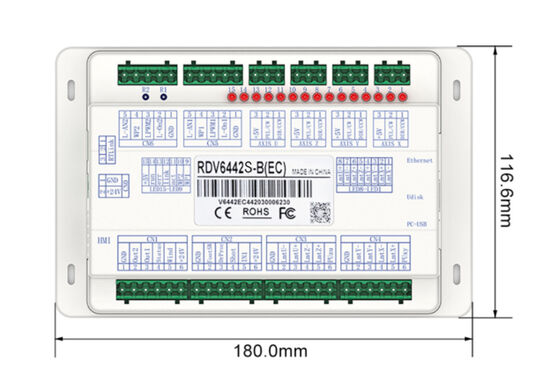

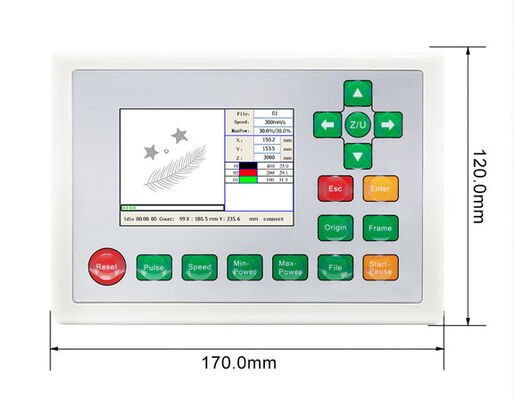

Size	Panel: L170W120H46.83mm Mainboard: L180W116.6H33.1mm

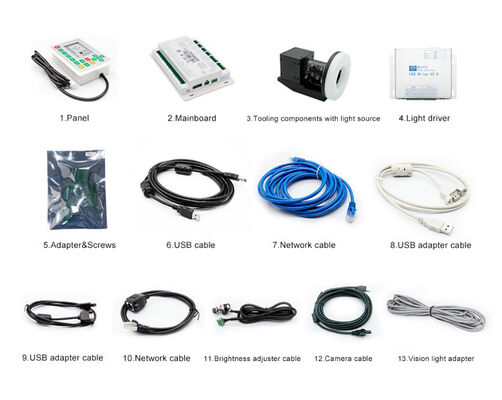

Accessories	Wireless handle, RD-APP and RD-WIFI

Why Choose Our RDV6442S Controller

Our 3.5" color screen and digital keys represent the forefront of user interface design, ensuring an intuitive and efficient operation
With standalone operation and ample onboard memory, our system provides the freedom to work without external dependencies while offering flexibility in data management
Our support for USB, Ethernet, and U disk ensures that you can easily integrate our system into your existing workflow, regardless of your preferred method of data transfer
Our system's ability to manage 4 axes, dual laser interfaces, and multi-channel general IO enhances the precision and versatility of your operations
The power failure recovery feature guarantees that your work will not be lost, providing peace of mind and ensuring productivity
Our system's millisecond-accurate working hour previews allow for detailed planning and efficient use of resources
