Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43

Large Image : Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	LFS-PM-T43

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43

Description

Brand:	RUIDA	Model:	LFS-PM-T43
Motion Controller:	RDC6332M	Motor:	Servo Motor And Stepping Motor
Control:	Z Axis	Laser Cutting:	Metal And Non-metal Mixed Cutting
Sampling Frequency:	1000Hz	Speed:	600mm/s
Detection Distance:	0.1mm-10mm	Dynamic Follow Accuracy:	≤0.1mm
Highlight:	Open Loop Capacitive Height Controller , LFS-PM-T43 Controller , Z Axis Height Controller

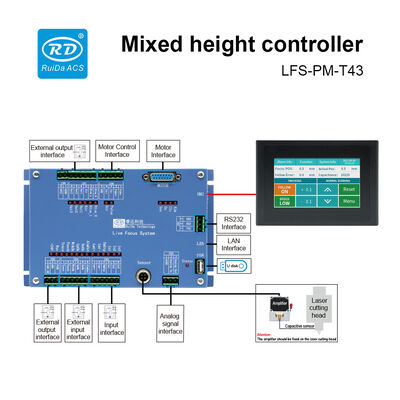

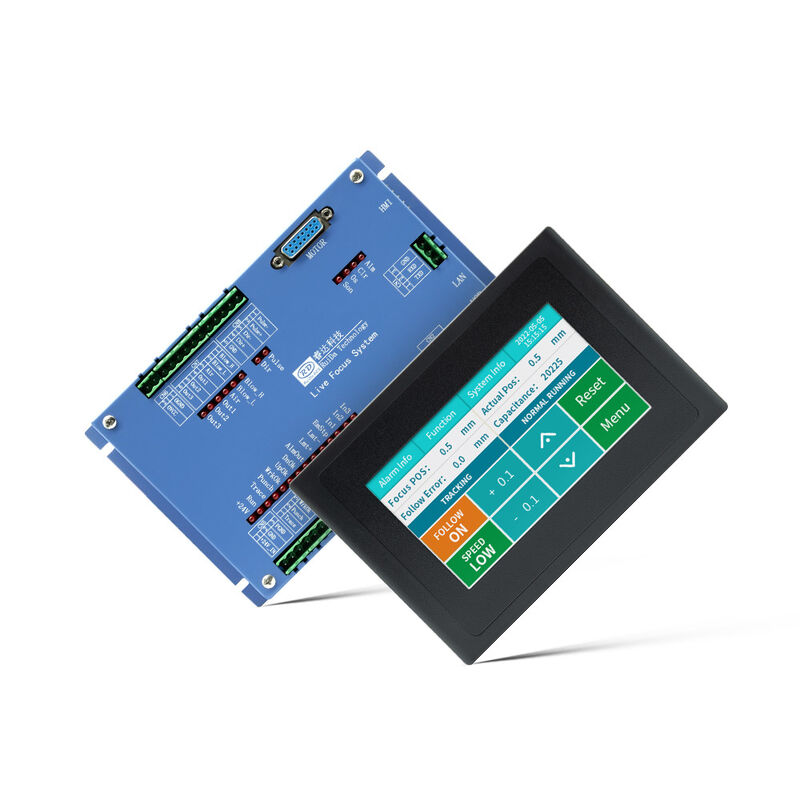

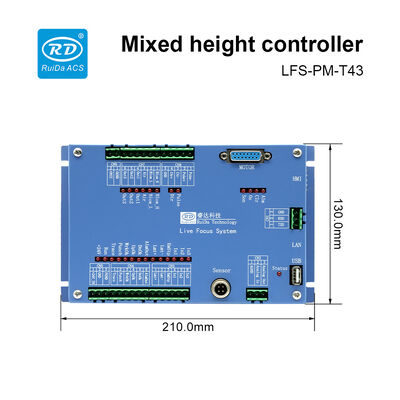

Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43

The Ruida Metal Open Loop Capacitive Height Controller LFS-PM-T43 delivers superior height control for precision cutting applications across various materials.

Application

The LFS-PM-T43 is designed for industries requiring cutting of both metal and non-metal materials. It combines intuitive operation with high-speed performance and real-time monitoring to enhance cutting precision and system efficiency.

Key Features

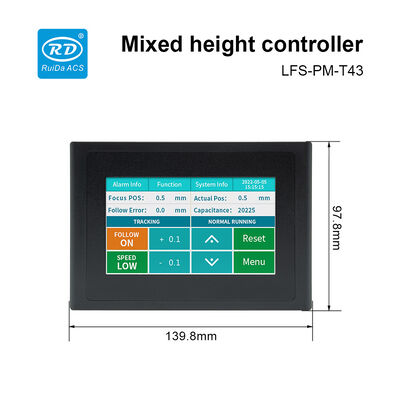

4.3" Industrial TFT Color Touch Screen: User-friendly interface with real-time status and data display.
Automatic Height Control: Precise adjustments for optimal cutting quality across mixed materials.
High-Speed Motion and Response: High-performance amplifier and anti-interference design for improved efficiency.
Professional Anti-Interference Design: Ensures stable operation in challenging industrial environments.
Real-Time Data Display: Continuous feedback on system status and cutting parameters.

Technical Specifications

Brand	RUIDA
Model	LFS-PM-T43
Touch Screen	4.3"
Real-time adjustment of focus	Support
Motor	Servo motor and stepping motor
Control output	1MHz
Laser cutting	Metal and non-metal mixed cutting
Sampling frequency	1000Hz
Control speed	600mm/s
Detection distance	0.1mm-10mm
Focal length adjusts step	0.1mm
Firmware upgrade	Online remote upgrade of U disk
