RDV6442G Vision Guided Cutting Control System With Multi Axis And Laser Interface

Large Image : RDV6442G Vision Guided Cutting Control System With Multi Axis And Laser Interface

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6442G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	300340110
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RDV6442G Vision Guided Cutting Control System With Multi Axis And Laser Interface

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	4	Light Source:	LED Red And White Circular Light Source
Laser Channel:	2	Camera:	1.3 Milhon, 3 Milhon, 5 Milon Pixoels Are Opticnal
Pecision:	+/.0.5 Pulse	Application:	Lathe And Turning Center
Input Power Supply:	DC24V 3A	Software:	RDVisionV8,Coreldraw,Lightburn,Engravelab
Highlight:	Vision Guided Cutting Control System , RDV6442G Vision Controller , Multi Axis Vision Controller

RDV6442G Vision Guided Cutting Control System With Multi Axis And Laser Interface

Product Description

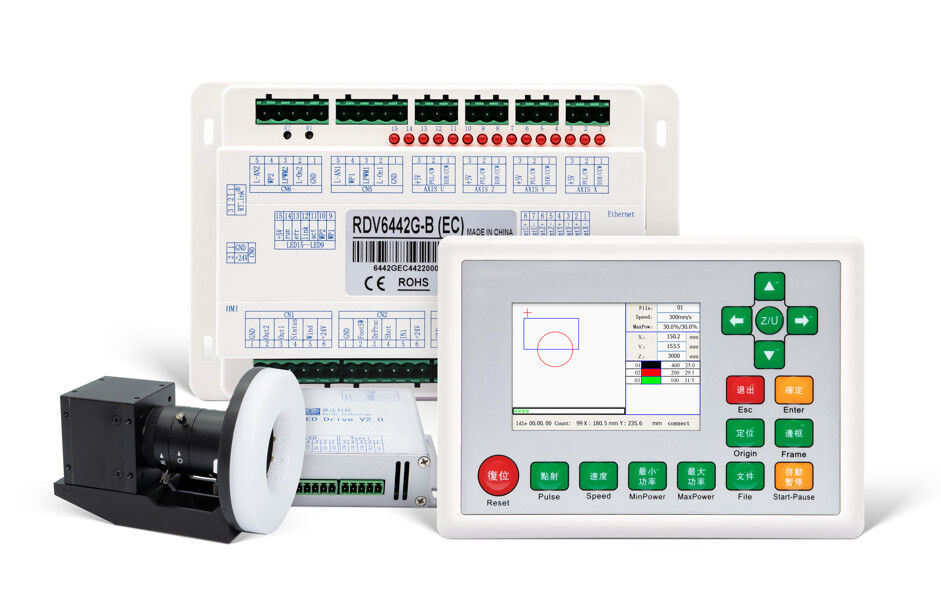

The RDV6442G represents a sophisticated vision-assisted cutting control system, enhancing the RDC6442G controller's features with advanced recognition and positioning functionalities. Featuring a 3.5" color screen, this system operates independently and is tailored for non-metal cutting, serving sectors like leather, textiles, signage, and 3C electronics. Our products adhere to the highest safety and production standards, with CE, RoHS, and FCC certifications.

Product Features

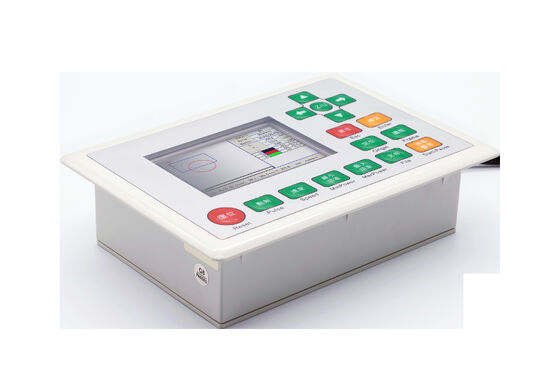

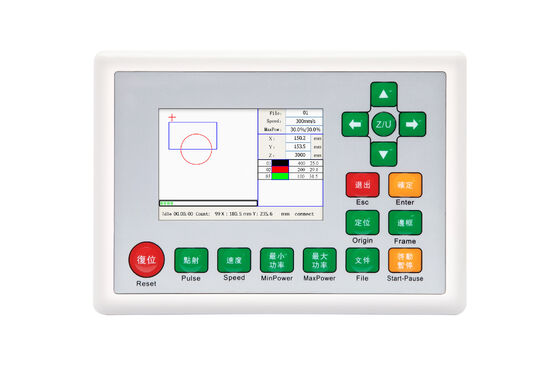

3.5" color screen with rich craftsmanship and digital keys
Standalone operation with 128MB onboard memory
Supports USB/Ethernet communication and U disk
4-axis support with dual laser interface and multi-channel general IO
Resume laser cutting after power failure
Working hours preview accurate to the millisecond
Modify processing parameters directly from panel
Real-time display of processing path, coordinate points and progress bar

Software RDVision (Free)

The RDVision software combines image processing algorithms for feature recognition to complete cutting work by manually blocking out the cutting contour.

Technical Parameters

Parameters	RDV6442G
Laser source	CO2 glass tube, CO2 RF tube, Fiber and UV lasers
Axis	4 axis, Pulse+DIR signal, maximum Pulse frequency 400KHZ
Laser channel	2
Precision	+/- 0.5 pulse
Safety protection	Limit protection, Water protection, Cover protection
Firmware	Support remote upgrade of mainboard and panel program
Camera	1.3 million, 3 million, 5 million pixels optional (8~12mm lens)
Light source	LED red and white ring light source
Vision positioning	Feature recognition and MARK point positioning
Installment encryption	Supported
Engraving	Plane engraving / slope engraving
Processing	Resume processing after power failure
Software	RDVision
Language	12 languages including Chinese, English, French, German, Russian, Spanish, Portuguese, Korean

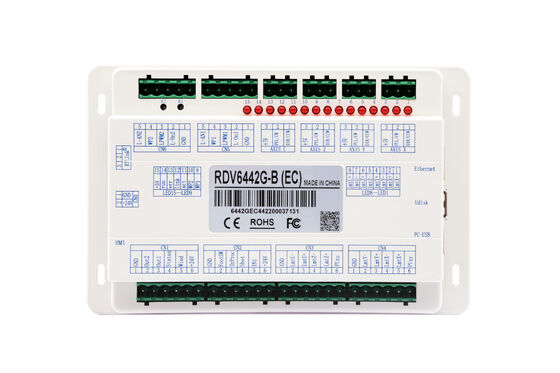

Size	Panel: 170×120×46.83mm; Mainboard: 180×116.6×33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Why Choose the RDV6442G System

Advanced Vision Guidance: Leverage cutting-edge vision technology for precision cutting
Enhanced Controller: Build on the robust RDC6442G controller for reliable performance
User-Friendly Interface: Benefit from a 3.5" color display for intuitive operations
Standalone Capability: Operate independently without external connections
Industry-Specific Solutions: Tailor-made for non-metal cutting across various industries
Certified Compliance: Ensure safety and quality with CE, RoHS, and FCC certified products
