CO2 Laser Vision Cutting Control System Controller RUIDA RDV6555G-NET

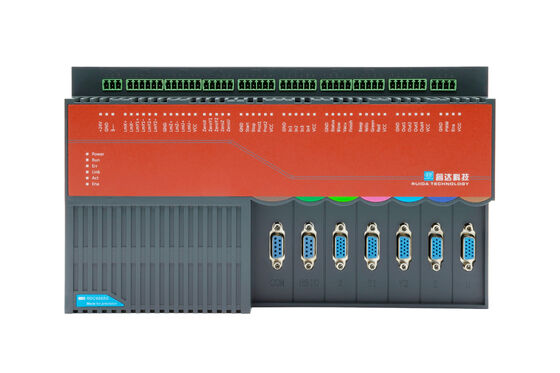

Large Image : CO2 Laser Vision Cutting Control System Controller RUIDA RDV6555G-NET

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6555G-NET

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

CO2 Laser Vision Cutting Control System Controller RUIDA RDV6555G-NET

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	5	Y Axis Double Drive:	Support Dual-drive Output And Have Synchronous Protection Function
Laser Channel:	1	Laser Control:	Support PSO, PSV, PSP, FSP Laser Control Methods
Language:	12	Cutting:	Mark Point Vision Positioning
Software:	LSWorks	Camera:	Network Interface Camera, 1.3 And 5 Megapixels Are Available
Highlight:	Laser Vision Cutting Control System , Vision Cutting Control System Controller , Laser Controller RDV6555G-NET

CO2 Laser Vision Cutting Control System Controller RUIDA RDV6555G-NET

The RDV6555G-NET is an advanced vision-guided cutting control system developed by Ruida Technology, building upon the robust foundation of the RDC6555G. This system incorporates a network camera and utilizes Mark point technology for image capturing, enhancing its precision in film cutting applications.

Key Features:

Standalone operation, integrated dual-drive motion control
Laser control supports PSO function
High precision laser control algorithm, supports full cut and half cut
Supports Mark point visual positioning cutting and array processing
Suitable for precision cutting of non-metal thin film materials

Software:

LSWorks (Free) supports PLT, DXF, AI, DST and other file formats with display and edit functions. Supports image file import and processing.

Technical Specifications:

Parameters	RDV6555G-NET
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive	Support dual-drive output with synchronous protection function
Laser control	Support PSO, PSV, PSP, FSP laser control methods
Axis	5
Laser channel	1
Communication	Ethernet, USB
Panel	5" color screen + keys (7" touch screen optional)
Feeding	Support visual array processing and roll to roll cutting
Camera	1.3MP and 5MP cameras available with 8-12mm lenses

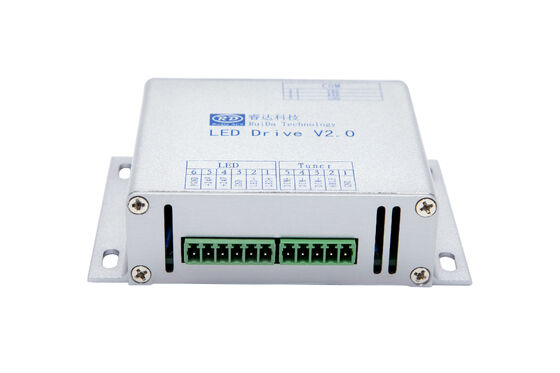

Light source	LED red and white circular light source
Cutting	Mark point vision positioning cutting
Encryption	Supported
Onboard clock	Supported
Firmware	Supports remote upgrade of mainboard and panel program
Software	LSWorks
Language	13 languages including English, Chinese, Japanese, etc.
Size	Panel: 202×145×42.1mm Mainboard: 270×157×55mm

Applications:

1. Precision cutting of non-metal thin film materials, ceramic and high molecular materials including:

GDF film
Peep-proof protection film
Lens film
Handwriting film
Polarizing film
Touch screen and flexible OLED

2. Suitable for precision cutting of film, ceramic and other polymer materials.
