RUIDA RDV6555G-NET CO2 Vision Laser Controller Accurate Cutting Control System

Large Image : RUIDA RDV6555G-NET CO2 Vision Laser Controller Accurate Cutting Control System

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6555G-NET

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDV6555G-NET CO2 Vision Laser Controller Accurate Cutting Control System

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	5	Y Axis Double Drive:	Support Dual-drive Output And Have Synchronous Protection Function
Laser Channel:	1	Laser Control:	Support PSO, PSV, PSP, FSP Laser Control Methods
Language:	12	Feeding:	Visual Array Processing And Roll To Roll Cutting
Software:	LSWorks	Cutting:	Mark Point Vision Positioning
Highlight:	RDV6555G-NET Vision Laser Controller , Accurate Vision Laser Controller , Accurate Cutting Control System

RUIDA RDV6555G-NET CO2 Vision Laser Controller Accurate Cutting Control System

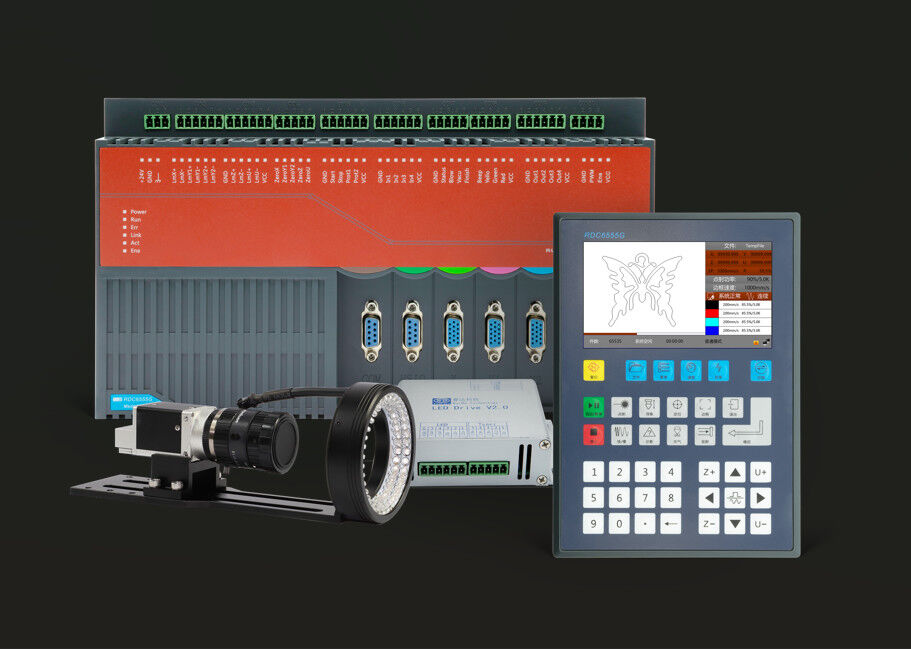

The RDV6555G-NET, based on the RDC6555G by Ruida Technology, is a cutting control system enhanced with a network camera for precise image capture using Mark point technology. It offers improved hardware stability, a variety of motion control schemes, and strong resistance to high voltage and electrostatic interference. Featuring a 5-inch LCD interface, the RDV6555-NET provides an intuitive operation experience and is well-suited for accurate cutting of films and other materials.

Key Product Features:

Independent Operation: Features integrated dual-drive motion control for standalone functionality
PSO Laser Control: Incorporates PSO function for laser control stability
Precision Laser Algorithms: Utilizes high-precision algorithms for full and half-cut capabilities
Visual Positioning and Processing: Offers support for Mark point visual positioning and array processing
Non-Metal Thin Film Cutting: Designed for precise cutting of non-metal thin film materials

Software LSWorks (Free)

Support PLT, DXF, AI, DST and other file formats, display and edit functions, support image file import and processing.

Technical Parameters:

Parameters	RDV6555G-NET
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive	Support dual-drive output and have synchronous protection function
Laser control	Support PSO, PSV, PSP, FSP laser control methods
Axis	5
Laser channel	1
Communication	Ethernet, USB

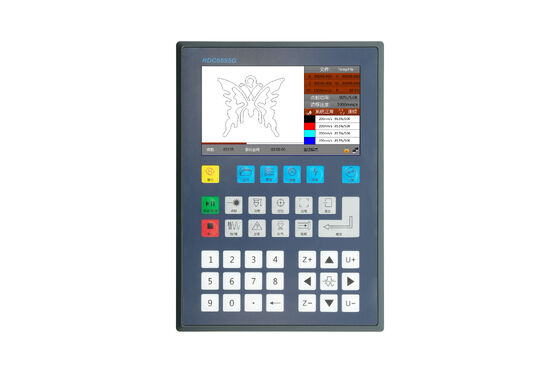

Panel	5" color screen + keys and 7" touch screen is optional
Feeding	Support visual array processing and roll to roll cutting

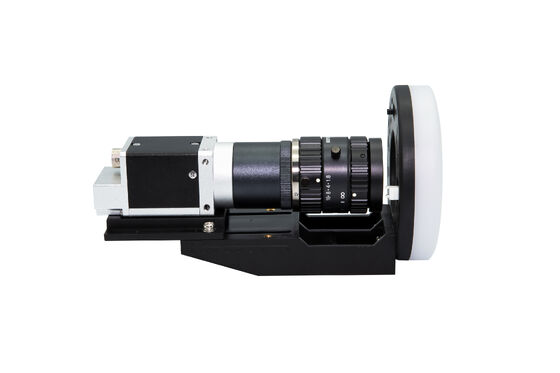

Camera	Cameras of 1.3 and 5 megapixels are available. Lens of 8~12mm are available
Light source	LED red and white circular light source
Cutting	Mark point vision positioning cutting
Engraving	Support
Encryption	Support
Onboard clock	Support
Firmware	Support the remote upgrade of mainboard and panel program
Software	LSWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

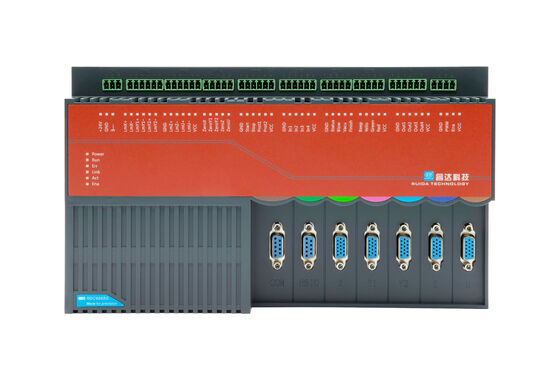

Size	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm

Why Choose Us:

Self-Contained Operation
Advanced Laser Control
High-Precision Algorithms
Visual Positioning and Array Processing
Specialized for Non-Metal Films
Efficiency and Precision

Application Area:

It is suitable for precision cutting, such as film cutting, ceramic and other polymer materials cutting.
