5 Axis CO2 Vision Laser Controller Cutting Control System For Non Metal Thin Film Materials

Large Image : 5 Axis CO2 Vision Laser Controller Cutting Control System For Non Metal Thin Film Materials

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6555G-NET

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

5 Axis CO2 Vision Laser Controller Cutting Control System For Non Metal Thin Film Materials

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	5	Y Axis Double Drive:	Support Dual-drive Output And Have Synchronous Protection Function
Laser Channel:	1	Laser Control:	Support PSO, PSV, PSP, FSP Laser Control Methods
Language:	12	Cutting:	Mark Point Vision Positioning
Software:	LSWorks	Camera:	Network Interface Camera, 1.3 And 5 Megapixels Are Available
Communication:	Ethernet, USB	Panel:	5''color Screen + Keys Or 7''touch Screen
Highlight:	5 Axis Vision Laser Controller , Non Metal Vision Laser Controller , Laser Cutting Control System

5 Axis CO2 Vision Laser Controller Cutting Control System For Non Metal Thin Film Materials

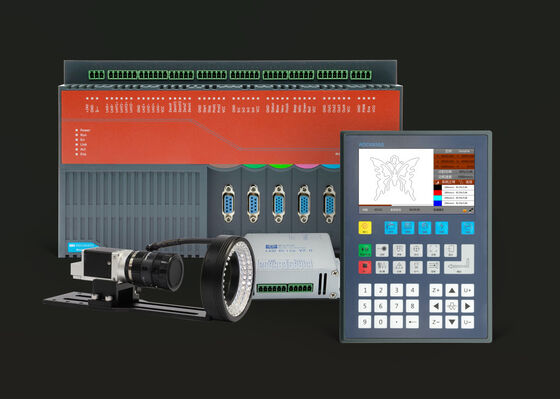

RUIDA RDV6555G-NET CO2 Laser Vision Controller The Cutting Control System For Non-Metal Thin Film Materials

Description of RDV6555G-NET

The RDV6555G-NET from Ruida Technology is an upgraded version of the RDC6555G, equipped with a network camera for capturing images through Mark point technology. It ensures high hardware stability, advanced motion control, and protection against high voltage and static. With a user-friendly 5-inch LCD, the RDV6555-NET is optimized for precision cutting tasks, delivering accuracy and efficiency in various material processing applications.

Product Features

Self-Contained System: Offers integrated dual-drive motion control for standalone operations.
Advanced Laser Functionality: Includes PSO function for enhanced laser control.
Precise Cutting Capabilities: Equipped with algorithms for accurate full and half-cut operations.
Mark Point Technology: Supports visual positioning and array processing with Mark point technology.
Specialized for Non-Metal Films: Ideal for precision cutting of non-metallic thin film materials.

Software LSWorks (Free)

Support PLT, DXF, AI, DST and other file formats, display and edit functions, support image file import and processing.

Technical Parameters

Parameters	RDV6555G-NET
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive	Support dual-drive output and have synchronous protection function
Laser control	Support PSO, PSV, PSP, FSP laser control methods
Axis	5
Laser channel	1
Communication	Ethernet, USB

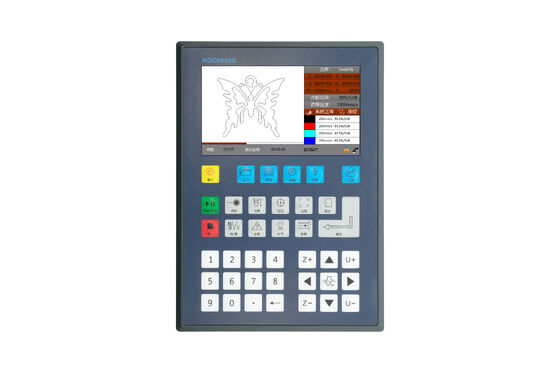

Panel	5" color screen + keys and 7" touch screen is optional
Feeding	Support visual array processing and roll to roll cutting

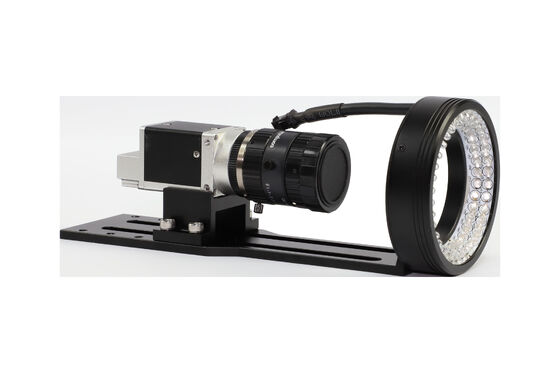

Camera	Cameras of 1.3 and 5 megapixels are available. Lens of 8~12mm are available
Light source	LED red and white circular light source
Cutting	Mark point vision positioning cutting
Engraving	Support
Encryption	Support
Onboard clock	Support
Firmware	Support the remote upgrade of mainboard and panel program
Software	LSWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

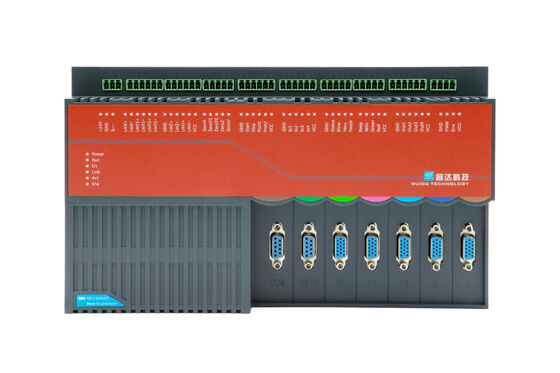

Size	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm

Application

Suitable for precision cutting of non-metal thin film materials, ceramic and high molecular materials, including GDF film, peep-proof protection film, lens film, handwriting film, polarizing film, touch screen and flexible OLED, etc.
