Ruida RDD6616U-DFM 16-Axis Vision Knife Cutting Controller

Large Image : Ruida RDD6616U-DFM 16-Axis Vision Knife Cutting Controller

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDD6616U-DFM

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

Ruida RDD6616U-DFM 16-Axis Vision Knife Cutting Controller

Description

Brand:	RUIDA	Model:	RDD6616U-DFM
Axis:	16	Input And Output:	43/43
Panel:	7” Touch Screen, Support Parameter Modification, Static Preview And Dynamic Display Of Graphics	Communication:	Ethernet, USB And WIFI (optional)
Tool:	Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning	Feeding:	Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously；repeated Multi-template Feeding
Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit	Software:	RDVision,RDCMarkVision ,RDWorksV8、RDImage
Highlight:	Visual Image Knife Cutting System , RDD6616U-DFM Cutting System , Large Format Cutting Laser Controller

Ruida RDD6616U-DFM 16-Axis Vision Knife Cutting Controller

Product Specifications

Attribute	Value
Brand	RUIDA
Model	RDD6616U-DFM
Axis	16
Input and output	43/43

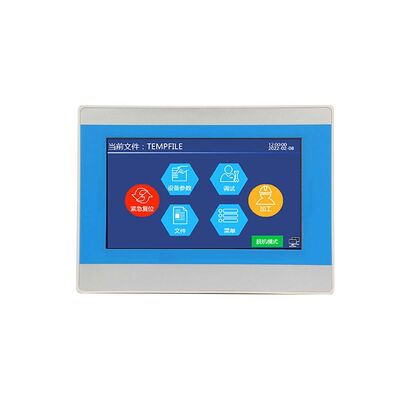

Panel	7" touch screen, support parameter modification, static preview and dynamic display of graphics
Communication	Ethernet, USB and WIFI (optional)
Tool	vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding	Support X/Y/U axis feeding independently or Y and U axes feeding synchronously; repeated multi-template feeding
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Software	RDVision, RDCMarkVision, RDWorksV8, RDImage

Product Overview

The RDD6616U-DFM is a dual coordinate system tool cutting controller with tool direction following control function independently developed by Ruida Technology. This advanced controller integrates multiple processing methods including vibrating cutter, circular cutter, milling cutter, pressing wheel and other tools.

Key Features

Full Functionality: Supports all functions of the standard controller
High Precision Positioning: Ensures precise positioning for various applications
Feature Recognition: Supports recognition and positioning of feature points and auxiliary mark points
Vision Cutting: Enables mark point vision cutting for accurate operations
Irregular Materials Handling: Allows matching and cutting of irregular materials
Projection Cutting: Supports projection cutting for enhanced flexibility
Dual Coordinate Systems: Supports asynchronous processing in double beams or double cantilevers mode

Technical Advantages

Our system offers comprehensive functionality with full support for standard controller functions, ensuring seamless integration and operation. The high precision positioning technology enhances accuracy of feature recognition and mark point positioning, significantly reducing operational errors.

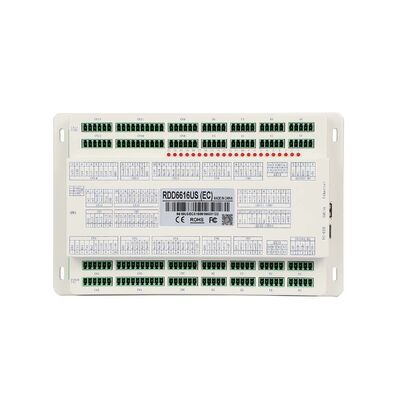

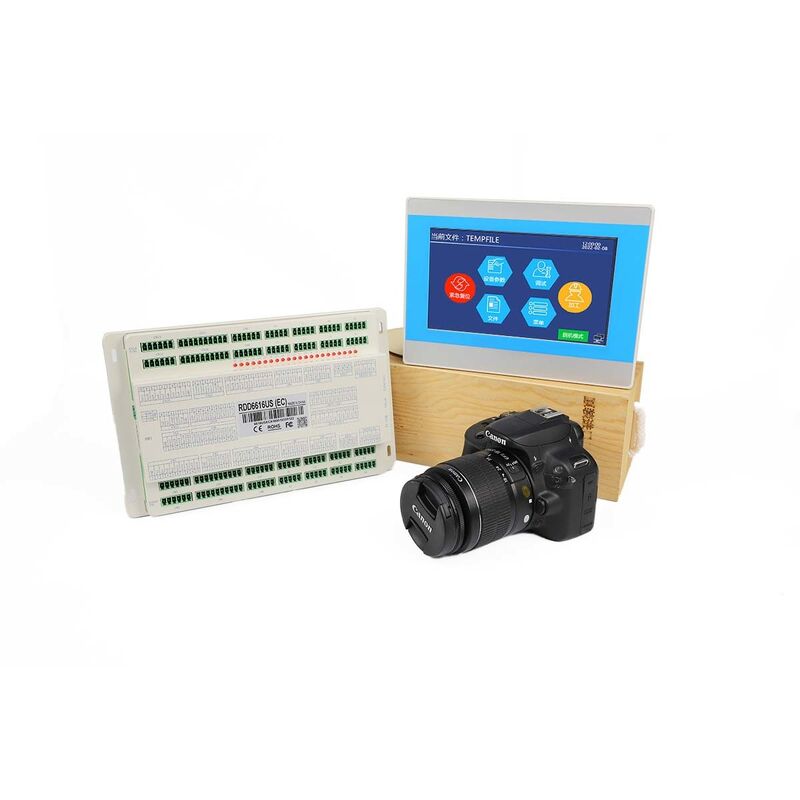

Product Images
