Ruida RDC6612U-DFM CO2 Vision Laser Controller For Large Format Cutting

Name: Ruida RDC6612U-DFM CO2 Vision Laser Controller For Large Format Cutting
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDD6612U-DFM
Availability: InStock

All Products

CO2 Laser Controller
(74)

Vision Laser Controller
(22)

Fiber Laser Cutting Controller
(16)

Laser Cutting Machine Controller
(3)

Oscillating Knife Cutting Controller
(16)

Laser Height Controller
(22)

Laser Marking Controller
(15)

Laser Controller Board
(38)

Laser Welding Controller
(7)

Laser Cleaning Controller
(3)

I'm Online Chat Now

Ruida RDC6612U-DFM CO2 Vision Laser Controller For Large Format Cutting

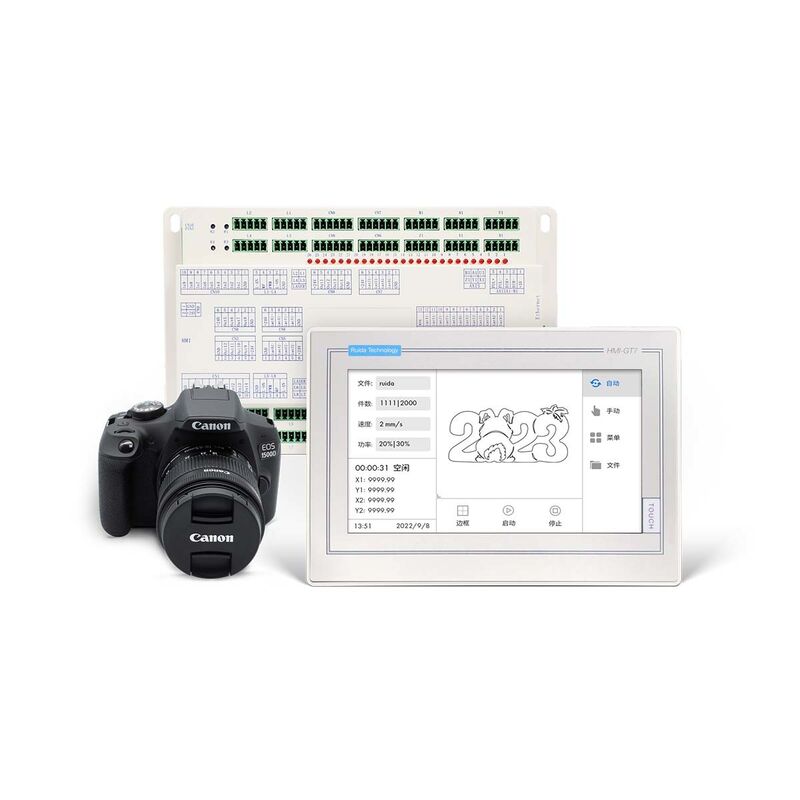

Large Image : Ruida RDC6612U-DFM CO2 Vision Laser Controller For Large Format Cutting

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDD6612U-DFM

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDC6612U-DFM CO2 Vision Laser Controller For Large Format Cutting

Description

Brand:	RUIDA	Model:	RDD6612U-DFM
Axis:	12	Laser Channel:	8
Laser Source:	CO2 Glass Tube,CO2 RF Tube,and UVlasers	Onboard Clock:	Support (support The Modification Of Time)
Firmware:	Remote Upgrade Of Panel And Mainboard Program	Camera:	18 Megapixels SLR Camera
Cutting:	Ordinary Cutting；Large-format Visual Cutting,Mark Point Vision And Projection Cutting	Software:	RDWorksV8,UnionLaser,RDVisionWorks
Highlight:	Cutting Vision Laser Controller , RDC6612U Vision Laser Controller , CO2 Laser Synchronous Cutting Controller

Ruida RDC6612U-DFM CO2 Vision Laser Controller For Large Format Cutting

RDC6612U-DFM CO2 Laser Vision Controller for Large Graphic Processing Production

Product Specifications

Attribute	Value
Brand	RUIDA
Model	RDD6612U-DFM
Axis	12
Laser Channel	8
Laser source	CO2 glass tube, CO2 RF tube, and UV lasers
Onboard clock	Support (support the modification of time)
Firmware	Remote upgrade of panel and mainboard program
Camera	18 megapixels SLR camera
Cutting	Ordinary cutting; Large-format visual cutting, Mark point vision and projection cutting
Software	RDWorksV8, UnionLaser, RDVisionWorks

Product Overview

The RDC6612U(-DFM) system by Ruida Technology is a cutting-edge dual X/Y coordinate controller designed for high-performance cutting applications. The RDC6612U provides standard dual-coordinate control, while the RDC6612U-DFM adds advanced panoramic vision for enhanced precision and control.

Using dual-coordinate technology, this system enables asynchronous cutting with double beams or cantilevers, supporting up to four laser heads per XY coordinate system for synchronized operation. The RDC6612U(-DFM) also features automatic collision avoidance and an optimized graphics management algorithm for balanced task distribution, improving efficiency.

Ideal for large-scale, high-speed processing, this system is perfect for industries such as garment, leather, and fabric, offering an optimal solution for large graphic processing and high-volume production.

Key Features

Dual X/Y coordinate system control for precise operation
RDC6612U-DFM includes panoramic vision for enhanced functionality
Enables asynchronous cutting with double beams or double cantilevers
Each coordinate system supports up to 4 laser heads for synchronous cutting
Automatic collision prevention for safer operation
Optimized graphics management and task distribution algorithm
Ideal for garment, leather, and fabric industries

Technical Advantages

Advanced Dual-Coordinate Technology: Supports precise and flexible cutting with dual X/Y coordinate control
Panoramic Vision Integration: Enhances accuracy and control for sophisticated cutting tasks
Synchronous Cutting: Supports up to 4 laser heads per coordinate system
Automatic Collision Prevention: Safeguards equipment during operation
Optimized Task Distribution: Intelligent algorithm balances workloads
Versatile Applications: Perfect for large graphics and high-volume processing
Cost-Effective: Delivers high performance for both small and large-scale operations

Product Images

Front View

Side View

Connection Ports

Operation View

Control Panel

System Diagram
