CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller

CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller
CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller

Large Image :  CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDV6555G-NET
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller

Description
Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers Y Axis Double Drive: Support Dual-drive Output And Have Synchronous Protection Function
Laser Control: Support PSO, PSV, PSP, FSP Laser Control Methods Axis: 5
Laser Channel: 1 Communication: Ethernet, USB

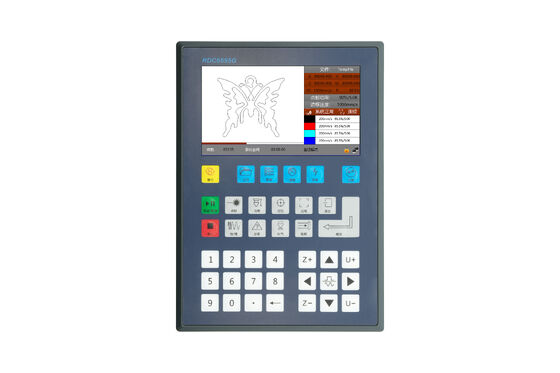

Panel: 5” Color Screen + Keys And 7” Touch Screen Is Optional Feeding: Support Visual Array Processing And Roll To Roll Cutting

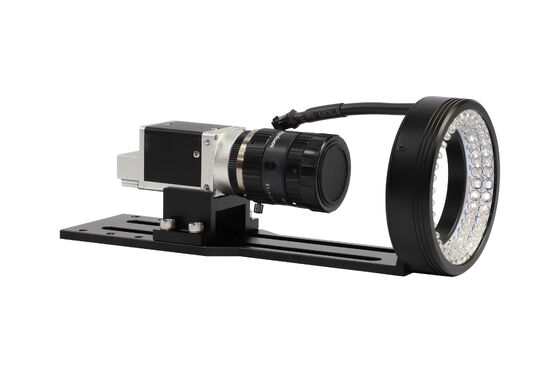

Camera: Cameras Of 1.3 And 5 Megapixels Are Available. Light Source: LED Red And White Circular Light Source
Cutting: Mark Point Vision Positioning Cutting Engraving: Support
Encryption: Support Onboard Clock: Support
Firmware: Support The Remote Upgrade Of Mainboard And Panel Program Software: LSWorks
Language: Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese Size: Panel: L202mm*W145mm*H42.1mm Mainboard: L270mm*W157mm*H55mm
Highlight:

Vision Laser Controller RDV6555G-NET

,

Precision Vision Laser Controller

,

Precision Laser Cutter Controller

CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller
Product Attributes
Attribute Value
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive Support dual-drive output and have synchronous protection function
Laser control Support PSO, PSV, PSP, FSP laser control methods
Axis 5
Laser channel 1
Communication Ethernet, USB
Panel 5" color screen + keys and 7" touch screen is optional
Feeding Support visual array processing and roll to roll cutting
Camera Cameras of 1.3 and 5 megapixels are available
Light source LED red and white circular light source
Cutting Mark point vision positioning cutting
Engraving Support
Encryption Support
Onboard clock Support
Firmware Support the remote upgrade of mainboard and panel program
Software LSWorks
Language 13 languages including English, Chinese, French, Russian, etc.
Size Panel: L202mm*W145mm*H42.1mm Mainboard: L270mm*W157mm*H55mm
Product Description

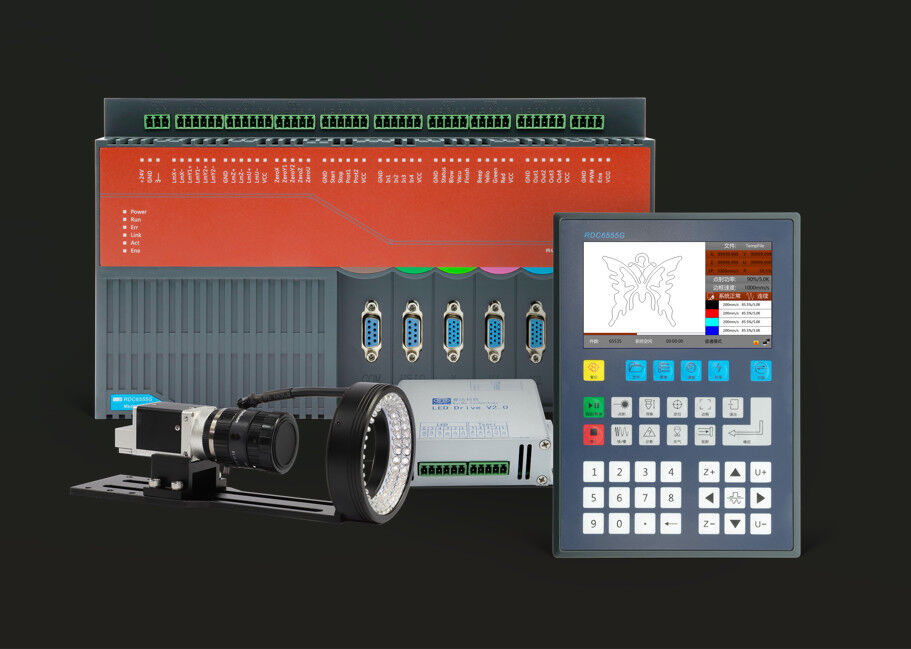

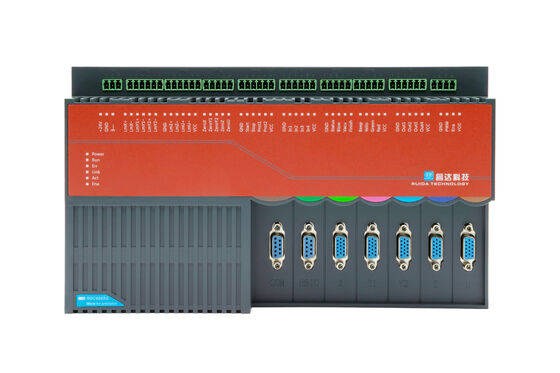

The RDV6555G-NET is an advanced vision-guided cutting control system developed by Ruida Technology, building upon the robust foundation of the RDC6555G. This system incorporates a network camera and utilizes Mark point technology for image capturing, enhancing its precision in film cutting applications. It boasts improved hardware stability, a rich array of motion control design schemes, and superior resistance to high voltage and electrostatic interference, ensuring reliable operation in various industrial environments. The human-machine operating system, based on a 5-inch LCD, offers a user-friendly interface coupled with powerful functionality, making it an optimal choice for high-precision cutting tasks.
Key Features
  • Self-Contained System: Offers integrated dual-drive motion control for standalone operations
  • Advanced Laser Functionality: Includes PSO function for enhanced laser control
  • Precise Cutting Capabilities: Equipped with algorithms for accurate full and half-cut operations
  • Mark Point Technology: Supports visual positioning and array processing with Mark point technology
  • Specialized for Non-Metal Films: Ideal for precision cutting of non-metallic thin film materials
CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller 0
Software: LSWorks (Free)
Supports PLT, DXF, AI, DST and other file formats with display and edit functions. Includes image file import and processing capabilities.
CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller 1
Applications
Suitable for precision cutting of non-metal thin film materials, ceramic and high molecular materials, including:
  • GDF film
  • Peep-proof protection film
  • Lens film
  • Handwriting film
  • Polarizing film
  • Touch screen and flexible OLED
CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller 2 CO2 Vision Laser Controller Ruida RDV6555G-NET Precision Laser Cutter Controller 3
